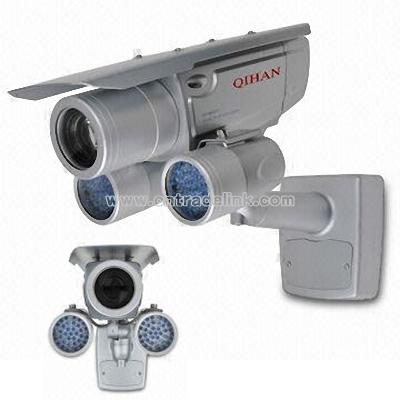

Star light sensitivity: 0.05 lux OSD menu with various functions Digital noise reduction processing High resolution: color 540TVL Flicker prevention and power sync design Voltage: 10 to 240V AC (optional) Built-in 5 to 50mm Japan VF lens IP66 standard moisture protection, dust prevention, self-cleaning design IR range: up to 100m optional Working temperature under -30°C (optional) Sensor: Hitachi high-definition Resolution: 540TVL Video format: PAL/NTSC S/N ratio: ≥60dB Minimum illumination: 0.05Lux Mirror: vertical, horizontal, rotation Image adjustment Color: black Motion detection IR range: 100m (optional) Power: 24V AC Suffix +P: 110 to 240V AC (optional) Lens: 5 to 50mm (auto lens) Operating environment: -10 to 50 degrees Operating temperature: -30 to 50 degrees (optional) Dimensions: 395 x 245 x 145mm Weight: 2,600g Water-resistant level: IP66

Image sensor: 1/4-inch Sony super HAD CCD Horizontal resolution: 480TVL Signal system: PAL/NTSC Lens: 10x zoom and F = 3.78 to 37.8mm Minimum illumination: 0.5 lux S/N ratio: ≥52dB IR distance: 40 to 60m LED wavelength: 56 pieces, 850nm IR LED Average lifespan: up to 20,000 hours Viewing angle: 45° Waterproof: IP65 Video output: composite video output (1.0Vp-p, 75Ω) Focus mode: automatic Manual: OSD menu Power supply: 12V DC ±10%, 500mA Operating temperature: -20 to 50°C, 95% RH (maximum)

Camera and brackets incorporate and cable conceal in side of the bracket Protection rate: IP66 Image sensor: 1/3-inch Sony super HAD CCD Horizontal resolution: 480TVL Minimum illumination: 0.1 lux Pixels: PAL: 752 x 582 NTSC: 768 x 494 Signal system: PAL/NTSC IR distance: 20m LED: 23 pieces Lens: 3.6/6/8mm lens White balance: auto Scanning systems: PAL: 625TVL, 50 fields/second NTSC: 525TVL, 60 fields/second Electronic shutter time (auto): PAL: 1/50 to 100,000 seconds NTSC: 1/60 to 1/100,000 seconds Synchronization system: internal S/N ratio: ≥48dB (AGC off) Operating temperature: -10 to 50 degree Celsius, 95% RH (maximum) Storage temperature: -20 to 60 degree Celsius, 95% RH (maximum) Weight: 400g Dimensions: 125 x 67 x 69mm Power supply: 12V DC, ±10%, 300mA

CCD type: 1/3-inch Sony CCD Pixels: PAL: 795 x 596 NTSC: 811 x 508 Horizontal resolution: 540TVL Color: white Scanning system: PAL or NTSC Level synchronization frequency: PAL: 15.625kHz NTSC: 15.734kHz Scanning system: 2:1 deinterlacing S/N ratio: 48dB Electronic shutter: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds Gamma correction: 0.45 Video output: 1Vp-p and 75Ω AGC: automatic Power supply: 12V DC (±10%) Current: 150mA Carton size: 590 x 360 x 200mm LED: 12-piece of 10mm IR LED IR distance: 80m Manual varifocal lens: 9 to 22mm Dimensions: 672 x 335 x 263mm Weight: 0.26kg Operating temperature: -10 to 45°C

AVC-67F CCTV water-resistant camera with 20m IR range 1/3-inch Sharp CCD weatherproof IR camera Resolution: 520TVL 3.5/6/8mm optional Built-in 26 IR LEDs (day/night IR camera) 20m IR range Minimum illumination: 0 lux (IR on) Sync: internal TV system: PAL/NTSC Power 12V DC Integrated bracket Weatherproof rate: IP66 S/N ratio: ≥60dB Weight: 550g Dimensions: 127 x 66.5 x 62mm

Image sensor: 1/3-inch Sony color CCD Pixel: PAL: 752 x 582 NTSC: 768 x 494 Horizontal resolution: 600TVL Signal system: PAL/NTSC Lens: 3.6/6mm lens option S/N ratio: more than 48dB Minimum illumination: 0 lux Shutter speed: 1/50 (1/60) - 1/100,000 seconds White balance: automatic tracking Video output: 1Vp-p, 75 ohms, BNC Power consumption: DC 12V IR wavelength: 850nm IR distance: 30m IR LED: 24pcs ф5mm IR LEDs Operating temperature: -10 to +50℃

IR long distance camera Water-resistant housing and elegant-looking design IR power-on, color to B/W automatically at night 33 LEDs, valid distance: 35 to 50m Unique double glass + metal ring reduce interference and foggy problem Effectively prevent reflection problem K-IC-20L1: 1/4 Sharp 420TVL 1Lux K-IC-24L1: 1/3 Sony 420TVL 1Lux K-IC-25L1: 1/3 Sony 480TVL 0.1Lux K-IC-27L1: 1/3 Sony 520TVL 0.1Lux

CCTV water-resistant Camera Image sensor: 1/3-inch Sony CCD Resolution: 540TV lines Video format: PAL/NTSC S/N ratio: ≥60dB Minimum illumination: 0.00045Lux/F1.2 (sense up on) Maximum sense up: 32x Mirror: vertical, horizontal and rotation Electronic amplification: 8x Image adjustment: yes Day/night vision: yes Motion detection: yes Power: 24 and 110 to 240V AC (optional) Lens: 5 to 50mm (auto lens) Waterproof level: IP66 Operating temperature: -10 to +50°C Dimensions: 395 x 245 x 130mm Weight: 2,100g

Display: 1/3-inch Sony CCD, 480TVL 6mm IR lens Exquisite design, precise circuit and structure incarnated the highest technology Aluminum structure, all-sealed waterproof body sun shield used for outdoor supplied Applicable in all dark places and indoor or outdoor Signal system: PAL/NTSC Pixels: PAL: 500 x 582 NTSC: 510 x 492 Minimum illumination: 0.5 lux/F1.2 (LED off) and 0 lux (LED on) Day/night automatically switch: illumination 3 to 5 lux/F1.2 White balance: automatic S/N ratio: more than 52dB Electronic shutter: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds AGC/BLC: automatic Lens: built-in 6mm (or 3.6, 8, 12, and 16mm lens optional) IR LED: 30 units, 850nm IR series distance: 25 to 30m IR LED lifespan: 100,000 hours Gamma: 0.45 Synchronization mode: internal Video output: composite video output (1.0Vp-p, 75Ω terminated) Power supply: 12V DC ±10% Operating temperature: -10 to +50?C Humidity: 95% RH (maximum) Body: aluminum Dimensions: 123 x 63 x 63mm Weight: 950g

CCTV water-resistant camera 1/3-inch Sharp CCD weatherproof IR camera Horizontal resolution: 520TVL 3.5 to 8mm varifocal lens or 16mm fixed lens Built-in 48 IR LED (day/night IR camera) 40m IR range Minimum illumination: 0 lux (IR on) Synchronization: internal TV system: PAL/NTSC Power: 12V DC Integrated bracket Weatherproof rate: IP66 S/N rate: ≥60dB Weight: 1,271g Dimensions: 152 x 88 x 86mm

Image sensor: 1/3-inch Sony super HAD CCD Effective pixels: PAL: 752 x 582 NTSC: 768 x 494 Horizontal resolution: 480TVL Lens: 4 to 9mm varifocal auto iris lens Signal system: PAL/NTSC S/N ratio: more than 48dB Minimum illumination: 0 lux (IR LED on) Shutter speed: 1/50 (1/60) to 1/100,000 seconds White balance: auto tracking white balance Video output: 1Vp-p, 75 ohms and BNC Power consumption: 12V DC, 120mA (when IR LEDs turn on, maximum current is 1A) IR wavelength: 850nm IR distance: 40 to 45m IR LED: 42 pieces Φ 5mm IR LED Operating temperature: -10 to 50 degree Celsius

Water-resistant camera/weather-resistant camera 40m IR range 1/3-inch Sony CCD weather-resistant IR camera 420TVL 3.5 to 8mm varifocal auto iris lens Diamond coating lens Built-in 54 IR LEDs (Day/Night IR camera) 40M IR range Minimum illumination: 0Lux(IR on) Synchronization: internal TV system: PAL/NTSC Power: 12V DC Duralumin enclosure and bracket S/N rate: ≥50dB IP55 standard, can work in harsh environment Weight: 1,200g Dimensions (L x W x H): 160 x 100 x 297mm

CCD type: color Sharp 1/3-inch Pixels (H x V): PAL: 500 x 582 NTSC: 510 x 492 Scanning system: PAL and NTSC Horizontal resolution: 420TVL Minimum illumination: 0 lux/F1.2 S/N ratio: more than 48dB Video output: 1.0Vp-p, 75Ω Auto AGC, white balance and backlight compensation Exposure mode: EE Electronic shutter: PAL: 1/50 to 100,000 seconds NTSC: 1/60 to 1/100,000 seconds Gamma correction: 0.45 Internal synchronization IR view distance: 25 to 30m Lens: 6 and 8mm Power supply: 12V DC Operating temperature: -20 to +50 degree Celsius

Image sensor: 1/3-inch Sony super HAD CCD Pixels PAL: 752 x 582 NTSC: 768 x 494 Horizontal resolution: 600TVL Signal system: PAL/NTSC Lens 3.6/6mm/F1.2 S/N ratio: more than 48dB Minimum illumination: 0 lux (IR LED on) Shutter speed: 1/50 (1/60) - 1/100,000 seconds White balance: automatic tracking white balance Video output: 1Vp-p, 75 ohms, BNC Power consumption: DC 12V, 120mA (when IR LEDs turn on, maximum current is 400mA) IR wavelength: 850nm IR distance: 10 - 15m IR LED: 12pcs ф5mm IR LEDs Operating temperature: -10 to +50℃

14-bit dual channel supper wide dynamic range DSP All components from Japan 3D DNR (digital noise reduction) Super high resolution: 540TVL OSD menu 1/3-inch SVGA format CIS-II sensor CCD: 835 x 625 pixels Effective pixels: NTSC: 771 x 492 PAL: 753 x 582 Internal/line lock synchronous system (3.3V VD pulse input) Minimum illumination: less 0.01Lux AGC (30dB)/sens-up (off) Lens: C/CS mount Resolution: 540TVL White balance mode: ATW/AWC Range: 3,200 to 10,000K S/N ratio: typical 52dB (gamma, aperture, AGC off, 3D DNR on) Dynamic range: 94dB Frame integration: select by OSD (maximum 10x) H: mirror function: select by OSD V: mirror function: select by OSD BLC function: select by OSD Zoom function: select by OSD Flickless: select by OSD Enhance: select by OSD Gamma correction: 0.45 Gain control: AGC auto/mane select by OSD (fix 6dB, auto 24dB, total 30dB) Auto iris: AES/DC-iris Electronic shutter: 1/60 (50) to 1/120,000sec Fix: 1/60 (50), 1/100 (120), 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000sec Video output: 1.0Vp-p composite video at 75 Ohms Operation temperature: -20 to 50 degrees Operational humidity: within 85% RH Power supply: 12V DC/250mA

Features: 1/3-inch Sony Super Had CCD OSD menu control, supports 4 languages Supports DC or video iris lens BLC and AGC Build-in 3.5 to 8mm varifocal lens Lens adjustable external Privacy setting Image sensor: 1/3-inch Sony super had CCD Horizontal resolution: 420TVL and 480TVL Effective pixels: PAL (H x V): 537 x 597 and 795 x 597 NTSC (H x V): 537 x 505 and 811 x 509 Minimum illumination: 0.5 Lux of F1.2 Video output: 1.0Vp-p (75 Ohms, compsite) Lens: vair 3.5 to 8mm lens S/N Ratio: 48dB (AGC off) White balance: AWB/ATW/USRS Electronic shutter: 1/50 (1/60) to 1/12,000 seconds Synchronization system: internal Gamma correction: 0.45 Power supply: 12 ±1V DC/150mA Working temperature: -10 to 50℃ Dimensions (W x H x L): 60 × 55 × 120mm Weight: 400g

Sony 1/3-inch CCD image sensor Pixels: PAL: 500 x 582 NTSC: 510 x 492 Horizontal resolution: 480TV lines Power: 12V DC Power consumption: 3.2W Scan mode: interlace 2:1 Video output: 1Vp-p/75 Ohms Gamma correction: 0.45 White balance: auto On/Off S/N ratio: 48dB Electronic shutter: PAL: 1/50 to 1/1,10,000 seconds NTSC:1/60S to 1/1,00,000 seconds Minimum illumination: 0.2lux/F1.2 AGC: auto On/Off Backlight compensation: auto Iris control: video/DC Operation temperature: -10 to 50 degrees Celsius Dimensions: 40 x 52 x 115mm Weight: 550g

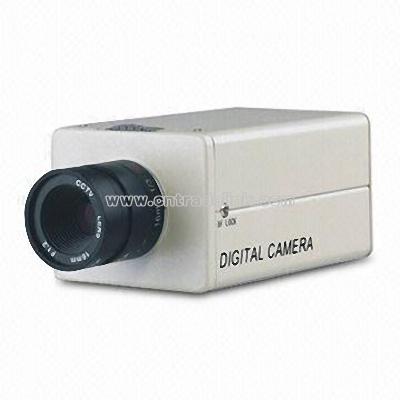

Image sensor: 1/3-inch Sony CCD Pixels: PAL: 512 x 582 NSTC: 512 x 492 Horizontal resolution: 420TVL Synchronization: internal Minimum illumination: 0.3 lux/F1.2 Lens mount: C/CS Backlight compensation: on/off switchable AGC: automatic Electronic shutter: 1/50 (1/60) to 1/100,000 seconds Auto iris control: video/DC switchable White balance: automatic S/N ratio: ≥48dB Gamma correction: 0.45 Video output: 1Vp-p, 75Ω Dimension: 113 x 70 x 66mm Operating temperature: -20 to 50℃ Power supply: 12V DC (500 to 1,000mA) Weight: 580g

Image sensor: 1/3-inch Sony CCD Pixels: PAL (H x V): 512 x 582 NTSC (H x V): 512 x 492 Scanning system: PAL/NTSC Horizontal resolution: 420TV lines Synchronization: internal Minimum illumination: 0.5 Lux/F1.2 Lens mount: C/CS Backlight compensation: on/off AGC: automatic Electronic shutter: 1/50 (1/60) to 1/100,000 seconds Auto iris control: video/DC switchable White balance: automatic S/N ratio: ≥48dB Gamma correction: 0.45 Video output: 1.0Vp-p/75Ω Power supply: 12V DC (500 to 1,000mA) Operating temperature: -20 to +50°C Dimension: 97 x 59 x 56mm Weight: 268g

Image pick-up device: 1/3-inch Sony super HAD CCD TV systems: NTSC and PAL Total pixels (H x V): NTSC: 811 x 508 PAL: 795 x 596 Effective pixels (H x V): NTSC: 768 x 494 PAL: 752 x 582 Scanning frequency (H x V): NTSC: 15.734KHz x 59.94Hz PAL: 15.625KHz x 50.00Hz Scanning system: 2:1 interlace Synchronization: internal OSD: built-in Dynamic range: 52dB Backlight: BLC, HSBLC and off (selectable) Resolution: 550TVL S/N (Y signal): 52dB (AGC off, weight on) Minimum illumination: 0.00001 Lux F1.2 (sens-up x 258) White balance: ATW, AWB, indoor, manual and AWC Electronic shutter speed: 1/60 to 1/100,000/second Sens-up: auto, fixed, off (selectable limit x 2 x 258) Gain control: high, middle, low and off (selectable) 3 DNR: on, off (1 to 100 levels selectable) D-WDR: indoor, outdoor and off Motion detection: on, off (4 zones selectable) Privacy: on and off (8 zones) Mirror: off/mirror/V-flip/rotate Freeze: on and off Sharpness: 0 to 31 levels (selectable) D and N selection: color, auto, exit and BW (selectable) Digital zoom: on and off Power: 12V DC (24V AC, optional) Operating temperature: -10 to +50 degrees Celsius, 95% RH (maximum) Storage temperature: -20 to +60 degrees Celsius, 95% RH (maximum)
