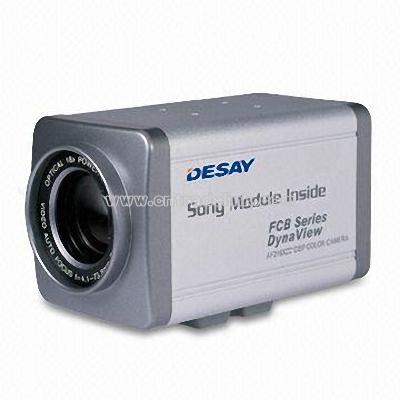

Super backlight compensation, white balance and privacy zone function Day and night function, multi alarm mode and intelligent OSD CCD: 1/4-inch Sony Exview CCD image sensor Number of pixels (H x V): PAL: 752 x 582 Horizontal resolution: 480 Optical zoom: 18x f=4.1 to 73.8mm (F 1.4 to F3.0) Digital zoom: 12x Operation/storage temperature: 0 to 50°C/-20 to 60°C Angle of view: 48° (wide) to 2.7° (tele) Minimum working distance: 10mm (wide) to 800mm (tele) Synchronization system: internal/external Video output: 1Vp-p/75 Ohms Backlight compensation: on/off/adjust Electronic shutter: 1s to 1/10,000s White balance: auto, manual, indoor, outdoor, one push and ATW AICR: yes S/N ratio: 50dB Power and consumption: 12V/1.5 to 2.5W Minimum illumination: 0.01/F1.4 Lux Dimensions: 120 x 62 x 65mm Gain and AE control: auto/manual Exposure compensation: -10.5 to 10.5dB Focus mode: auto/manual Control connector: voltage/TTL/remote Image effect: negative art/B&W/H.invert/V.invert Alarm trigger: 0 to 5V DC Privacy zone setting: P.zone/P.zone Weight: 225g

Excellent super high resolution technology (CCD) Color mode: 580TVL B/W mode: 650TVL Minimum illumination: 0.05 lux at F1.0 Sense-up: 0.001 lux at F1.0 High sensitivity with day/night function Supports motion detection function Privacy masking (4 programmable zones) Mirror/vertical/rotate function Built-in DNR and Sense Up OSD setting menu Remote control by RS-485

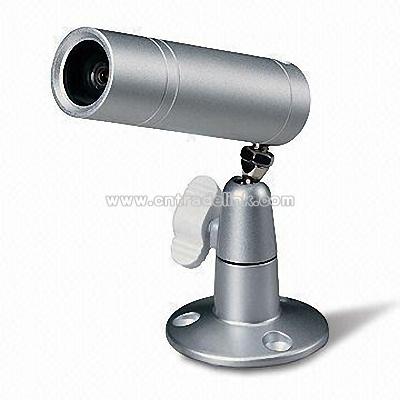

Image sensor: 1/4-inch Sony CCD Resolution: 420TVL Illumination: 0.92 lux Lens: 3.6mm Built-in fixed lens Weatherproof, anodized aluminum housing Automatic gain control Backlight compensation

CCD Type: SONY 1/3" CCD Pixels: PAL: 752H× 582V NTSC: 768H× 494V Scanning system: PAL/NTSC Horizontal resolution: 420/500/520TVL Minimum illumination: 0.5LUX S/N ratio: ≥48dB Video output: 1.0Vp-p/75Ω AGC: AGC ON/OFF switchable White balance: AWB ON/OFF Switchable Backlight compensation: ON/OFF Switchable Exposure mode: EE/AI Switchable Electronic shutter: 1/50(1/60) to 1/100000 sec Gamma correction: 0.45 Sync. system: internal syschronization Auto Iris control: Video/DC switchable Lens: C/CS Power supply: 12V DC Operating temperature: -20 to 50 degree Celsius

Image sensor: DSP Sony or Sharp CCD (optional) Signal system: PAL/NTSC Horizontal resolution: 420/480/540TVL (optional) Lens mount: C/CS mount Minimum illumination: 0.1 Lux/F1.2 S/N ratio: more than 52dB Shutter speed: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds Video output: 1Vp-p, 75Ω and BNC Synchronizing system: internal/external Supplied power: 12V DC Operating temperature: -20 to +60?C

1/3-inch Sony ex-view HAD CCD Sony HQ1/540TVL/0.05 lux at F1.0 Mechanical IR cut filter Color mode switches to B/W mode AES/S.AGC/BLC/FLC (on/off) Video/DC iris control Built-in DNR and sense up

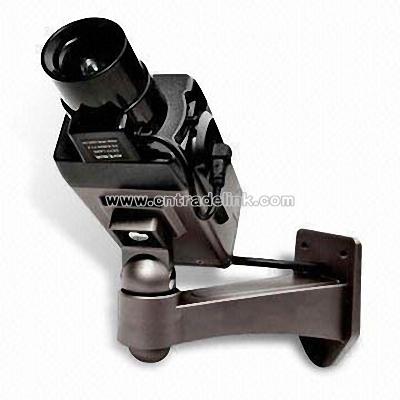

Material: ABS Power source: 2pcs 1.5V AA size batteries (not included) Finish color: brown or black Unit net weight: 230g Unit gross weight: 270g Camera lens diameter: 30mm black plastic lens Camera dimension: 160 x 60 x 50mm Bracket height: 150mm Bracket arm movement: fully adjustable (0-90 downward tilt, 0-360 L/R rotation) Power indicator: blinking red LED Camera activation: continuous On/off method: removal/installation of batteries Accessories: mounting hardware pack/3 wood screws Packing: Net weight: 230g Gross weight: 270g Box dimensions: 175 x 150 x 85mm

Image sensor: Sony or Sharp CCD (optional) Signal system: PAL/NTSC Horizontal resolution: 420TVL/480TVL/520TVL (optional) Lens mount: C/CS mount Minimum illumination: 0.1 Lux/F1.2 S/N ratio: more than 52dB Shutter speed: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds Video output: 1Vp-p, 75Ω and BNC Synchronizing system: internal/external Supplied power: 12V DC Operating temperature: -20 to 60 degrees Celsius

1/3-inch super high-resolution varifocal camera Sony HQ1/540TVL/0.1 lux at F1.2 Built-in DNR and sense up AES/AGC/BLC/FL (on/off)

Pick-up device: 1/3-inch color Sony Super HAD CCD TV system: PAL or NTSC Picture elements (H x V): PAL: 500 x 582 NTSC: 510 x 492 Horizontal resolution: 420TVL Sensitivity: 0.1Lux, F=1.2 Scanning system: PAL: 625TVL NTSC: 525TVL 2:1 interlace Synchronization: internal synchronization S/N ratio: over 50db, AGC off Auto Gain Control (AGC): auto White balance: auto Electronic shutter: up to 1/100,000 seconds Backlight compensation: auto Video output: 1 Vp-p, 75 Ohms composite, BNC x 1 Gamma ratio: 0.45 Lens mount: M12 x P0.5mm thread Power supply: 12V DC, diameter 2.0mm DC Jack x 1 Power consumption: 150mA OLP switching mechanical: optional Dimensions (D x L): 91.5 x 135mm Net weight: 300g Operating temperature: -10 to 50 degrees

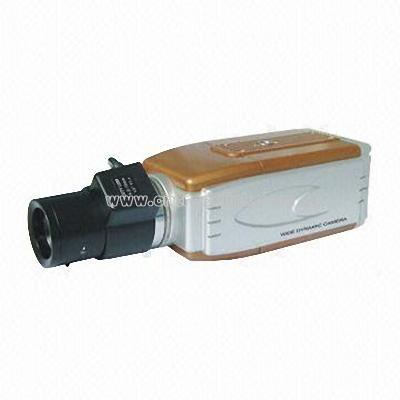

Image sensor: 1/3-inch DPS sensor Effective pixels: (H) 720 x (V) 540 Signal systems: PAL/NTSC Horizontal resolution: 540TVL Minimum illumination: Color: 0.6 Lux (F1.2) Slow shutter: 0.08 Lux Dynamic range: 101dB maximum (120dB/1 bit) Auto white balance range: 2,000 to 11,000k Sync mode: internal (12V DC), line lock Gamma correction: adjustable Video output: video out (BNC) Control: OSD Excellent ultra WDY performance Natural color and excellent image quality Minimum blooming and vertical Color or B/W switch Digital noise reeducation (DNR) Electronic shutter speed: 1/60 to 1/100,000 and 1/50 to 1/100,000 seconds (auto) White balance: ATW extend, ATW normal, ATW desat, AWB and manual Video output composite level: 1.0Vp-p, 75 ohms S/N ratio: more than 50dB Auto iris lens: DC/video selectable Lens mount: C/CS mount Power supply: 12V DC/24V AC Power consumption: 2W (typical)/3W (maximum) Operating temperature: -10 to 50 degrees Celsius Humidity: 95%RH maximum Dimensions: 121 x 65 x 62mm Weight: 500g

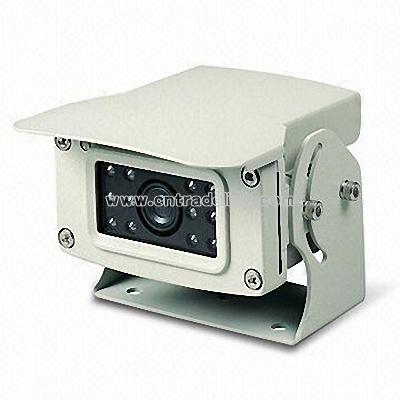

Image sensor: 1/4-inch Sony CCD Resolution: 420TVL Illumination: 0.5 lux Lens: 6.0mm Built-in infrared Built-in fixed lens Weatherproof housing 4 DIN connector

CCD Type: SONY1/3" CCD Pixels: PAL: 752H× 582V NTSC: 768H× 494V Scanning System: PAL/NTSC Horizontal resolution: 520/600TVL Minimum illumination: 0.001LUX S/N ratio: ≥48dB Video output: 1.0Vp-p/75Ω AGC: OFF/LOW/MIDDLE/HIGH White balance: ATW/AWC MANUAL Backlight compensation: OFF/LOW/MIDDLE/HIGH Exposure mode: OFF/LOW/MIDDLE/HIGH Electronic shutter: 1/50(1/60) to 1/100000 sec Gamma correction: 0.45 Sync. system: internal/external syschronization Lens: C/CS Power supply: 12V DC Operating temperature: -20 to 50 degree Celsius

Image sensor: Sony or Sharp CCD (optional) Signal system: PAL/NTSC Horizontal resolution: 420TVL Lens mount: C/CS mount Minimum illumination: 1.0 Lux/F1.2 S/N ratio: more than 48dB Shutter speed: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds Video output: 1Vp-p, 75Ω and BNC Synchronizing system: internal/external Supplied power: 12V DC Operating temperature: -20 to 60 degrees Celsius

Excellent super high resolution technology (CCD) Color mode: 580TVL B/W mode: 650TVL Minimum illumination: 0.05 lux at F1.0 Sense-up: 0.001 lux at F1.0 High sensitivity with day/night function Mechanical IR cut filter Supports motion detection function Privacy masking (4 programmable zones) Mirror/vertical/rotate function Built-in 3D DNR and sense up XDR (Extended Dynamic Range) Eclipse the halation part such as headlight, and more OSD setting menu Remote control by RS-485

1/3-inch Sony exview HAD CCD Resolution: 480 TV lines 0.05 Lux/F1.2 PAL and NTSC available Effective pixels: PAL: (H) 752 x (V) 582 pixels NTSC: (H) 768 x (V) 494 pixels Signal systems: PAL/NTSC Horizontal resolution: 480 TV lines Lens: C/CS mount Minimum illumination: 0.05 Lux/F1.2 S/N ratio: more than 48dB Shutter speed auto: 1/50 (1/60) to 1/100,000 second White balance: auto tracking white balance Video output: 1Vp-p, 75 ohms, BNC Power consumption: approximately 2.8W Power sourcing: 12V DC Color to B/W switch illumination: 3 Lux Auto gain control: on/off Operating temperature: -10 to +50 degrees Celsius Size: (L) 120 x (W) 69 x (H) 50mm

Image sensor: 1/3-inch sony super HAD CCD Resolution: 530TVL Minimum illumination: 0.3 Lux, F1.4/0.002 lux (sens-up 128x) On-board OSD Up to 128x sens-up 4 level adjustable DNR Optional ICR Dimension: 105 x 57 x 52mm

1/3-inch medium resolution color CCD camera Resolution: 420TVL Illumination: 0.15 lux at F1.0 AES/AGC/BLC/FL (on/off) Video/DC iris control

Image sensor: 1/4 Sony CCD DSP: Sony TV system: PAL/NTSC Effective pixels (H x V): 720 x 540 Horizontal resolution: 480TVL Scanning area: 4.9 x 3.7mm Lens mount: 30x 3.6 to 97.2mm Minimum illumination: 0.05Lux/F1.2 Control method: On Screen Menu Control (OSD) English S/N ratio: more than 52dB Electronic shutter: 1/100,000 to 1/50 sec Auto iris control: video or DC driver, selectable Gamma modification: 0.45 White balance: AWB Video output: 1Vp-p 75Ω composite, BNC x 1 Operating temperature: -10 to + 50 degrees C Power supply voltage: DC 12V Power consumption: 750mA Dimensions (W x D x H): 58 x 105 x 70mm Weight: 360g

Image sensor: 1/4-inch Sharp CCD DSP: Sharp TV system: PAL/NTSC Effective pixels (H x V): NTSC: 510 x 492 PAL: 500 x 582 Horizontal resolution: 420TVL Scanning area: 4.9 x 3.7mm Lens mount: CS mount Minimum illumination: 0.8Lux S/N ratio: over 48dB (AGC off) Electronic shutter: on/off (up to 1/100,000 sec) Auto iris control: video or DC driver, selectable Gamma modification: 0.45 Gain control: 40dB on/16dB off selectable Synchronous system: internal sync Backlight compensation: (BLC) on/off selectable Video output: 1Vp-p 75 Ohms composite, BNC x 1 Operating temperature: -10 to + 50 degrees C Power supply voltage: 12V Power consumption: 180mA Dimensions (W x D x H): 61 x 122 x 47mm Weight: 330g
