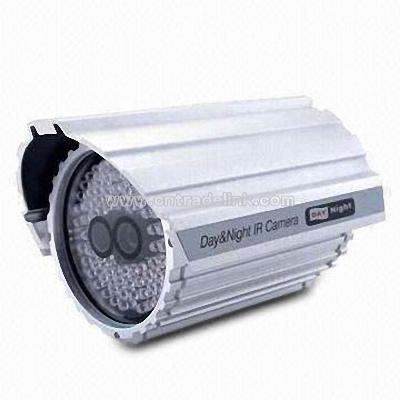

1/3-inch Sony ex-view CCD or super HAD CCD (dual CCD and dual lens, one color CCD for day and one B/W for night) Allows high-quality image all day and night due to the dual CCD and dual lens Digital signal processing (DSP) allows better picture quality 520 TV lines of horizontal resolution during daytime and 600 TV lines at night with IR assist Minimum illumination: 0.5Lux for color and under 0.000 Lux with infrared LED on Backlight compensation DC cooling fan included 60 units infrared LED: 40m (maximum) CDs auto switching infrared LED Lens: day: f=6mm (f=4, 8, 12, 16mm option), night: f= 6mm (f=4, 8, 12 and 16mm option) Dimensions: 99.5 x 136.5mm Color option: silvery white and black Power: 12V DC

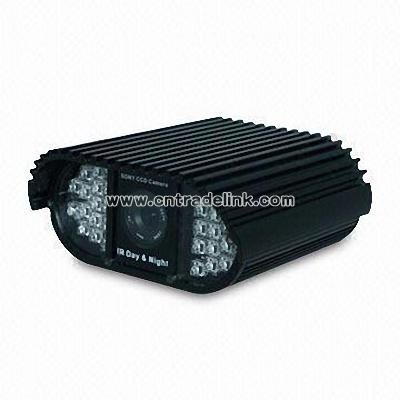

Image sensor: Sony/Sharp color CCD Horizontal resolution: 520, 480, and 420TVL TV system: PAL/NTSC Water resistant: IP66 IR LED: 5 x 23 pieces IR distance: 20m Lens: board lens 6mm/F2.0 Synchronous system: internal IR status: under 10 lux by CDS Usable illumination: 0 lux/F2.0 (LED on) IR power on: CDS auto control S/N ratio: 48dB (AGC off) Gamma correction: 0.45 Composite video out signal: 1.0Vp-p, 75 ohms Scanning system: PAL: 625 lines, 50fps NTSC: 525 lines, 60fps Electronic shutter time: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds White balance: auto Power source: 12V DC, 350mAh Dimensions: 164.5 x 66 x 116.5mm Weight: 750g

Image sensor: 1/3-inch Sharp color CCD Horizontal resolution: 420TVL Water-resistant infrared CS mount 16mm lens 40 pieces 8mm IR LEDs IR distance: 70m Auto switch CCD filter Easy change lens 220 or 110V AC

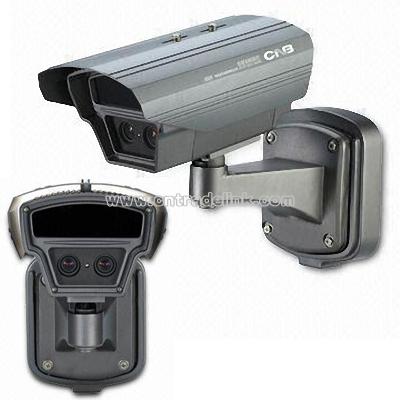

Dual 1/3" Sony Super HAD CCD (Color & BW) 550TVL (color) & 600TVL (BW) high resolution Dual DC Iris varifocal lens (3.8 to 9.5mm) SDNR (Super Digital Noise Reduction) AGC/BLC/flickerless (on/off) Privacy zone, motion detection Auto White Balance Built-in IR LED 112EA & sensor 1EA IR visible range: max. 60m Extra video-out port for easier installation Built-in fan & heater Cable through type camera bracket

TV system: PAL/NTSC Image sensor: 1/4-inch Sony CCD Sync system: internal Minimum illumination: 1 lux, 5,600oK 0 lux: IR on Resolution: 420TVL White balance mode: automatic Range: 3,200 to 10,000oK Gain control: automatic S/N ratio: 50dB Electronic shutter: 1/50 to 1/12,000 seconds Video output: composite output 1.0Vp-p at 75Ω Gamma correction: 0.45 Operating temperature: -20 to 50°C Working place: waterproof Lens: 3.6mm IR range: 20m, 35 degrees Dimensions: 80 x 52mm Power supply: 12V DC ±1V/230mA (maximum)

IR weatherproof camera Built-in 3.6/6/8/12mm lens 36pcs IR LED Effective viewing distance: 60m TV system: PAL/NTSC Minimum illumination of 0 lux (LED on) The description of different chips are as follows: HQ: Resolution: 520TVL PAL: 752 x 582 pixels NTSC: 768 x 494 pixels Current: 1,000mA Minimum illumination of 0.4 lux/F1.2. STH: Image sensor: 1/3-inch Sony Resolution: 480TVL PAL: 752 x 582 pixels NTSC: 768 x 494 pixels Current: 1,000mA Minimum illumination: 0.5 lux/F1.2 STL: Image sensor: 1/3-inch Sony Resolution: 420TVL PAL: 500 x 582 NTSC: 510 x 492 Current: 1,000mA Minimum illumination: 0.8 lux/F1.2 AGC: on/off Gamma characteristic: above 0.45 White balance: auto Backlight compensation: on/off S/N ratio: greater than 48dB Power supply: 12V DC

Image device: Sony CCD Number of pixels: PAL: 500 x 582 NTSC: 510 x 492 IR LED: 5 to 20 pieces IR distance: 100m Horizontal resolution: 420TVL S/N ratio: >48dB Minimum illumination: 0.00 Lux Power consumption: 12V DC ± 10%, 500mA Electronic shutter speed: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds Gamma correction: 0.45 Temperature controller Video output: 1Vp-p, 75Ω and negative Lens mount: 4 to 16mm/F1.5 Operating temperature: -10 to 50°C Humidity: 95% RH (maximum)

Sensor: 1/3 CMOS OV 7910 A class Audio input 1 channel input supported System of signal: PAL/NTSC Horizontal resolution: >380TVL Minimum illumination: 0 lux (IR on) Effective pixel: PAL: 628 x 582 NTSC: 501 x 492 IR distance 10 meters, 12 LEDs Auto exposure control 1/60 to 1/2,000sec Scanning system frequency: PAL: 50Hz NTSC: 60Hz Video output: 1.0Vp-p 75 ohms BNC S/N ratio: >40dB Power supply: 12V DC Power consumption: <0.2W Weight: 640g

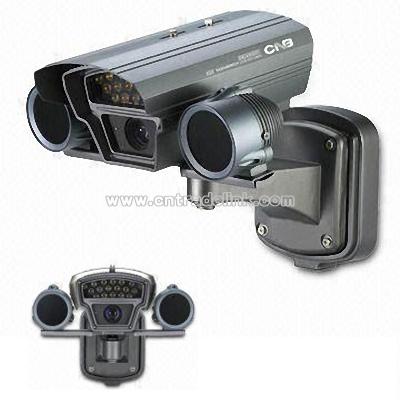

1/3" SONY Super HAD CCD High resolution: 550TV lines DC iris varifocal lens (7.5 to 50mm) TDN (ICR) Digital slow shutter 2x digital zoom SDNR (Super Digital Noise Reduction) AWB, AGC, BLC, flickerless Built-in hybrid IR LED (18EA) & IR illuminator LED (206EA) & sensor 1EA IR visible range: 100m Extra video-out port for easier installation Built-in fan and heater Cable through type camera bracket 12V DC single voltage

Sony/Sharp color CCD Horizontal resolutions: 480, 420, and 520TVL TV system: PAL/NTSC Water resistant: IP66 IR LED: ?5 x 36 pieces IR distance: 30m Lens: 4-9mm manual zoom lens (optional) Sync system: internal IR status: under 10 lux by CDS Usable illumination: 0 lux/F2.0 (LED on) IR power on: CDS auto control S/N ratio: ≥48dB (AGC off) Gamma correction: 0.45 Video out: composite signal (1.0Vp-p, 7575) Scanning system: PAL: 625 lines, 50fps NTSC: 525 lines, 60fps Electronic shutter time: Auto: PAL 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds White balance: auto Power source: DC 12V, 350mAh Dimensions: 180 x 83 x 95mm Weight: 1,200g

Image sensor: 1/3-inch Sony TV system: PAL and NTSC LED: 5 IR LED, 36 pieces IR distance: 30m Sync system: internal synchronization Illumination: 0.00 Lux S/N ratio: ≥48dB (AGC off) Gamma characteristic: 0.45 Video output: 1.0Vp-p, 75 Ohms Scanning system: PAL: 625 lines, 50 fields/second NTSC: 525 lines, 60 fields/second Electronic shutter time: Automatic PAL: 1/50 to 100,000 seconds NTSC: 1/60 to 1/100,000 seconds Operating temperature: -10 to 50?C, 95% RH (maximum) Storage temperature: -20 to 60?C, 95% RH (maximum) White balance: automatic Power supply: 12V DC ± 10%

Weatherproof IR camera Built-in 3.6/6/8/12mm lens Quantity: 30pcs IR LED Effective viewing distance: 70m TV system: PAL/NTSC Minimum illumination: 0 lux (LED on) The description of different chips are as follows: HQ: Resolution: 520TVL PAL: 752 x 582 NTSC: 768 x 494 Current: 450mA Illumination: 0.4 lux F/1.2. STH: Image sensor: 1/3-inch Sony Resolution: 480TVL PAL: 752 x 582 NTSC: 768 x 494 Current: 500mA Illumination: 0.5 lux F/1.2 STL: Image sensor: 1/3-inch Sony Resolution: 420TVL PAL: 500 x 582 NTSC: 510 x 492 Current: 450mA Illumination: 0.8 lux F/1.2 AGC: on/off Gamma characteristic: above 0.45 White balance: auto Backlight compensation: on/off S/N ratio: greater than 48dB Power supply: 12V DC

Image sensor: 1/3-inch Sony super HAD CCD Pixels: NTSC: color 510 x 492 pixels PAL: color 500 x 582 pixels Minimum illumination: 0 Lux (IR on) S/N ratio: 48dB (AGC off) Shutter speed: NTSC: 1/60 to 1/100,000 seconds PAL: 1/50 to 1/100,000 seconds Gamma compensation: 0.45 Synchronization: internal synchronization Auto gain control: on Backlight compensation: on Lens: 6 to 15mm varifocal lens Camera power consumption: 130mAh (IR off), 510mAh (IR on) BNC connector Power requirement: 12V DC, 1,000mAh Operating temperature: -20 to 50℃

Image sensor: 1/3-inch sony super -HAD CCD (1/3-inch Sharp CCD option) Resolution: 420 TV lines (480 TVL option) Digital signal processing (DSP) allows better picture quality Minimum illumination: 0.5Lux for color and under 0.000Lux for infrared lighting 112 units infrared LED: 80m (maximum) CDs auto switching infrared LED Auto backlight compensation More than 48dB (AGC off) Lens: f=8mm (f=6,12, 16mm lens option) Power: 12V DC Dimensions: 108 x 115mm Colors: silvery white and black

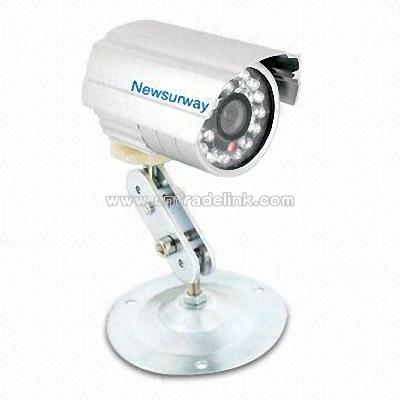

1/3-inch Sony color CCD Resolution: 480TVL Waterproof infrared 3.6mm lens/30 pieces 5mm IR LEDs 30 meters IR distance No bracket

1/3-inch Sony Super HAD CCD High resolution: 550TV Lines SDNR (Super Digital Noise Reduction) TDN (ICR) Digital slow shutter 2x digtial zoom AGC, BLC, flickerless Built-in IR LED 56EA & sensor 1EA IR visible range: maximum 50m Extra video-out port for easier installation Built-in fan & heater Cable through type camera bracket 24V AC/12V DC dual voltage

Image sensor: 1/3-inch Sony super HAD CCD LED: square LED 24pcs Minimum illumination: 0 lux (IR on) S/N ratio: 48dB (AGC off) Shutter speed: NTSC: 1/60 to 1/100,000 seconds PAL: 1/50 to 1/100,000 seconds Gamma compensation: 0.45 Synchronization: internal synchronization Auto gain control: on Backlight compensation: on Camera power consumption: 130mA (IR off)/510mA (IR on) BNC connector Power requirement: 12V DC, 1,000mA Operating temperature: -20 to 50℃

Sensor device: 1/3-inch Sony CCD Pixel: PAL: 752 x 582 NTSC: 768 x 494 Signal system: PAL and NTSC Minimum illumination: 0.000 lux/F1.2 (LED on) Lens: 12, 8, 6, and 3.6mm (optional) Electronic shutter: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds S/N ratio: more than 48dB Video output: 1Vp-p, 75 ohms White balance: auto Backlight compensation: auto Gamma characteristic: more than 0.15 IR LEDs: four big LEDs IR view distance: 40m Power supply: 12V DC Operation temperature: -10 to 50 degree Celsius

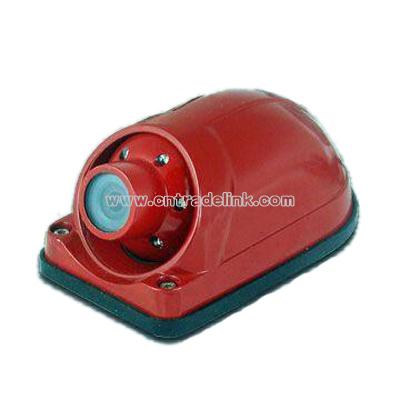

CCTV camera for side view Compact profile Waterproof and vandalproof Convenient angle adjustment Infrared LED light: 5 IR distance: 5m High resolution Multiple colors are optional: black, green, yellow, red, and silver Can be mounted on rear or either side of vehicles 1/3-inch color CMOS sensor With IR Image device: OV7949 TV system: PAL/NTSC Effective pixels: 628 x 586 pixels/510 x 496 pixels Sensing area: 5.961 x 4.276mm Scanning system: 2:1 interlace Synchronization system: internal Resolution: 420TVL Minimum illumination: 0 lux (infrared lamps on) 0.1 lux (day)/F1.2 Video output: 1.0vp-p, 75 ohms Gamma consumption: 0.45 AGC: auto S/N ratio: better than 48dB White balance: auto Electronic shutter: 1/50 to 12.5μsec (PAL)/1/60 to 12μsec (NTSC) BLC: auto Current consumption: maximum 120mAh Power supply: 12V DC Operating temperature: -20 to +70℃, 95% RH Maximum storage temperature: -40 to 80℃, 95% RH Lens: 3.6mm (P)/2.8mm (N) F = 2.0 Lens angle: 120° (P)/120° (N)

All-oriented bracket waterproof IR camera 360° circle around the origin 180° turn up and down, horizontally and vertically 30 meters IR visible distance Insert 4 to 9mm manual varifocal lens Aluminum alloy design, all-oriented bracket with cable conceal inside Image sensor: 1/3-inch Sony CCD Resolution: PAL: 795 x 596 pixels NTSC: 811 x 508 pixels Horizontal resolution: 540TVL Signal system: PAL/NTSC Scanning system: 2:1 interlaced scan Minimum illumination: 0 lux (IR on) Synchronization system: internal S/N ratio: 48dB Electronic shutter: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds Gamma correction: 0.45 Video output: 1Vp-p, 75Ω AGC: auto IR LED: 36EA infrared LED IR distance: 30m infrared LED on Power: 12V DC (±10%) Current: 300mA Outer packing: 690 x 390 x 535mm Dimensions: 256 x 86 x 143mm Weight: 0.9kg Working temperature: -10 to 45 degree Celsius
