IR distance: 45 to 50m Adopting 72pcs ?5mm IR LED Varifocal lens: 9 to 22mm, lens adjustable from the bottom Dual glass, no IR diffusion and fog IP66, outdoor installation Hidden cable bracket: to prevent external force of destruction such as cutting Digital noise reduction (DNR) (optional) Removable IR cut filter (ICR) (optional) Image sensor: 1/3-inch Sony CCD (405/404AK), 3142 Sony DSP 1/3-inch Sony CCD (633/632AK), 3142 Sony DSP Effective pixels: PAL: 500 x 582 NTSC: 510 x 492 Signal system: PAL/NTSC Horizontal resolution: 420TVL S/N ratio: more than 48dB Minimum illumination: 0 lux (IR LED on) Shutter speed: 1/50 (1/60) to 1/100,000 seconds White balance: auto tracking white balance Video output: 1Vp-p, 75Ω, BNC Power supply: 9 to 14V DC (when IR LED turn on, maximum current is 1A) Current: 80mA IR wavelength: 850nm IR distance: 45 to 50m Dimension: ф100 x 260 x 185mm Net weight: 0.9kg Operating temperature: -10 to +50°C

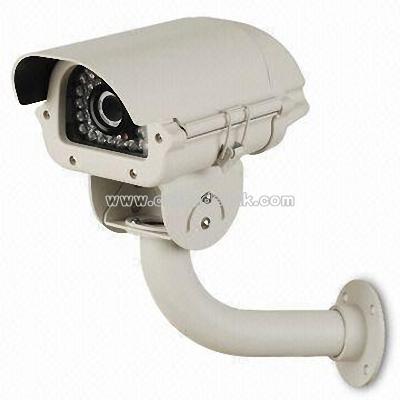

1/3-inch Sony super HAD CCD High resolution: 480TVL Built-in multi-language OSD menu 4 adjustable private zones Motion detect and mirror function Electronic shutter adjustable Day/night function Waterproof Special designed for catching car license plate Cable inside bracket Specification: Effective pixels: NTSC: 768 x 494 PAL: 752 x 582 Synchronization system: internal Resolution: 480TVL Minimum illumination: 0 lux (IR on) S/N: more than 48dB Electronic shutter: NTSC: 1/60 to 1/100,000 PAL: 1/50 to 1/100,000 Flickerless mode: on/off Lens: 9 to 22mm DC M12 lens Gamma: auto/manual White balance: auto (ATW, AWB, FIXED, manual) AGC gain control: high/low (6 to 40dB) Back light comp: on/off (64area) Motion detection: on/off (64area) Day and night: color B/W auto (level adjust) Video output: 1.0Vp-p composite video output, 75 ohms IR distance: 40 to 50m Power supply: 12V DC Power consumption: 800mA (maximum) Operating temperature: -20 to 50°C

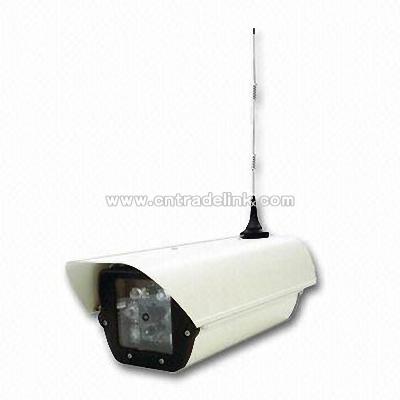

Wireless 5.8GHz 16ch or 2.4GHz 8CH CCD IR camera 1/3-inch color CCD outdoor IR camera with 12mm lens Resolution: 420TVL Auto iris Output power: 10mW to 2W 30m IR 7dBi omni-antenna

Image sensor: 1/3-inch Sony color CCD Horizontal resolution: 480TV lines Signal system: PAL/NTSC Picture pixels: PAL: 752 (H) x 582 (V) NTSC: 768 (H) x 494 (V) LED No.: 44 pieces Ranging distance: 40-45m Infrared wavelength: 850nm Sync system: internal synchronization S/N ratio: >48dB Lens: 3.6/6/8/12mm Electronic shutter: PAL: 1/50 -1/100,000 Sec NTSC: 1/60 -1/100,000 Sec Gamma collection: r=0.45 Gain control: auto White balance: auto Backlight compensation: auto Minimum illumination: 0Lux (IR ON) Video output: 1.0Vp-p, 75Ω Power supply: 12V DC +/- 20% Operation temperature: -10 to +50 degrees Celsius Dimensions: ? 70mm x 135mm Case: water-resistance metal case with bracket Anti-reflection glass is optional Other model: TWD-IR006S-520: 1/3-inch Sony HQ1 color CCD water-resistant IR camera, 520TVL 44pcs LEDs, 3.6/6/8/12mm lens, anti-reflection glass is optional, DC12V

Image device: 1/3-inch Sharp high-pixel color CCD Horizontal resolution: 480TV lines Effective pixel: NTSC: 768 x 494 PAL: 752 x 582 Alloy shell, day/night function, weather-resistant for outdoor usage Water resistance: IP66 Electronic shutter time: auto NTSC: 1/60-1/100,000 second PAL: 1/50-1/100,000 second Synchronization system: internal S/N ratio: >48dB (AGC off) Usable illumination: 0Lux (built-in 108 IR LED on) IR LED working distance/lens mount/angle of view: 80m, 16mm, 20 degrees, 60m, 12mm and 28 degrees Lens mount: board lens (3.6 to 25mm) optional Operating temperature: -10 to 50 degrees C (RH: 95% maximum) Storage temperature: -20 to 60 degrees C (RH: 95% maximum) Gain control: auto White balance: auto BLC: auto Video output: 1.0Vp-p 75 Ohms Power supply: 12 to 36V DC/1,200mA Dimensions (R x H): 200 x 200mm Weight: 2,000g

IR weatherproof camera Built-in 3.6/6/8/12mm lens 60pcs IR LED Effective viewing distance: 120m TV system: PAL/NTSC Minimum illumination of 0 lux (LED on) The description of different chips are as follows: HQ: Resolution: 520TVL PAL: 752 x 582 NTSC: 768 x 494 Current: 1,000mA Illumination of 0.4 lux/1.2 STH: Image sensor: 1/3-inch Sony Resolution: 480TVL PAL: 752 x 582 NTSC: 768 x 494 Current: 1,000mA illumination of 0.5 lux/1.2 STL: Image sensor: 1/3-inch Sony Resolution: 420TVL PAL: 500 x 582 NTSC: 510 x 492 Current: 1,000mA illumination of 0.8 lux/1.2 AGC: on/off Gamma characteristic: above 0.45 White balance: automatic Backlight compensation: on/off S/N ratio: greater than 48dB Power supply: 12V DC

TV system: PAL/NTSC Image sensor: 1/4-inch Sony CCD Sync system: internal Minimum illumination: 0 lux, IR on Resolution: 420TVL Scanning system: 2:1 Interlace White balance mode Gain control range: automatic, 3,200 to 10,000oK S/N ratio: >50dB Electronic shutter: 1/50 to 1/12,000sec Video output: composite output 1.0Vp-p at 75 ohms Gamma correction: 0.45 Operation temperature: -20 to 50℃ Working place: IP65 IR range: 14pcs 5mm LEDs, IR 12m Lens: 6mm Dimensions: 73 x Ф49mm Power supply: 12V DC, ±1V/150mA

1/3-inch Sony color CCD Resolution: 480TVL 8mm lens Water-resistant infrared 24 PCS 8mm IR LEDs 35 meters IR distance All-in-one bracket

Technical specification: TV system: PAL/NTSC Image sensor: 1/3-inch Sony CCD (color), 1/3-inch Sony CCD (B/W) Minimum illumination: 0.5 lux (color), 0 lux IR on (B/W) Resolution: 560TVL (color), 480TVL (B/W) Synchronization system: internal Image pixel: PAL: 500 x 582 pixels NTSC: 510 x 492 pixels White balance mode: automatic Range: 3,200 to 10,000oK Gain control: automatic B/W balance: automatic BLC: automatic S/N ratio: 48dB Electronic shutter: 1/50 to 1/12,000 second Video output composite output: 1.0Vp-p at 75 ohms Gamma correction: 0.45 Operation temperature: -20 to 50 degree Celsius Working place waterproof Protection degree: IP66 Lens: 16mm IR range: 66pcs 5mm LEDs, 60 meter IR distance Power supply: 12V DC ±1V/500mA (maximum)

Image sensor: 1/3-inch Sony color CCD Horizontal resolution: 420TVL Water-resistant infrared Varifocus lens: 4 to 9mm 56 pieces, 5mm IR LEDs IR distance: 50m Lens can be adjusted from bottom without screw driver

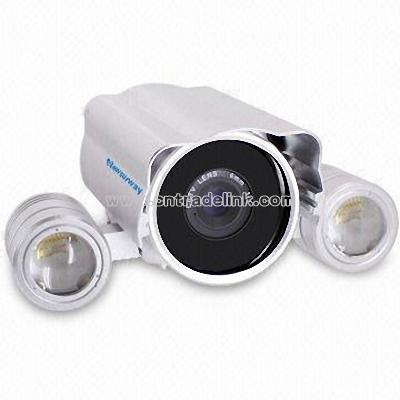

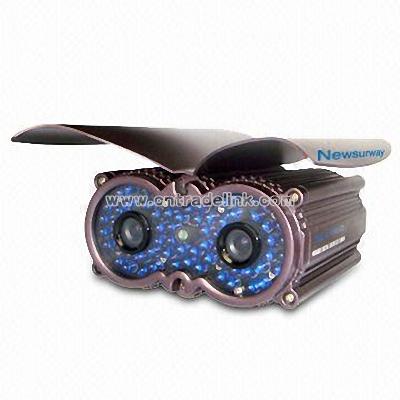

1/3-inch Sony sensor Resolution: 560TVL Water-resistant CCD camera 2 x IR array IR distance: 50m CS 8mm lens Double glasses

IR weatherproof camera Built-in 3.6/6/8/mm lens 48pcs IR LED Effective viewing distance: 50m TV system: PAL/NTSC Minimum illumination: 0 lux (LED on) The description of different chips are as follows: HQ: Resolution: 520TVL PAL: 752 x 582 pixels NTSC: 768 x 494 pixels Current: 500mA Minimum illumination: 0.4 lux/F1.2. STH: Image sensor: 1/3-inch Sony Resolution: 480TVL PAL: 752 x 582 pixels NTSC: 768 x 494 pixels Current: 500mA Minimum illumination: 0.5 lux/F1.2 STL: Image sensor: 1/3-inch Sony Resolution: 420TVL PAL: 500 x 582 pixels NTSC: 510 x 492 pixels Current: 450mA Minimum illumination: 0.8 lux/F1.2 SFL: Image sensor: 1/4-inch Sony Resolution: 420TVL PAL: 500 x 582 pixels NTSC: 510 x 492 pixels Current: 450mA Minimum illumination: 0.8 lux/F1.2 PTL: Image sensor: 1/3-inch Sharp Resolution: 420TVL PAL: 500 x 582 pixels NTSC: 510 x 492 pixels Current: 400mA Minimum illumination: 1.0 lux/F1.2 PFL: Image sensor: 1/4-inch Sharp Resolution: 420TVL PAL: 500 x 582 pixels NTSC: 510 x 492 pixels Current: 400mA Minimum illumination: 1.0 lux/F1.2 AGC: on/off Gamma characteristic: above 0.45 White balance: automatic Backlight compensation: on/off S/N ratio: greater than 48dB Power supply: 12V DC

1/3-inch Sony color CCD Resolution: 540TVL Water-resistant infrared 6 to 15mm varifocal lens 48 pieces 5mm IR LEDs 40 meters IR distance Lens can be adjusted outside With wall-mounted all-in-one bracket OSD menu Double glass

1/3-inch color CMOS image sensor Audio Waterproof feature 8m IR distance With small bracket

Image sensor: 1/3-inch Sony color CCD LED: 26 pieces IR IR distance: 45m

Image sensor: 1/3-inch Sony super HAD CCD Lens: 4 to 9mm varifocal lens LED: square 30 pieces IR distance: 45m Minimum illumination: 0 Lux (IR on) S/N ratio: 48dB (AGC off) Shutter speed: NTSC: 1/60 to 1/100,000 seconds PAL: 1/50 to 1/100,000 seconds Gamma compensation: 0.45 Synchronization: internal synchronization Auto gain control: on Backing compensation: on Camera power consumption: 130 (IR off), 510mAh (IR on) BNC connector Power requirement: 12V DC, 1,000mAh Operating temperature: -20 to 50°C With cut-proof bracket

1/3-inch Sony color CCD Resolution: 420TVL/520TVL option 42 pieces IR LEDs with night version at 60-foot Standard lens: 6mm

CCTV camera IR integrative camera 36pcs of diameter 5mm IR LEDs 30m IR night vision Standard match 4 - 9mm varifocal lens, 2.8 - 10mm lens for optional Al casing, waterproof function Cable built-in 3 axis bracket

Main selling point: Cable built-in bracket, to be vati-water and easy to connect with power Bracket assembled together with housing, easy to install Outlook is beautiful and bracket is strong and hard Gray color like Korea design, popular, and special choice Specifications: Image sensor: Sony/Sharp color CCD Horizontal resolution: 520, 480, and 420 TVL TV system: PAL/NTSC Water resistance: IP66 IR LED: 5 x 30 pieces IR distance: 25m Lens: board lens 6mm/F2.0 Synchronous system: internal IR status: under 10 Lux by CDS Usable illumination: 0 Lux/F2.0 (LED on) IR power on: CDS auto control S/N ratio: 48dB (AGC off) Gamma correction: 0.45 Composite video out signal: 1.0Vp-p, 75 Ohms Scanning system: PAL: 625 lines, 50fps NTSC: 525 lines, 60fps Electronic shutter time: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds Auto white balance Power source: 12V DC, 350mA Dimension (W x H x D): 162.5 x 75.3 x 125.7mm Weight: 850g

Image sensor: Sony/Sharp color CCD Horizontal resolution: 520, 480 and 420TVL TV system: PAL/NTSC IR LEDs: ?8mm, 36 pieces IR distance: 30m IR status: under 10 lux by CDS Usable illumination: 0 lux/F2.0 (LED on) IR power on: CDS auto control Lens: 4 to 9mm manual zoom lens Scanning system: PAL: 625 lines, 50fps NTSC: 525 lines, 60fps Electronic shutter speed: auto PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds Synchronous system: internal S/N ratio: ≥48dB (AGC off) Gamma correction: 0.45 Composite video out signal: 1.0Vp-p, 75Ω White balance: auto Water resistance grade: IP66 Power source: 12V DC, 450mA Dimensions: 150 x 100 x 95mm Weight: 1,500g
