1/3-inch Sony CCD Resolution: 420TVL 3.6, 6, 8, and 12mm lens (optional) Minimum illumination: 0 lux (IR LED on) Standard 24 pieces IR LEDs IR distance: 20m Power supply: 12V DC

Pixim super WDR CCTV camera 125dB Resolution: 500TVL Video format: PAL/NTSC Switch: 4 dip Three-dimensional bracket Power: 12V DC Lens: 4 to 9mm quality lens (auto lens) Dimensions: 91 x 128mm Weight: 390g

Image sensor: 1/3-inch Sony super HAD CCD Horizontal resolution: 540TVL Scanning area: 4.9 x 3.7mm Pixels: PAL: 752 x 582 pixels NTSC: 768 x 494 pixels Signal system: PAL/NTSC Usable illumination: 0.8 lux/F1.2 S/N ratio: more than 48dB Electronic shutter: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds Gamma characteristic: 0.45 Auto gain control: automatic Auto white balance: automatic Back light compensation: automatic Synchronous system: internal Auto iris control: video/DC Video output: 1.0Vp-p, 75Ω and BNC connector IR viewing distance: 20m Power consumption: 150mA Operating temperature: -10 to +50?C Material: ABS plastic cover Power supply: 12V DC Dimensions: ?140 x 91mm Weight: 323g

CCD type: color sharp 1/4-inch Pixels: PAL: 500 x 582 NTSC: 510 x 492 Scanning system: PAL and NTSC Horizontal resolution: 420TVL Minimum illumination: 1.0 lux and F1.2 S/N ratio: more than 48dB Video output: 1.0Vp-p, 75 ohms Automatic gain control White balance: automatic Backlight compensation: automatic Exposure mode: EE Electronic shutter: 1/50 (1/60) to 1/100,000 seconds Gamma correction: 0.45 Internal synchronization system Lens: 3.6mm (standard) Power supply: 12V DC Operating temperature: -20 to 50 degree Celsius

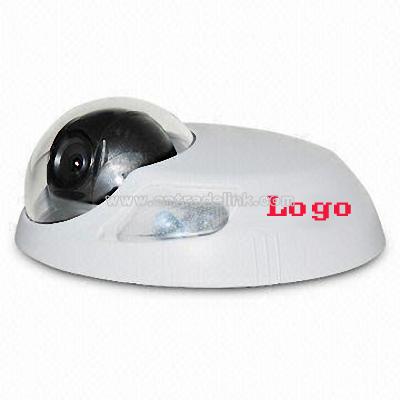

Features: Thinnest dome camera Human-based three-dimensional angles can be installed in any angle Short-range IR LED is very suitable indoor or in elevators 2.8-inch wide angle design, beautiful and graceful Specifications: Sensor: 1/3-inch Sony CCD (Korea DSP) Resolution: 520TVL Video format: PAL/NTSC Vision range: Horizontal: 30° Vertical: 0 to 90° Minimum illumination: 0 lux (IR on) Synchronization mode: internal White balance: automatic BLC: automatic IR range: 10m AGC: automatic AEC: automatic Power consumption: <200mA Power: 12V DC Lens: 2.8/3.6mm (optional) Dimensions: 100 x 90 x 30mm Weight: 100g

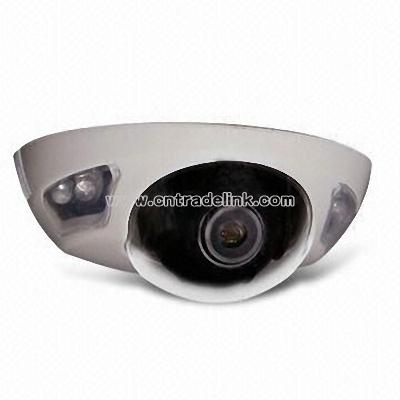

CCD IR dome camera Image sensor: 1/3-inch Sony CCD Resolution: 420TVL Video format: PAL or NTSC Vision range: Horizontal: 30° Vertical: 0 to 90° Minimum illumination: 0 lux (IR on) Synchronization mode: internal White balance: auto Power consumption: <200mAh Power: 12V DC Lens: 2.8/3.6mm (optional) Dimensions: 100 x 90 x 30mm Weight: 100g

Image sensor: 1/3-inch B/W LG Pixels: CCIR: 512 x 582 EIA: 512 x 492 Scanning system: CCIR/EIA Horizontal resolution: 480TVL Minimum illumination: 0.03 lux/F1.2 S/N ratio: more than 52dB Video output: 1.0Vp-p/75Ω AGC: on (low)/off (high) switchable Backlight compensation: on/off switchable Internal synchronization Exposure mode: EE /AI switchable Electronic shutter: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds Gamma correction: 0.45 Auto iris control: video/DC switchable Lens mount: C/CS Power supply: 12V DC Operating temperature: -20 to +50 degree Celsius Dimensions: 118 x 108mm Weight: 485g

54 built-in infrared lights Auto black/white below 0 lux IP55 waterproof for any harsh environment Built-in 6 to 15mm varifocal manual iris lens Focal length/focusing adjustment for external lens

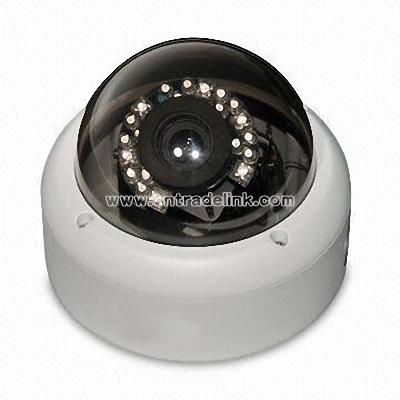

Image sensor: 1/3-inch Sony CCD Horizontal resolution: 540TVL Pixels: PAL: 752 x 582 pixels NTSC: 768 x 494 pixels TV system: PAL/NTSC Sensing area: 4.9 x 3.7mm Lens: 4, 9/2.8 to 11mm manual or DC M12 lens (optional) Auto iris lens: DC driver Synchronization system: internal Minimum illumination: Color: 0.5 lux/F1.2 B/W: 0.05 lux/F1.2 0 lux (IR on) S/N ratio: 48dB Gamma modification: 0.45 Gain control: automatic B/L compensation: on/off Electronic shutter: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds Video output: 1Vp-p/75Ω White balance: automatic IR distance: 15 to 20m Power consumption: 12V DC: 100mA IR on: 400mA (without infrared LED, 12V DC/24V AC for optional) Operating temperature: -20 to +50°C Dimension: ?140.97 x 106.73mm

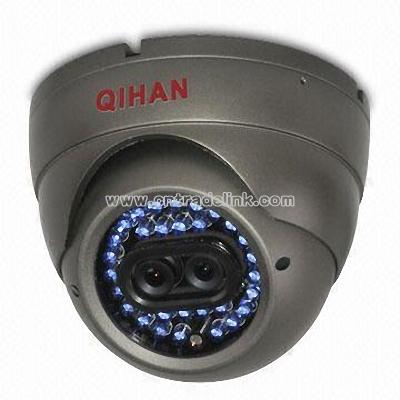

Image sensor: 1/3-inch Sony CCD Horizontal resolution: Color: 480TVL B/W: 600TVL Signal system: PAL/NTSC Image sensor: 1/3-inch Sony/ex-view CCD IR distance: 25 to 35m Lens: 6 or 3.6mm Dual MTV 6mm or 3.6mm IR lens, has a wide viewing angle Exquisite design, precise circuit and structure, incarnated the highest technology Minimum illumination: 0.5 lux/F1.2 (LED off) and 0 lux (LED on) Effective pixels: PAL: 752 x 582 pixels NTSC: 768 x 494 pixels S/N ratio: more than 52dB Electronic shutter: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds White balance: automatic AGC/BLC: automatic IR series distance: 25 to 35 meters Viewing angle: 60° LED wavelength: 30 units, 850nm Average lifespan: 20,000 hours Warranty lifespan: 6,000 hours Waterproof grade: IP65 Body: aluminum Composite video output (1.0Vp-p, 75Ω terminated) Power supply: 12V DC, 450mAh (±10%) Operating temperature: -10 to +50°C Weight: 1,100g

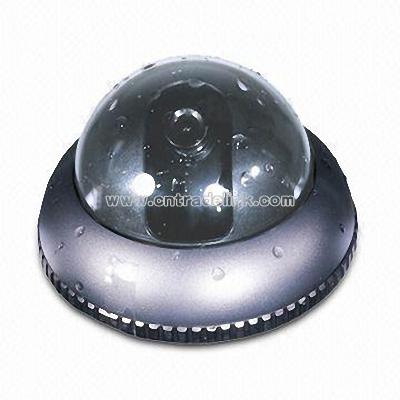

Dome camera: AVC-501G 1/3-inch Sharp CCD dome camera 450TVL Stylish dome enclosure High picture quality Weather proof IP55 3.6/6mm optional lens Electronic shutter control Auto white balance Sync: internal TV system: PAL/NTSC Power: 12V DC low power consumption Digital noise reduction: DNR S/N rate: ≥48dB Weight: 400g Dimension: 108 x 74mm

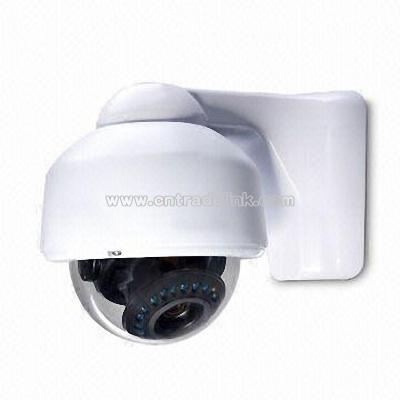

Dome camera with D-WDR, high spot light BLC, 600TVL Image sensor: 1/3" Sony CCD Resolution: 600 TVL PAL/NTSC (optional) Mini illumination: 0.00001 Lux IR range: 20m IP 66 4-9mm high quality lens (auto lens) Three-dimension bracket inside Power DC 12V

1/3-inch Sony low lux CCD Pixels: PAL: 795 x 596 NTSC: 811 x 508 Horizontal resolution: max 540TVL 25m IR night vision 3.6mm lens AL casing, strong and beautiful Cable built-in bracket dracket design, convenient for installation Scanning system: PAL/NTSC Level synchronization frequency: PAL: 15.625kHz NTSC: 15.734kHz Clock frequency: PAL: 19.3125 NTSC: 19.0699 Scanning system: 2:1 deinterlacing Minimum illumination: 0.01Lux (0Lux when infrared light open) Synchronization system S/N ratio: 48dB Electronic shutter: PAL: 1/50-1/100,000sec NTSC: 1/60-1/100,000sec Gamma correction: 0.45 Video output: 1Vp-p, 75 Ohms AGC: auto Power supply: 12V DC (±10%) Current: 250mA Carton size: 590 x 360 x 200mm Dimensions: 96 x 96 x 63mm Weight: 0.11kg Operating temperature: -10 to 45 degrees Color: white/black

Image sensor: 1/4-inch Sony super HAD Signal system: PAL/NTSC Horizontal resolution: 480TVL Minimum illumination: 0 lux Auto gain control, white balance and backlight compensation Lens: 3.6 to 79.2mm S/N ratio: 50dB Electronic shutter: PAL: 1/50 to 100,000 seconds NTSC: 1/60 to 1/100,000 seconds Working temperature: -20 to +50 degree Celsius Storage temperature: -10 to +50 degree Celsius

Image sensor: 1/3-inch Sony CCD Pixels: PAL: 512 x 582 NTSC: 512 x 492 Scanning system: PAL/NTSC Horizontal resolution: 420TV lines Synchronization: internal Minimum illumination: 0 lux/F1.2 (IR LED on) Backlight compensation: on/off switchable Shutter speed: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds White balance: automatic Lens: 6mm standard lens (3.6, 8 and 12mm optional) IR LED: 30 pieces x ?5mm IR wavelength: 850nm IR viewing range: 25 to 30m S/N ratio: ≥48dB Gamma correction: 0.45 Video output: 1Vp-p, 75Ω Power supply: 12V DC, 500 to 1,000mA Operating temperature: -20 to 50 degree Celsius Dimension: 122 x 66 x 73mm Weight: 405g

CCD type: color Sony 1/3-inch CCD Pixels (H x V): PAL: 512 x 582 NTSC: 512 x 492 Scanning system: PAL and NTSC Horizontal resolution: 420TVL Minimum illumination: 0Lux (Led on) S/N ratio: more than 50dB Video output: 1.0Vp-p, 75 Ohms AGC: auto White balance: auto Backlight compensation: auto Exposure mode: EE Electronic shutter: 1/50 (1/60) to 1/100,000 seconds Gamma correction: 0.45 Synchronization system: internal synchronization night viewing distance: 90m White LEDs: 24 pieces F8 LEDs Lens: 12mm lens Power supply: 12V DC ±5% Operating temperature: -20 to 50 degrees

Image sensor: 1/3-inch Sony and 1/4-inch sharp color CCD Horizontal resolution: 420, 480 and 520TVL TV system: PAL or NTSC IR LED: 5mm x 24 pieces IR distance: 20m Lens: 12mm CS mount big lens Synchronization system: internal IR status: under 10 lux by CDS Usable illumination: 0 lux/F2.0 (LED on) S/N ratio: 48dB (AGC off) Gamma correction: 0.45 Video out: composite signal (1.0Vp-p) Scanning system: PAL: 625TVL and 50 fields/second NTSC: 525TVL and 60 fields/second Electronic shutter time: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds White balance: automatic Power source: 12V DC, 500mA Operating temperature: -10 to 50 degree Celsius, 85% RH

CCD type: 1/3-inch Sony Pixels: P: 500 x 582 N: 510 x 492 Scanning system: PAL/NTSC Horizontal resolution: 420TVL Synchronization: internal Minimum illumination: 0 lux/F1.2 (IR LED on) Backlight compensation on/off switchable Electronic shutter 1/50(1/60), 1/100,000seconds White balance automatic Lens standard lens 6mm (3.6, 12mm optional) IR LED ф5×30pcs IR wavelength: 850nm IR viewing range: 15 - 20m S/N ratio: ≥48dB Gamma correction: 0.45 Video output: 1.0Vp-p/75Ω Operation temperature: -20 - 50℃ Power supply: DC 12V (750 - 1,000mA) Dimensions: 165 x 87 x 64mm Weight: 276g

Signal system: PAL/NTSC Image sensor: 1/4-inch Sony super color CCD Picture element: PAL: 752 x 582 NTSC: 768 x 494 Horizontal resolution: 480TVL Minimum illumination: 0.01 lux/F1.2 Control: RS-485 Protocol: Pelco-D; Pelco-P Communication baud: 2400/1200/9600 ID: optional S/N ratio: 52dB (AGC off) Electronic shutter: PAL: 1/50 - 1/100,000 NTSC: 1/60 - 1/100,000 Gamma: 0.45 Lens: zoom: 22x optical zoom and 10x digital zoom Lens: 3.9 - 85.8mm Iris: automatic White balance: automatic Gain control: automatic Sync system: INT Video output: composite video output (1Vp-p 75Ω terminated) Vandalproof criterion: IP65 Supplied power: 12V AC, 1 to 2A

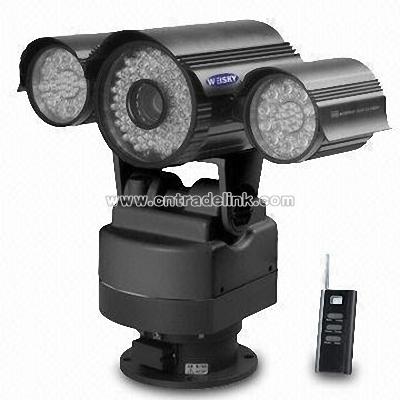

1/4-inch Sony CCD camera Resolution: 420TVL Lens: 27x zoom F: 3.5 to 88.8mm Level rotate angle: Pan: 0 to 350°C Tilt: +/-45°C Rotate speed: Pan: 6°C/sec Tilt: 3°C/sec LED IP66 standard moisture protection Working temperature: -30?C optional Video format: PAL/NTSC S/N ratio: ≥60dB Minimum illumination: 0.05 lux Mirror: vertical, horizontal, and rotation Electronic amplification: no Image adjustment: yes Color/black: yes Motion detection: yes With remote control IR distance: 150m Power input: 220V AC, 24V DC
