The T-Equaliser Music T Shirt is made from 100% cotton Chest size: Small: 42.5 inches Medium: 45 inches, Large: 47.5 inches Available in Blue or Red 1 x Battery pack and sound sensor Panel is powered by a detachable battery pack The battery pack can be unplugged for washing the t-shirt The t-shirt is hand wash only Requires 4 x AAA Batteries (not included)

The T-Equaliser Music T Shirt is made from 100% cotton Chest size: Small: 42.5 inches Medium: 45 inches, Large: 47.5 inches Available in Blue or Red 1 x Battery pack and sound sensor Panel is powered by a detachable battery pack The battery pack can be unplugged for washing the t-shirt The t-shirt is hand wash only Requires 4 x AAA Batteries (not included)

Image sensor: 1/3-inch Sony CCD Pick-up device: PAL: 752 x 582 pixels Horizontal resolution: 420 or 480TVL Minimum illumination: 0.5 lux/F1.2 and 0.3 lux/F1.2 S/N ratio: ≥50dB Electronic shutter: PAL: 1/50 to 1/100,000s Backlight compensation: BLC on/off Level angle: 360 degrees Vertical angle: 0 to 50 degrees SYNC system: internal Video output: 1.0Vp-p/75Ω Power: 12V DC Consumption: 12V DC/100mAh Lens: 4 to 9mm (user can select) Temperature: -10 to +50°C (14 to 122°F) Dimensions: 131 x 95mm Weight: 450g Each part of this series can be sold separately: S C-DF300, DF400 and DF500

Image sensor: 1/3-inch Sony CCD Sensitive area: 4.9 x 3.7mm TVL system: PAL/NTSC Pixels: PAL: 500 x 582 pixels NTSC: 510 x 492 pixels Horizontal resolution: 420, 480, and 520TVL Lens: 4mm Electronic shutter time: 1/50 (1/60) to 1/100,000 seconds S/N ratio: ≥48dB (AGC off) White balance: automatic Illumination: 0 Lux, 1.2 (LED on) Video output: 1.0Vp-p/75Ω (BNC) Power consumption: IR on 450mAh IR wavelength: 850nm IR LED: 18 pieces IR distance: 30m IR status: under 10 Lux by photo sensor auto control Power supply: 12V DC Dimension: 120 x 90mm

Sensor: 1/4-inch Sharp HAD CCD Picture element: PAL: 500 x 582 NTSC: 510 x 492 Horizontal resolution: 420TVL Minimum illumination: 0 lux (infrared lamps are on) Synchronizing system: internal S/N ratio: >48dB Gamma characteristics: 0.45 Auto electronic shutter: 1/50 to 1/100,000sec (on/off) Infrared distance: 10m Infrared wavelength: 850mm Video output: 1.0Vp-p, 75Ω negative BNC Built-in lens: 3.6mm System of signal: PAL/NTSC Power supply: 12V DC Power consumption: 120mA (infrared turn on maximum 400mA) Operating temperature: -10 to 50°C Storage temperature: -30 to 80°C Dimensions: 110 x 75mm Weight: 200g

Image sensors: 1/4-inch Sharp 1/4-inch Sony 1/3-inch Sharp 1/3-inch Sony Signal system: PAL and NTSC Sensing area: 3.6 x 2.7mm Effective pixels: PAL: 500 x 582 pixels NTSC: 510 x 492 pixels Horizontal resolution: 420 to 480TVL Lens mount: 3.6, 6, 8 and 12mm (selectable) Built-in back light compensation Electronic shutter: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds S/N ratio: greater than 48dB Minimum illumination: 0 lux/1.2 Automatic tracking white balance Video output: 1.0Vp-p, 75Ω Infrared wavelength: 850nm LED: 18 pieces Infrared lamp irradiation distance: 20m Illumination for infrared turn on: greater than 3 lux Voltage: 12V DC Dimensions: 95 x 80mm

Image sensor: 1/3-inch Sony color CCD Horizontal resolution: 420TVL Minimum illumination: 0.8 lux 3.5 to 8mm lens Vandal dome

Pickup device: 1/3-inch Sony CCD Scanning system: PAL: 500 x 582 pixels Horizontal resolution: 420TVL Minimum illumination: 0.2 lux/F2.0 S/N ratio: >48dB Electronic shutter: PAL: 1/50 to 100,000 seconds NTSC: 1/60 to 1/100,000 seconds AGC: on Auto white balance: on Backlight compensation: auto Level angle: ±180 Vertical angle: 0 to 90° Internal synchronization Video output: 1Vp-p/75Ω Power supply: 12DC Power: 1.44W, 80mAh Lens: f3.6mm/F2.0 System temperature: -10 to +50°C Size: 108 x 70mm Weight: 0.13kg

Image sensor: 1/3-inch Sony super HAD CCD 1/3-inch Sony color CCD 1/4-inch Sony color CCD 1/4-inch Sharp color CCD Horizontal resolution: 540TVL 480TVL 420TVL Signal system: NTSC/PAL Minimum illumination: 0 lux (IR on) S/N ratio: more than 48dB Video output: 1.0Vp-p, 75 ohms Electronic shutter speed: NTSC: 1/60 to 1/1,000,000 seconds PAL: 1/50 to 1/1,000,000 seconds Gamma correction: 0.45 Synchronization: internal Power supply: 12V DC Operating temperature: -20 to 50 degree Celsius

Image sensor: 1/3-inch Sony Horizontal resolution: 420/480/520TVL TV system: PAL/NTSC Lens: 4 to 9mm, 6 to 15mm, 9 to 22mm, varifocal (optional) LED: ￠8 IR LED 30 pieces IR series distance: 50m Synchronization system: internal synchronization Usable illumination: 0.00 Lux S/N ratio: ≥48dB (AGC off) Gamma characteristic: 0.45 Video output: 1.0Vp-p, 75Ω Scanning system: PAL: 625TV lines, 50 fields/second NTSC: 525TV lines, 60 fields/second Electronic shutter time (auto): PAL: 1/50 to 100,000 seconds NTSC: 1/60 to 1/100,000 seconds Operating temperature: -10 to 50℃, 95% RH Storage temperature: -20 to 60℃, 95% RH White balance: automatic Power supply: 12V DC ± 10%, 1,000mAh

20m plastic IR dome camera Image sensor: 1/3-inch Sharp color CCD Horizontal resolution: 420TVL TV system: PAL/NTSC IR LED: diameter 5 x 48 pieces, IR distance: 40m Lens: 3.6mm lens (optional) Synchronization system: internal IR status: under 10 lux by CDS Usable illumination: 0 lux/F2.0 (LED on) IR power on: CDS auto control S/N ratio: 48dB (AGC off) Gamma correction: 0.45 Video out: composite signal (1.0Vp-p, 75 ohms) Scanning system: PAL: 625 lines, 50 field/second NTSC: 525 lines, 60 field/second Electronic shutter time: PAL 1/50 to 1/100,000 seconds NTSC 1/60 to 1/100,000 seconds White balance: auto Power source: 12V DC, 450mA Dimensions: 122 x 83 x 83mm Weight: 1,200g

Sensor device: 1/3-inch Sharp super CCD Effective pixels: PAL: 752 (H) x 582 (V) NTSC: 768 (H) x 492 (V) Horizontal resolution: 420 TV lines Min. illumination: F1.2, 0.8 lux Signal system: PAL/NTSC Lens inside:6mm lens Video output: 1.0Vp-p 75 ohms Power supplier voltage: DC 12V (+/- 10%)/300MA Operation temperature: -20 to +55 deg. C 18 LEDs

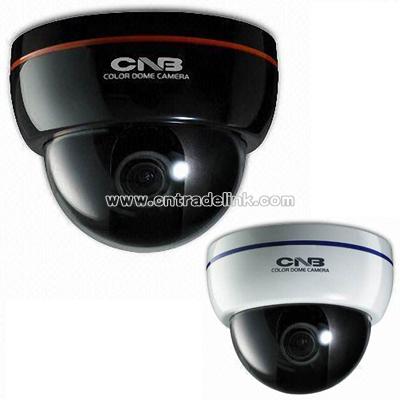

1/3" Sony Super HAD CCD Ultra high resolution: 600 TV lines BW 650TV Lines) Built-in DC Iris Vari-focal lens (f= 4 to 9mm) Minimum illumination: 0.1Lux OSD, DNR Auto white balance AGC, SBLC, flickerless Motion detection, privacy zone, mirror function 3-axis movement for free lens rotation 92m dome size (Option) RS-485 (Pelco-D, CNB) interface

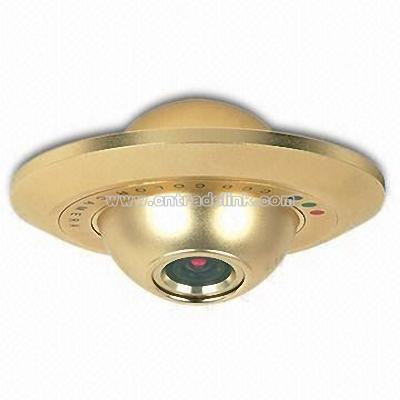

Image sensor： 1/3-inch Sony CCD Pixels： PAL: 500 x 582 NTSC : 510 x 492 Signal system： PAL/NTSC Synchronization system： internal synchronization Horizontal resolution： 420TVL Minimum illumination： 0.8 lux/F1.2 S/N ratio： ≥48dB Shutter speed： 1/50 (1/60) to 1/100,000 seconds Video output： BNC 1.0Vp-p, 75Ω White balance： auto Backlight compensation： default (off) AGC： default (off) Electronic shutter： default (on) Power consumption： 12V DC, 1.4W Lens： 3.6mm Cosmetic： gold/silver Outside carapace: flying disk Dimension： Diameter: 100mm Height: 52mm

Pan: 355 degrees rotation Tilt: 90 degrees rotation Speed: 20 degrees per second Image sensor: 1/4-inch Sharp CCD Horizontal resolution: 420TVL Picture element: Pal: 500 x 582 NTSC: 510 x 492 Lens: 8mm,12mm,16mm selectable Minimum illumination: 0 lux/F1.2 S/N ratio: more than 48dB Gamma: 0.45 Auto white balance: on/off Auto gain control: on/off Auto electronic shutter: 1/50 ~ 1/100,000 seconds, on/off Back light compensation: on/off Video output: 1.0Vp-p/75 ohms Lens mount: C/CS Power supply: 12V DC Power consumption: 150mAh Operating temperature: -10 to 50 degree Celsius Dimensions: 150 x 150 x 110mm Net weight: 470g Packing: standard box packing

Each part of this set can be sold separately: SC-7320, SC-7310, SC-732, and SC-731 Sensor: 1/3-inch Sony CCD TV system: PAL/NTSC Synchronization system: internal Resolution: 450, 540, 420, and 480TVL Video browse: 180 degrees rotate Angle of lens: Vertical: 170 degrees adjustable S/N ratio: ≥ 50dB Minimum illumination: 0.1 lux (F1.2) AGC: +18dB maximum BLC: on/off AEC: on/off Mirror: on/off Voltage: 12V DC (could change as 12V/24V) Power consumption: less than 250mA (12V DC)/160mA (24V AC) Lens: 3.5 to 8mm IR distance: 15m Operation temperature: -10 to 50 degree Celsius (within 85% RH) Storage temperature: -20 to to 65 degree Celsius(within 85% RH) Dimension: 92.5 x 139mm

IR Dome Color CCD Camera Build-in 3.6/6/8/12mm lens Diameter 5:28 pieces + diameter 3:26 pieces IR LED Effective viewing distance: 50m TV system: PAL/NTSC Indoor Minimum illumination of 0 Lux (LED on) The description of different chips are as follows: HQ Resolution: 520TV lines PAL (H x V): 752 x 582 NTSC (H x V): 768 x 494 Current: 500mA Illumination of 0.4 Luf/1.2 STH: Image sensor: 1/3-inch Sony Resolution: 480TV lines PAL (H x V): 752 x 582 NTSC (H x V): 768 x 494 Current: 500mA Illumination of 0.5 Luf/1.2 STL: Image sensor: 1/3-inch Sony Resolution: 420TV lines PAL (H x V): 500 x 582 NTSC (H x V): 510 x 492 Current: 450mA Illumination of 0.8 Luf/1.2 SFL: Image sensor: 1/4-inch Sony Resolution: 420TV lines PAL (H x V): 500 x 582 NTSC (H x V): 510 x 492 Current: 450mA Illumination of 0.8 Luf/1.2 PTL: Image sensor: 1/3-inch Sharp Resolution: 420TV lines PAL (H x V): 500 x 582 NTSC (H x V): 510 x 492 Current: 400mA Illumination of 1.0 Luf/1.2 PFL: Image sensor: 1/4-inch Sharp Resolution: 420TV lines PAL (H x V): 500 x 582 NTSC (H x V): 510 x 492 Current: 400mA Illumination of 1.0 Luf/1.2 AGC: on/off Gamma characteristic: above 0.45 White balance: automatic Backlight compensation: on/off S/N ratio: greater than 48dB Power supply: 12V DC

Image sensor: 1/3-inch Sony super HAD CCD HQ1 Resolution: 540TVL Optional resolution: NTSC: 768 x 494 pixels PAL: 752 x 582 pixels TV system: PAL/NTSC Sensor size: 4.9 x 3.7mm Synchronization system: internal Minimum illumination: 0 lux (IR on) S/N ratio: more then 48dB Electronic shutter: NTSC: 1/60 to 1/100,000sec PAL: 1/50 to 1/100,000sec Lens: 3.6/6mm DaiWon fixed lens option Gamma: 0.45 White balance: auto AGC: auto Video output: 1.0Vp-p composite video output, 75Ω LED: 24EA LED IR distance: 10 to 20m Power supply: 12V DC Power consumption: 200mA/400mA (IR on) Operation temperature: -10 to 50°C

1/4-inch Sharp CCD dome camera 420TVL Stylish dome enclosure High picture quality Weather-proof: IP55 3.5 to 8mm built-in varifocal lens Electronic shutter control Auto white balance Sync: internal TV system: PAL/NTSC Power: 12V DC Digital noise reduction: DNR S/N rate: ≥48dB Weight: 500g Dimension: 115 x 86mm

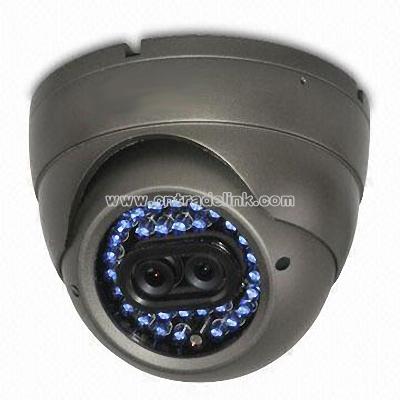

Image sensor: 1/3-inch Sony CCD Horizontal resolution: Color: 480TVL B/W: 600TVL Signal system: PAL/NTSC Image sensor: 1/3-inch Sony/ex-view CCD IR distance: 25 to 35m Lens: 6 or 3.6mm Dual MTV 6mm or 3.6mm IR lens, has a wide viewing angle Exquisite design, precise circuit and structure, incarnated the highest technology Minimum illumination: 0.5 lux/F1.2 (LED off) and 0 lux (LED on) Effective pixels: PAL: 752 x 582 pixels NTSC: 768 x 494 pixels S/N ratio: more than 52dB Electronic shutter: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds White balance: automatic AGC/BLC: automatic IR series distance: 25 to 35 meters Viewing angle: 60° LED wavelength: 30 units, 850nm Average lifespan: 20,000 hours Warranty lifespan: 6,000 hours Waterproof grade: IP65 Body: aluminum Composite video output (1.0Vp-p, 75Ω terminated) Power supply: 12V DC, 450mAh (±10%) Operating temperature: -10 to +50°C Weight: 1,100g
