Available in 2 specifications: 1/3-inch Sony color super HAD CCD, 420TVL and 0.5 Lux 1/3-inch Sony color super HAD CCD, 480TVL and 0.8 Lux TV system: PAL/NTSC Shutter speed: 1/50 (1/60) to 1/100,000 seconds White balance: on/off switchable Backlight compensation: on/off switchable Auto iris lens: DC/video switchable Lens mount: CS/C (C mount adapter optional) Video signal output: 1.0V p-p, 75 Ohms and BNC Power requirement: 12V DC Power consumption: less than 2.8W Operating temperature: -10 to + 50?C CE certified

1/3-inch Sony super HAD color CCD (410K Pixels, 540TV lines) Digital day & night color camera, various OSD menu Min. illumination: color 0.5Lux (F1.2), C/CS mount, AC 230V

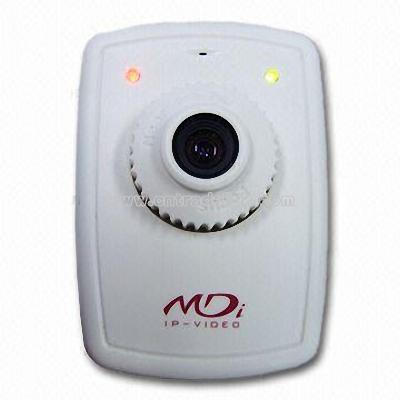

Specification 1/4-inch VGA Progressive CMOS Resolution: 640 x 480 30 frame per second H.264/MJPEG dual encoding & transmission 2-way audio encoding & transmission The best possible video quality No tearing effect on a moving image

1/3-inch Sony color super HAD IT or SuperHAD II Low Lux CCD Sony SS11X&HQ1 digital signal processor (DSP) Allows better picture quality and full function control High-resolution 450 (Low Lux), 520, 540TVL (sense up), 550TVL (dual sense) Low sensitivity 0.05/0.3/0.05/0.005 Lux at F=1.2 Outstanding signal to noise ratio better than 48dB/50dB True day/night OLP switching function (optional) Automatic internal/line lock switching (optional) Shutter/auto-iris; BLC, AGC on/off, DC/video drive (optional) DC 12V

Feature Ultra CMOS 1/3" Sensor (540TV Lines : 720 x 540 pixels) Wide Dynamic Range (WDR) more then 120dB, True Day & Night(ICR) Color: 0.5Lux(F0.95), 0.08Lux(F0.95, Slow Shutter), Progressive Scan On/Off, 4X Digital Zoom, Dual Power(24VAC/12VDC) Specification Image sensor: 1/3-inch DPS sensor Dynamic range: max. 120dB Horizontal resolutoion: 540 TV lines Picture size (horizontal x vertical): 720 x 540 pixel Transfer rate: 50fps (PAL); 60fps (NTSC) Light sensitivity: 0.5 Lux at F0.95/ 50 IRE, 0.08Lux (slow shutter) at F0.95/50 IRE Slow shutter: up to 8x S/N ratio: 48dB Signal formats: CVBS, 75 Ohms (PAL and NTSC) Synchronization: internal Adjustable white balance: ATW, AWB, manual (2,000 to 11,000K) Backlighting compensation: adjustable (up, down, backlight zone) AGC: brightness-offset and gain limit selectable Gamma correction: set by preset choice Progressive scan: on/off Presets: universal, details 1, Details 2, indoor/shadow, indoor, fluorescent, low light Digital zoom: 4x, panning & tilting Configuration: built-in OSD/remote controlled via UTC remote control Languages: English Power consumption: max. 4.5W Power supply: 24V AC/12V DC Temperature: 10 to 50; 0 to 35 degrees Recommended humidity: 0 to 90% non-considering

Image pick-up device: 1/4-inch Sharp color CCD Horizontal resolution: 380TVL Number of pixels (H x V): NTSC: 510 x 494 PAL: 500 x 582 Synchronization system: internal S/N ratio: ≥48dB (AGC off) Usable illumination: 1.0 Lux (F = 2.0) Video output: 1.0Vp-p, 75 Ohms Power supply: 12V DC ±10%, 200mA Electronic shutter time: On: NTSC: 1/60 to 1/1,00,000 second PAL: 1/50 to 1/1,00,000 second Off: NTSC 1/60 second PAL: 1/50 second Operating temperature: 10 to 50 degrees Celsius (RH: 95% maximum) Storage temperature: -20 to 60 degrees Celsius (RH: 95% maximum) Iris control: video/DC switchable Lens mount: C/CS White balance: on/off Backlight: on/off selectable Gain control: auto Dimensions (L x W x H): 204 x 115 x 97mm Weight: 450g

1/3-inch Sony super HAD color CCD (410K Pixels, 540TV lines) True day & night (ICR), various OSD menu Min. illumination: color 0.5Lux (F1.2), B/W 0.05Lux (F1.2) C/CS mount, AC 230V Built-in filter changeable mechanism (ICR) Excellent auto tracking white balance Muti OSD function built-in privacy, motion detection, mirror and so on

Manual electronic shutter C/CS mount DC/video drive auto iris High sensitivity Supports synchronous system S/N ratio: >48dB Shutter speed: 1/50 (1/60) to 1/100,000 seconds Auto tracking white balance Voltage: 12V DC Power consumption: 2.8W Video signal output: 1.0Vp-p, 75Ω Operating temperature: -10 to 50°C Image sensor: 1/2-inch Ex-view CCD Resolution: 480TVL Minimum illumination: 0.0008Lux at F1.2 Picture element: PAL: 500 x 582 pixels NTSC: 510 x 492 pixels Supports PAL/NTSC systems

1/3-inch Sony super HAD CCD sensor With electric shutter With IR filter Resolution: 420TVL Illumination: 0.05 lux Selectable AGC, BLC, and flickerless Supports standard C/CS mount lens Power: 12V DC Options: EL-C224R: 90 to 230V AC EL-C225R: dual voltage 12V DC/24V AC

Image sensor: 1/3-inch Sony super HAD CCD Signal system: NTSC/PAL Languages: NTSC: Korean, English, Spanish, and Japanese PAL: English, Spanish, German, and Italian Picture elements: NTSC: 768 x 494 pixels PAL: 752 x 582 pixels Synchronize system: 2:1 interface Horizontal resolution: 560TVL, B/W 700TV lines Minimum illumination: 0.002 lux S/N ratio: ≥50dB White balance: ATW/AWC/manual Gamma: internal/line lock selectable Alarm: 8 outputs Video output: 1.0Vp-p, 75 ohms Electronic shutter speed: 1/60 to 1/120,000 and 1/50 to 1/120,000 seconds OSD: yes BLC: low, medium, top, and closed AGC: low, medium, top, and closed DNR: low, medium, top, and closed Color/black: automatic Power consumption: 12V DC, 24V AC, 120mA Lens mount: C/CS mounts Working temperature: -10 to 50°C Dimensions: 65 x 62 x 134mm Weight: 355g

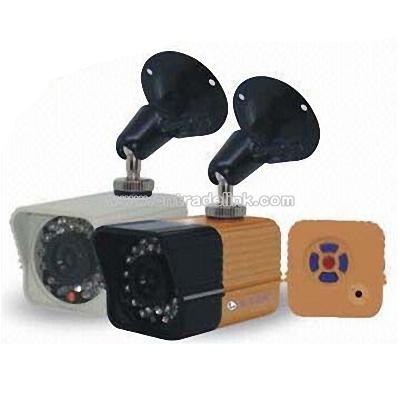

CCTV box camera Measures: 40 x 69mm OSD menu button IP66 waterproof design Signal system: PAL/NTSC DNR (digital noise reduction) function 0 lux with 3 IR LED, 32pcs IR distance: 20m (with 6mm lens) Lens provided: 3.6mm, 4mm, 6mm, 8mm, 12mm, and 16mm optional Supplied power: DC 12V (the price of power supply is not included in price list) Colors: complete white, whole black, sea green, silver, and gold

Image device: 1/3-inch DPS CMOS sensor Horizontal resolution: 540TV lines Minimum illumination: 0.8 Lux Ultra wide dynamic range: up to 120dB Enables excellent image quality in high-contrast environment Pixim's digital pixel system technology Advanced noise reduction Adjustable white balance OSD menu

Main features: 1/3-inch Sony super HAD CCD 3D advanced digital noise reduction filter 3 DNR DSP chip Day/night color black and white auto switch Digital wide dynamic 550TVL (color), 600TVL (B/W) Screen menu function Privacy area setting Low-power design Specifications: Total pixels: 795 x 595 Effective pixels: 752 x 582 Resolution: 550TVL Scanning system: 2:1 interlace Menu control: available Wide dynamic range: 52dB (128) Backlight compensation: BLC/HSBLC/off selectable S/N: 52dB (AGC off, weight on) Minimum illumination: 0.00001 Lux F1.2 (sense up 258x) White balance: ATW/AWB/indoor/outdoor/manual/AWC Shutter control: 1/60 to 1/120,000 seconds Sensitivity increase: auto/fixed/off Automatic gain: high/middle/low/off 3 DNR: off/on D-WDR: indoor/outdoor/off Motion detection: on/off Privacy area: on/off Mirror: off/mirror/V-rev/rotate Frozen image: on/off Video adjust: 0 to 31ft Day/night switch: color/auto/ext/BW Digital control: on/off Power: 12V DC, 120mA Lens: 3.6mm

CCTV box camera Image sensor: 1/3-inch Sony color CCD Horizontal resolution: 480TVL Minimum illumination: 0.1 lux Signal systems: NTSC/PAL Balanced illumination Auto gain control

Image sensor: 1/3-inch Sony super HAD CCD Signal system: 4.9 x 3.7mm Effective pixels (H x V)): PAL: 500 x 582 NTSC: 510 x 492 Horizontal resolutions: 420TV Lines Lens mount: CS/C mount (C-mount adapter option) Auto gain control: on/off switchable Backlight compensation: on/off switchable Electronic shutter: on/off switchable S/N ratio: more than 48dB (AGC off) Minimum illumination: 0.8Lux/F1.2 Shutter speed: 1/50 (1/60) to 1/100,000 seconds Auto iris lens: video/DC switch able Power consumption: 12V DC Dimensions: 121 x 65 x 60mm (100 x59 x 49mm)

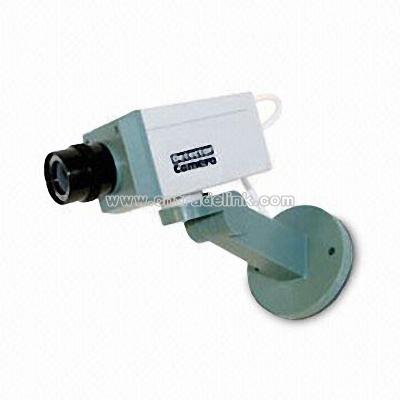

Rotate back and forth letting bad guy know someone is either watching, moving camera from remote location or camera automatically kicked on after it detected movement and is now recording Red LED light will turn on and then camera will begin to pan back and forth all by itself Non-functioning security camera, includes a features not seen on others Once camera detects motion/activity in front of camera (up to approximately 20ft) Powered by 2 x AA batteries (not included) this dummy cam include mounting hardware, screws and 6-inch of coaxial cable

Main features: Wide dynamic range 550TVL 0.001 lux (B/W) OSD control manual Privacy area setting Automatic gain, electronic shutter, white balance are adjustable Color black and white mode selectable Specification: Image sensor: 1/3-inch Sony vertical double-density iterline CCD Standard: NTSC/PAL Resolution: 550TVL Scanning system: 2:1 interlace Frequency sweeping: H： 15.734kHz V: 6.0Hz H: 15.625kHz V: 50Hz Synchronous system: internal/line-lock (24V AC only) Minimum illumination: Color: 0.004 lux B/W: 0.001 lux/AGC TYP, DSS 40X Automatic gain control: max/typ/min Gamma characteristic: 0.45/1/active mode1/active mode2 White balance: ATW/push/user Privacy area: 8 zones Dynamic range: x128 Shutter control: 1/60 to 1/100,000/1/50 to 1/100,000 seconds Digital slow shutter: off/on (2, 4, 6, 8, 10, 20, 40, 80, and 160x) IR sensitive: off/on (Videoc, CDS sensor) Day/night: off/on (Videoc, CDS sensor) Backlight compensation: off/bottom/left/right/top/center Wide dynamic: off/on (level adjustable) Motion detection: off/on (level control, area setting) Picture effect: B/W, Nega/Posi, H/V mirror, sharpness, freeze Flicker-free mode: off/on Manual shutter: 8 step (1/60/50),1/100/120, 1/250, 1/500, 1/1k, 1/2k, 1/4k, 1/10k Power: 12V DC/maximum 280mA, 24V AC/maximum 4.2W Brightness control: 32 step Temperature: -10 to +50℃ Humidity: 10 to +80% RH Lens: F3.5 to 8.0mm Varifocal lens Weight: 320g

Image sensor: 1/3-inch Sharp CCD Signal system: 4.9 x 3.7mm Signal system: PAL/NTSC Effective pixels (H x V): PAL: 500 x 582 NTSC: 510 x 492 Horizontal resolution: 420TV lines Lens mount: CS/C mount (C mount adapter option) Auto gain control: on/off switchable Backlight compensation: on/off switchable Electronic shutter: on/off switchable S/N ratio: more than 48dB (AGC off) Minimum illumination: 0.8 Lux/F1.2 Shutter speed: 1/50 (1/60) to 1/100,000 seconds Auto iris lens: video/DC switchable Auto tracking white balance Synchronization system: internal Video output: 1.0Mp-p 75 Ohms (BNC) Power consumption: less than 2.8W Video out: BNC Power consumption: 12V DC Dimensions: 121 x 65 x 60mm (100 x 59 x 49mm)

Image sensor: 1/3-inch Sony super HAD CCD Signal system: NTSC/PAL Languages: NTSC: Korean, English, Spanish, and Japanese PAL: English, Spanish, German, and Italian Picture elements: NTSC: 768 x 494 pixels PAL: 752 x 582 pixels Synchronize system: 2:1 interface Horizontal resolution: 560TVL, B/W 700TV lines Minimum illumination: 0.002 lux S/N ratio: ≥50dB White balance: ATW/AWC/manual Gamma: internal/line lock selectable Alarm: 8 outputs Video output: 1.0Vp-p, 75 ohms Electronic shutter speed: 1/60 to 1/120,000 and 1/50 to 1/120,000 seconds OSD: yes BLC: low, medium, top, and closed AGC: low, medium, top, and closed DNR: low, medium, top, and closed Color/black: automatic Power consumption: 12V DC, 24V AC, 120mA Lens mount: C/CS mounts Working temperature: -10 to 50°C Dimensions: 65 x 62 x 134mm Weight: 355g

Image sensor: 1/3-inch Sony super HAD CCD Illumination: 3 lux Minimum illumination: 1.0 lux/F1.2 Sensing area: 4.9 x 3.7mm Horizontal resolution: 480TVL Picture elements: PAL: 752 x 582 pixels NTSC: 768 x 494 pixels TV system: PAL or NTSC Video output: 1.0Vp-p, 75II composite, BNC x 1 S/N ratio: more than 48dB (AGC off/BW mode) Automatic tacking white balance Automatic gain control: on/off selectable Back light compensation: on/off selectable Electronic shutter: PAL: 1/50 to 1/100,000 seconds NTSC: 1/60 to 1/100,000 seconds Auto iris lens: video/DC switchable Synchronous system: internal Lens: CS/C mount adapter option Power consumption: less than 2.8W Power requirement: 12V DC, 24V AC Weight: 1.25kg
