Description:

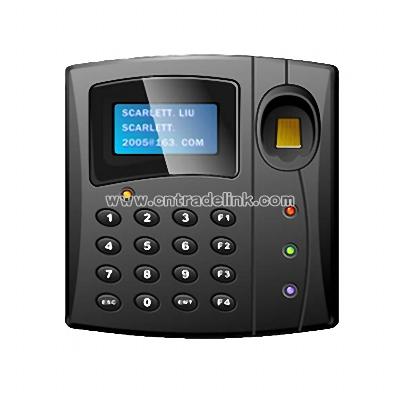

EL640-X is high performance and functionality EM125 KHz fingerprint controller with powerful access control and time attendance function. With high resolution sensor and stable fingerprint algorithm, EL640-X achieves high security and perfect application to meet customer requirement.
The system supplies 16 changeable time group, 10 holiday table, 30 kinds of alarm mode and 20 groups of alarm setting. Users can utilize such function to meet various management and high security requirement. Additionally 4 function keys on the backlight keypad area are designed for special clock-in/out.
Via related software, CV8460(S)-X supply three kinds of reports including Time Attendance report, Alarm Record search, and In/Out Record search. Furthermore, IOACCESS SDK available for customer's further application development.
Advantages:
1: 1 Verification
Able to store 4000 fingerprints (for 4MByte flash memory, expandable up to 8MByte)
Work modes: Card + Fingerprint, ID Number + Fingerprint, Card only, PIN only, Card+ PIN
Controller time correction
Able to repeatedly reading events from the controller, to guarantee that records do not lose
Build-in battery to ensure operation during power failure
External reader for Anti-passing (Wiegand port)
Data can be kept up to 10 years while power failure
Capable to set whether to record events in order to save memory capacity
Provide self-test code to detect during system failure
4 function keys on the backlight keypad area for special clock-in/out
Specifications:
Model: EL640-X
Power Supply: DC9V (9-24V), <250mA
Technology: EM 125KHz technology
Fingerprint Sensors: UPEK, 508 dpi, < 300ms, < 512 bytes (template size)
LCD: Large LCD 128*64 dots matrix with backlight
Display: 4 lines, 16 characters each line
1st line: Month/date, hour/minute/second and battery volume status as default
2ND, 3rd, 4th line: User-defined, such as Name, ID Number of cardholder, IP address, etc
Keypad: 3*4 keypads + 4 function keypads with backlight
Indicators: 4 LEDs (White LED: Keypad power indicator; Red LED: Reader power indicator; Green LED: Door open indicator; Yellow LED: Alarm indicator), One beep Buzzer
Memory: 4000 fingerprints (for 4MByte flash memory, expandable up to 8MByte), 32Kbyte EEPROM
Battery: Build-in Ni-MH battery, 6V/1800mAH
Interface: RS232 (10m), RS485 (1.2km), TCP/IP build-in (as optional)
Stand alone: Yes
Online with PC: Yes, up to 98 units
Baud rate: 9600-115200 Kbit/s (default 9600)
APB: External Wiegand26 reader
Alarm function: 20 groups of alarm setting, which could be activated according to timetable status
Time Schedule: Changeable 16 time group, each time group has 8 days including one holiday and each day has 5 time schedule, 10 holiday table
Log Capacity: 100, 000 records
Cardholder: 2000 (5000 or 10, 000 as optional)
Input device: 4 photocoupler isolation inputs (exit button, door state sensor, fire sensor, infrared sensor)
Output device: 2 TTL outputs (Source Current DC5V/5mA Max) and 2 relay outputs
Indoor/outdoor: Indoor
Operating temperature: -20o C~60o C/-4o F ~140o F
Operating Humidity: 20%~95% relative humidity non-condensing
Specifications are subject to change without notice.
