Outline dimensions: 88.9 x 80.7 x 51.5mm Fan dimensions: 70 x 70 x 25mm Rated speed: 4,800rpm±10% Bearing type: two ball bearing Voltage: 12V DC Fan noise level: 39.9dB Production weigh: 711±5g Assembling method: screw and backboard Recommended for: 2U Intel Xeon 3.6GHz (120W)

Socket type: 754, 939, 940, AM2, F AMD CPU clock speed (maximum): Sempron (up to 89W) Socket 754 (3400+, 2.0GHz) Socket AM2 (3800+, 2.2GHz) Athlon 64 (up to 89W): Socket 754 (3700+, 2.4GHz) Socket 939 (4000+, 2.4GHz) Socket AM2 (4000+, 2.6GHz) Athlon 64 FX (up to 104W): Socket 939 (FX-57, 2.8GHz) Socket 940 (FX-53, 2.4GHz) Athlon 64 X2 dual-core (up to 89W): Socket 939 (4400+, 2.2GHz) Socket AM2 (5600+, 2.8GHz) Phenom X2 triple-core (up to 95W): Socket AM2 (8600, 2.3GHz) Phenom X2 quad-core (up to 95W): Socket AM2 (9650, 2.3GHz, 9100e,3.2GHz) Opteron: Socket 939 (150, 2.4GHz) Socket 940 (150, 2.4GHz; 250, 2.4GHz; 850, 2.4 GHz) Dual-core Opteron: Socket 940 (275HE, 2.2GHz; 875HE, 2.2GHz) Second-Generation Opteron? Socket AM2 (1218HE, 2.6GHz) Socket F (8218HE, 2.6GHz; 2218HE, 2.6GHz) Third-generation Opteron (up to 75W): Socket F (8356, 2.3GHz; 2356, 2.3GHz) Cooler dimensions: 85 x 83.5 x 71mm Cooler weight: 384g Fan: Bearing type: 1B1S/entering bearing Rated voltage: DC 12V Dimensions: 80 x 80 x 25mm Speed: 1,800 to 3,000rpm (±10%) Airflow: 21.4 to 41.3cfm (±10%) Noise: 19 to 31dBA Interface material: high efficiency thermal compound Fan approved by CE, TUV, and UL

IntelR CPU clock speed (maximum): Pentium D 3.4GHz (95W) Prescott 3.4GHz (84W) IntelR core 2 Duo E6700 x 2.66GHz (65W) IntelR core 2 Duo E4300 1.8GHz (65W) Intel core 2 extreme x6800 2.93GHz (75W) All Celeron Cooler dimensions (mm): 89 x 89 x 67 Cooler weight (g): 402 Fan: Type: 12V/1B1S, 12V/entering bearing Dimensions (mm): 80 x 80 x 25 Speed (rpm): 3,200 (+/-10%) Airflow (CFM): 44.1 (+/-10%) Noise (dBA): 32 Interface material: high efficiency thermal compound, depends on air flow inside PC system Install appropriate case fan to provide enough air flow in PC system, then Idloo 5062 CU/(E) can support up to Pentium D 3.4GHz (95W), Prescott 3.4GHz (84W), IntelR core 2 Duo E6700 x 2.66 GHz (65W), IntelR core 2 Duo E4300 1.8 GHz (65W), IntelR core 2 extreme x6800 2.93 GHz (75W) and all Celeron CPUs Fan approved by CE, TUV and UL

Out line dimension: 50 x 50 x 28.5mm Fan dimensions: 40 x 40 x 10mm Bearing type: ball bearing Rated speed: 5,000rpm ±10% Voltage: 12V DC Installation: Backboard and screws Recommended for: Intel mobile Core 2 Duo T7000 Intel mobile Pentium T2060/T2080/T2130 Intel mobile Core 2 Duo T8100/T8300/T9300/9500/X9009 Intel mobile Celeron 400 Intel mobile Celeron 500

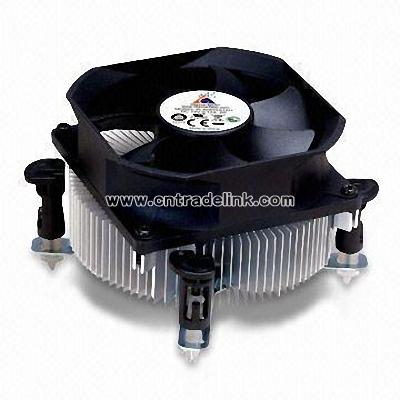

Igloo 5063 CU/(E): socket type LGA775 Intel? CPU clock speed Intel Celeron processor family 440 (35W) (maximum) Intel core? 2 duo desktop processor (65W) Intel? core? 2 quad processor (95W) Cooler dimension: 89 x 89 x 67mm Cooler weight: 402g Fan bearing type: 1B1S/entering bearing Rated voltage: 12V DC Dimension: 80 x 80 x 25mm Speed: 3200rpm (+/-10%) Airflow: 44.1cfm (+/-10%) Noise: 32dBA Interface material: high efficiency thermal compound Fan approved by CE, TUV, and UL

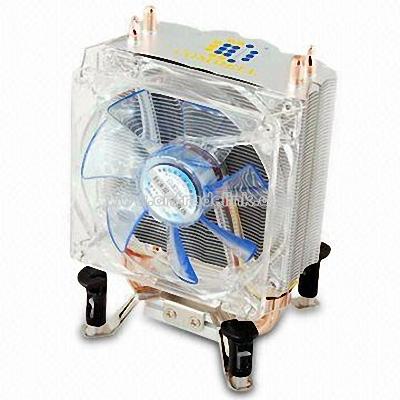

It utilities enhanced heat pipe technology for rapid and even heat transfer Two precision embedded hi-capacity U heat pipes and 55 high density aluminum fins for ultimate heat dissipation High-air pressure is delivered by 92mm high-performance quiet fan with crystal blue blades Four-blue LED embedded in translucent fan duct to add color to your CPU and case It is a multi-platform device for both Intel and AMD sockets A fan speed control unit is supplied giving RPM choice to the user Working of heat pipes: The heat pipe is filled with vaporization liquid Heat is absorbed in the evaporating section Fluid boils to vapor phase Heat is released from the top section via the fins and vapor condenses to liquid Liquid is returned to the evaporating section Features: Two U embedded copper heat pipes provide rapid and more even heat transfer 55 hi-grade aluminum fins ensure optimum cooling Direct heat pipe touch and aluminum heatsink maximize thermal performance four blue LED embedded in stylish translucent fan duct Hi-air pressure delivered by 92mm quiet fan with crystal blue blades Fan controller is supplied to adjust fan speed Multi-platform application for both Intel and AMD sockets Specifications: Product size: 95 x 84 x 140mm Fan size: 92 x 92 x 25mm Fan colors: blue, white, red with optional LEDs as per your requests Fan speed: 2,000rpm Heatsink skill: crimped fin Recommended for: AH941 775 Socket 775 P4 all Socket 775 Celeron-D all Socket 775 Core 2 all With other installation setup: Athlon 64 FX/64 X2 all Dual-core opteron all Sempron all Opteron all

Suitable for socket 754, 939, 940, AM2, and F For 95W Lightweight and low noise Suitable for AMD CPU cooling

Skill: skiving Outlook size: 90 x 90 x 58mm Fan size: 60 x 60 x 25mm Bearing type: two ball-bearing wires: 3 pin fan lifespan: 70,000 hours Rated voltage: 12V DC Fan speed: 4,200rpm ±10% Application: 2U Intel Xeon processor 5500 series For Intel LGA1366

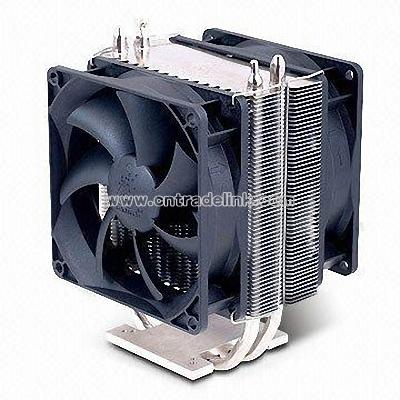

Features: Quality aluminum design with copper base High density aluminum fin PWM version: enhanced speed adjustable one 9cm axial fan with bullet blade Silent version: fixed speed two 9cm axial fans with bullet blade Two sinter heat-pipes with nickel coating Weight/noise performance Easy to install Multi-platform (Intel LGA775, LGA1366, AMD AM2) Specifications: Dimensions: 90 x 96 x 139mm Weight: 780g Fan bearing type: entering bearing Fan rated voltage: 12V DC Fan dimensions: 92 x 92 x 25mm (duo fans) Fan speed: 1,200rpm (±10%) per fan Fan airflow: 23CFM (±10%) per fan Fan noise: 17.7dBA per fan Interface material: high efficiency thermal compound

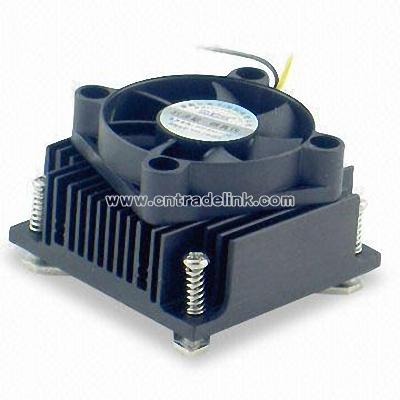

Cooler dimension: 50 x 50 x 40.5mm Cooler weight: 180.2g Fan bearing type: 1B1S/sleeve Fan rated voltage: 12V DC Fan dimension: 40 x 40 x 10mm Fan Speed: 6,000rpm (±10%) Airflow: 6.93cfm (±10%) Noise (dBA): 27

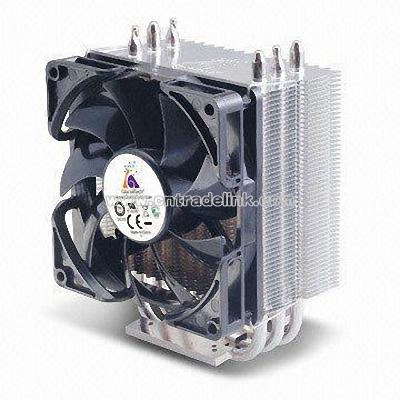

Features: Quality aluminum design with copper base High density aluminum fin PWM version: enhanced speed adjustable one 8cm axial Fan with bullet blade Silent version: fixed speed two 8cm axial fans with bullet blade Four sinter heat-pipes Weight/noise performance Easy to install Multi-platform Specifications: Cooler dimension: 97 x 97 x 71mm Cooler weight: 309g Fan bearing type: 1BIS/entering bearing Fan rated voltage: 12V DC Fan dimension: 80 x 80 x 20mm Wattage support: up to 105W Fan speed: 2,000rpm (+10%) Fan airflow: 33.0cfm (+10%) Fan noise: 21dBA

Cooler dimension: 50 x 50 x 22.5mm Cooler weight: 130.6g Fan bearing type: 1B1S/sleeve Fan rated voltage: 12V DC Fan dimension: 40 x 40 x 10mm Fan Speed: 6,000rpm (±10%) Airflow: 6.93cfm (±10%) Noise (dBA): 27

Outlook size: 95.0 x 95.0 x 58mm Heatsink size: 90.00 x 90.00 x 23.00mm Fan size: 95 x 95 x 25mm Fan speed: 2800±15 %RPM Bearing type: one ball bearing Heatsink skill: extrusion and copper insert Material: AL6063+C1100 Application: For Intel LGA1366 Socket Intel Core i7 Processor 2.93GHz Intel Core i7 Processor2.66 GHz Intel Core i7 Processor 3.2GHz

Applied industries: electronic and electrical products For example, family electric device, audiovisual, power applications, and communication device and more Specification: Color: white Thermal conductivity: 0.925W/m-K Thermal impedance: 0.229-in2/W Specific gravity: 2 Evaporation: 0.001% Bleed: 0.05% Dielectric constant A: 5.1 Viscosity: no flowing Thixotropic index: 380 ±10 Moment beared temperature: -50 to 240 degree Celsius Operation temperature: -30 to 180 degree Celsius Component: Silicone compounds: 50% Carbon compounds: 20% Metal oxide compounds: 30% Package: mini soft package, syringe package, and soft tube

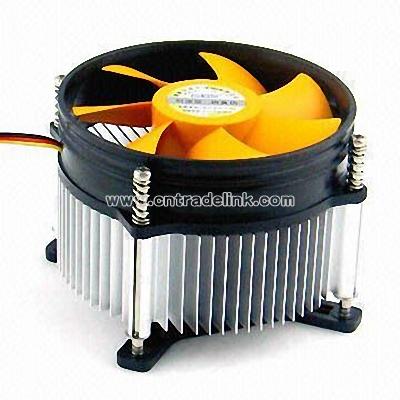

Outline dimensions: 98 x 98 x 58mm Fan dimensions: 92 x 92 x 25mm Bearing type: one ball Rated speed: 2,500rpm ±10% Voltage: 12V DC Intel P4 LGA775 Prescott 3.6GHz All serial Intel LGA775 (Celeron-D) All serial Intel Core 2 Duo Low noise Yellow fan blades

designed for all gaming and PC enthusiasts Lightweight CPU coolers with low noise, high performance and easy attaching clip Designed for Intel LGA 1156 processors Four models available: 1100 Silent/1100 Silent (E)/1100 Silent (2B) 1100 Light/1100 Light(E)/1100 Light(2B) 1100/1100(E)/1100(2B) 1100 PWM/1100 PWM(E)/1100 PWM(2B)

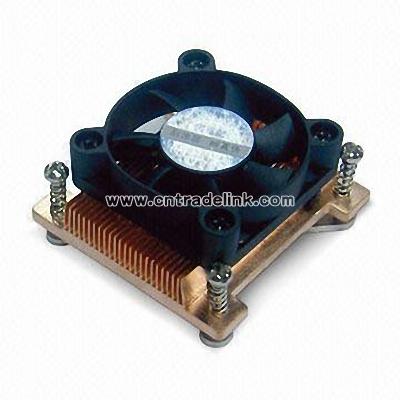

Heat sink material: copper Heat sink technique: skiving Outline dimension: 50 x 50 x 21mm Fan dimension: 40 x 40 x 10mm Bearing type: two ball Rated speed: 4,800rpm ±10% Voltage: 12V DC Assembling method: screw and backboard Recommendation: Intel Pentium M processor: 2.13Hz Intel Mobile Core Duo 1.66GHz

CPU support: Sempron ? socket 754 (3,400+, 2.0GHz): S socket AM2 (3,800+, 2.2GHz) Athlon ?64: Socket 754 (3700+, 2.4GHz) Socket 939 (4,000+, 2.4GHz) Socket AM2(4000+, 2.6GHz) Athlon ? 64 FX socket 939 (FX-53, 2.4GHz) Socket 940 (FX-53, 2.4GHz) Athlon ? 64 X2 dual-core: Socket 939 (4400+, 2.2 GHz) Socket AM2 (5600+, 2.8GHz) Phenom ? X2 quad-core: socket AM2 (9100e, 3.2GHz) Opteron ?: Socket 939 (150, 2.4GHz) Socket 940 (150, 2.4GHz; 250, 2.4GHz; 850, 2.4GHz) Dual-core Opteron ?: socket 940 (275HE, 2.2GHz; 875HE, 2.2GHz) Second-generation opteron ?: Socket AM2 (1218HE, 2.6GHz) Socket F (8218HE, 2.6GHz; 2218HE, 2.6GHz) Third-generation opteron ?: socket F (8,356, 2.3GHz; 2,356, 2.3GHz) Specifications: Model igloo 7223 light/(E) Socket type up to 89 Cooler dimensions: 77 x 67 x 52mm Cooler weight: 256g Fan: rated voltage: 12V DC Type: 1B1S/(entering bearing) Dimensions: 70 x 70 x 15mm Speed: 2,600rpm (±10%) Airflow: 18.4cfm (&#!77;10%) Noise: 21dBA Interface material: high efficiency thermal compound Fan approvals: CE, TUV, and UL

Socket type: 754, 939, 940, AM2, F AMD CPU clock speed (maximum): Sempron? (up to 89W) Socket 754 (3400+, 2.0GHz) Socket AM2 (3800+, 2.2GHz) Athlon? 64 (up to 89W): Socket 754 (3700+, 2.4GHz) Socket 939 (4000+, 2.4GHz) Socket AM2(4000+, 2.6GHz) Athlon? 64 FX (up to 89W): Socket 939 (FX-53, 2.4GHz) Socket 940 (FX-53, 2.4GHz) Athlon? 64 x2 dual core (up to 89W): Socket 939 (4400+, 2.2GHz) Socket AM2 (5600+, 2.8GHz) Phenom? x2 quad core (up to 89W): socket AM2 (9100e, 3.2GHz) Opteron? (up to 89W): Socket 939 (150, 2.4GHz) Socket 940 (150, 2.4 GHz, 250, 2.4 GHz, 850, 2.4 GHz) Dual core opteron? (up to 89W): Socket 940 (275HE, 2.2GHz, 875HE, 2.2GHz) Second-generation opteron? (up to 89W) Socket AM2 (1218HE, 2.6 GHz) Socket F (8218HE, 2.6 GHz, 2218HE, 2.6GHz) Third-generation opteron? (up to 89W): socket F (8356, 2.3GHz, 2356, 2.3GHz) Cooler dimension: 85 x 83.5 x 71mm Cooler weight: 384g Fan: Bearing type 1B1S/entering bearing Rated voltage: 12V DC Dimension: 80 x 80 x 25mm Speed: 2000rpm(+/- 10%) Airflow: 26.0cfm (+/- 10%) Noise: 20dBA Interface material high efficiency thermal compound Fan approved by CE, TUV, and UL

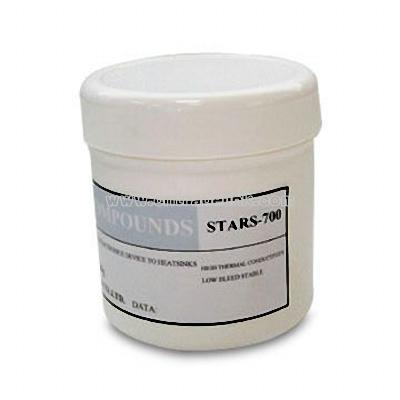

Applied industries: electronic and electrical products For example, CPU cooler family electric device, audiovisual, power applications, and communication device and more Specification: Color: gray Thermal conductivity: greater than 0.965W/m-K Thermal impedance: greater than 0.225-in2/W Specific gravity: greater than 2, 3 Evaporation: less than 0.001% Bleed: less than 0.05% Dielectric constant A: >5.1 Viscosity: no flowing Thixotropic index: 380 ±10 Moment beared temperature: -50 to 240 degree Celsius Operation temperature: -30 to 180 degree Celsius Component: Silicone compounds: 50% Carbon compounds: 20% Metal oxide compounds: 30% Package: mini soft package, syringe package, and soft tube
