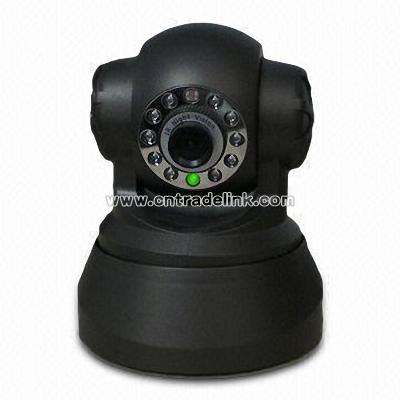

End user view real-time video via IE browser Provides smooth and high quality video Pan-tilt function can be controlled remotely Supports privacy protection function Supports MPEG-4/M-JPEG video compression Supports PTZ control function Built-in microphone Frame rate: up to 30fps Supports snapshot, playback and trig view functions Built-in web server, can remote management Supports UPnP, DDNS, easy installation and use Cooperated with slash player, can manage up to 16 devices Supports Wi-Fi (802.11b/11g) connection

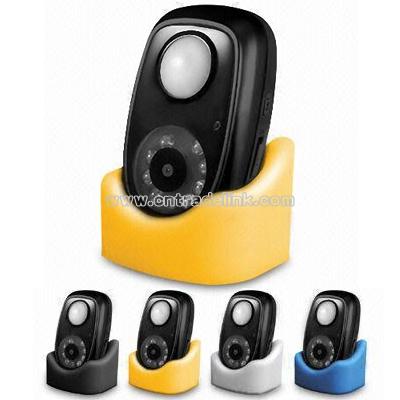

Motion detector activates digital camera recording photo or video (with audio) and turns on the lampholder Programmable recording modes for photo or video Can be programmed for constantly video recording mode or triggered by sensor for video recording PIR detect distance HI/LO switch 14 digits LCD with function icon Programmable 4 digits password 300K pixels COMS image sensor Infrared LED technology provides a bright view of dark room SD memory card for storage photo/video (SD card included) , supports up to 32GB SD card (1G SD memory card can record about 7000 photos or about 30 minutes of video) Date time stamp on images and video function Support loop recording function External siren terminal (compatible wired siren 515SK/E, 516SL, SF002) External extend trigger input terminal (compatible wired magnetic sensor) Battery low indicator LED, AC power indicator LED DC adaptor operated (included) with 4 AAA size batteries backup (not included) Compatible with additional maximum 12 wireless motion detector sensors or wireless door/window sensors and 8 wireless remote control to expanding the system Sends wireless signal to trigger auto dialer or wireless AC socket or wireless lampholder or wireless outdoor siren/strobe light function Swivel wall mount bracket kit Easily view images via SD memory card. Just use USB cable (included) and connect to your PC, insert SD card into card reader (Support UART/USB 1.1 or USB 2.0) interface to PC) PC webcam function Wireless remote control for arm, disarm and panic features

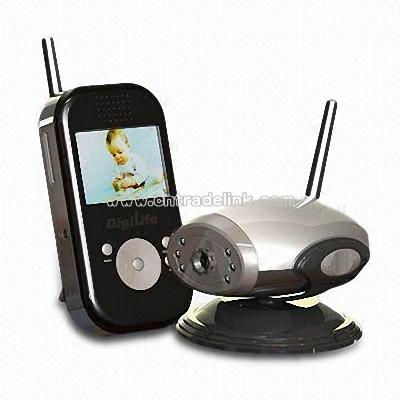

Lens: FF Minimum illumination: 0.1 lux Life frame rate: 15fps at QVGA (full screen), 7fps at 160 x 120 pixels (quad picture) Motion detection: trigger modes/smart Storage extension: microSD card Power supply: 5V DC or AA x 2 Monitor specifications: LCD display: 2.4 inches Pixels: 480 x 234 Display modes: One selected channel: 15fps at QVGA (full screen) Quad channel polling: 7fps at 160 x 120 pixels (each quad) One main frame (12fps at QVGA) with one motion detected subframe (1/16 screen) TV out: embedded TV encoder for both NTSC and PAL Audio out: PCM Storage extension: SD card up to 2GB Power supply: AA x 2 or 5V DC adapter

Easy to operate Can work with dynamic/static IP address Operation with user account & password authorized, efficient and safe Product + URL, independent URL The speed of image transmission up to 25 frames/s due to the high compression rate Built-in WEB server, IP/URL visit can reach IP camera directly IE browse, centralizing monitor software record, software upgrade online, English and Chinese interface Image motion alarm function, can monitor home, shops, factory and more System requirement The system requirement on browsing PC Operation system: Microsoft Windows 98 SE, ME, 2000, or XP CPU: above 1.6G related setting Browser: Internet Explorer 5.x or better Image plug - in: ActiveX Instruction for QIPCAM IE browser Prepare (take SA-IPCM004 for example) Insert net cable and power line and then turn on the power. Back side jack picture Light indicating: After power on It indicates power on when power indicating light is lighting It indicates the network in normal condition when network light is lighting It indicates the data is under transmission when data light is lighting. Run searcher: Run the uicamTool.exe in the CD, will find IPCAM in LAN already

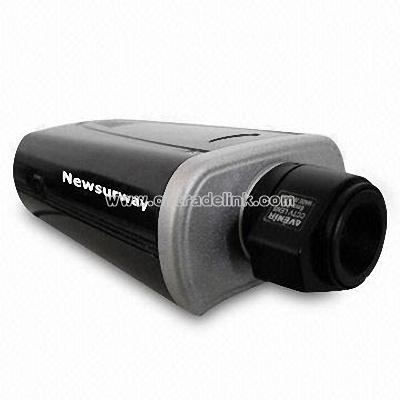

Designed for network video surveillance application Optimized MPEG-4 video compression algorithm assures clearer and more fluent image transmission Resolution: 420TV lines Minimum illumination: 0.5Lux Image sensor: 1/3-inch Sony CCD With high integration single chip SOC with powerful Linux RTOS Built-in web server allows users to conveniently carry out remote control via Internet Explorer

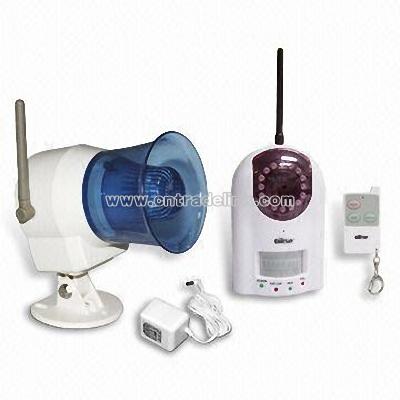

Detects motion to activate digital camera recording photo or video (with audio) and activate outdoor alarm Programmable recording modes for photo or video PIR detect distance HI/LO switch 14 digits LCD with function icon Programmable 4 digits password 300K pixels COMS image sensor Infrared LED technology provides a bright view of dark room SD memory card for storage photo/video (included SD card), supports up to 32GB SD card (1G SD memory card can record about 7000 photos or about 30 minutes of video) Date time stamp on images and video function Support loop recording function (optional) Built-in flash memory to protect system data for power failure External extend trigger input terminal (compatible wired magnetic sensor) Memory full indicator LED, low battery LED indicator, AC power indicator LED DC adaptor operated (included) with 4 AAA size batteries backup (not included) Compatible with additional maximum 12 wireless motion detector sensors or wireless door/window sensors and 8 wireless remote control to expanding system coverage Sending wireless signal trigger auto dialer or wireless AC socket or wireless lampholder or wireless outdoor siren/strobe light function Swivel wall mount bracket kit Easily view images via SD memory card, just use USB cable and connect to your PC, insert SD card into card reader (Support UART/USB 1.1 or USB 2.0 to interface with the PC) PC webcam function Wireless remote control for arm, disarm and panic functions Wired external siren up to 105dB

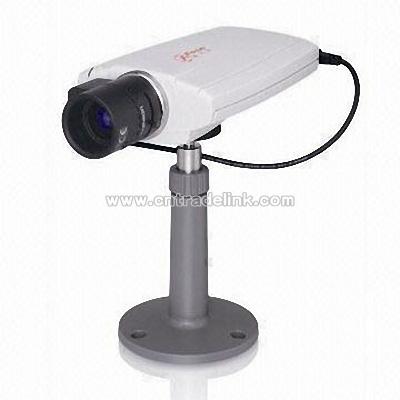

System: CPU: Vivotek VVTK-1000 RAM: 32MB SDRAM Rom: 4MB Flash ROM Networking: Protocol: TCP/IP, HTTP, SMTP, FTP, DDNS, UPnP, Telnet, NTP, DNS, DHCP Video: MPEG4 (simple profile) for streaming video JPEG for still image Camera specification: 1/4-inch color CMOS sensor Resolution: 640 x 480 1.5Lux/F2.0 AGC, AWB, AES Electronic shutter: 1/60 to 1/15000 Viewing system requirement: Operating system Microsoft Windows 98SE, ME, 2000 and XP browser Internet Explorer: 5.x or above Microphone: Omnidirectional Frequency: 50 to 16000Hz S/N ration: more than 60dB Lens: Fixed focal with fine tuning, 4.0 mm, F 2.0 LED: indicator: dual status indicator Dimensions (D x W x H): 35 x 108 x 76mm Operating environment: Temperature: 0o to 50oC/32 - 122 F Humidity: 95% Power: Input: 100 to 240V AC, 50/60Hz, 0.5A Output: 5V DC, 2A Audio: AAC, GSM, AMR

USB cable length: 1.5 meter Pan: 320 degrees Tilt: 60 degrees Dimensions: 110 x 112 x 106mm Built-in 1 USB port 10/100Mbps fast Ethernet connection Net weight: 500g

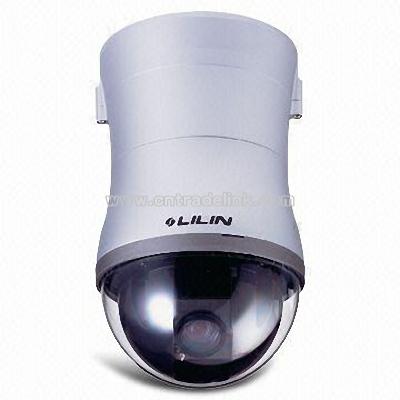

35x optical zoom lens, 3.43 to 120mm True H.264 AVC/MPEG-4 part 10 real-time video compression Full D1 resolution at 720 x 480 pixels (NTSC)/720 x 576 pixels (PAL) in live monitoring Horizontal resolution: 520TVL Automatic/manual iris control Preset background environment file Private mask Up to 128 programmable preset positions Up to 256 fast dome configuration Free Java phone, window mobile, and PDA software support

Good-quality camera Special 300,000 pixels CMOS camera Night vision: 8 infrared LED lights supports night vision Photo resolution: 640 x 480 pixels, high recording resolution SD card: 4 to 32GB PIR detector Built-in passive IR (PIR) motion detector: the Q2 will begin to record video and audio if any motion detected by the PIR Video and audio recording automatically: if motion is detected by the PIR, the Q2 will auto begin recording video and audio for 30 seconds Long distance audio recording: built-in high-sensitivity microphone can record audio within 10 meters area Auto overwrite: when the memory is full, the Q2 will auto overwrite the SD card by delete the oldest video Back-up battery: built-in lithium battery can supports 100 minutes recording or 200 hours standby Plug-and-play USB port: connecting the Q2 with a computer via USB cable, the recording files of the Q2 can be replayed, copied or deleted with computer Supports operating systems: Supports DOS, Microsoft Windows, Linux and Mac OS X operating systems

Standard IP camera, real MPEG-4 high compression ratio calculating CCD (Sony, Sharp) image sensor to select D1 high resolution image and smooth audio with different kinds of format (720 x 576/352 x 288/192 x 144 pixels) Supports IE scan, Chinese/English client-side, 4/9/16/25/36/64 channels Multi-image detect, super functions, convenient to control and manage, fit for ADSL, LAN, and more Image real-time transmit speed: 25fps Peanut-hull achieves dynamic IP and PPPOE connect to internet With motion frame detection function, detection sensibility adjustable With remote record function Supports individual image JPG document save, supports character superimpose and water print Research IP and connect automatically Specifications: Camera mode: NTSC/PAL optional Light-sensitive chip: 1/3-inch Sony super HAD CCD Sensitivity: min 0.4 lux Pan and lens control: RS485 interface, user remote control pan and electronic lens S/N ratio: 48dB (AGC off) Resolution: 480TVL Lens: CS/C optional Hardware: high effective compression chip (ARM9) Net protocol: supports TCP/IP/UDP/HTTP/SMTP/NTP/DNS/DDNS/DHCP and more Net interface: 10/100M UTP RJ45 Compression mode: MPEG-4 Remote management: web control Safety password protection I/0 port I channel input, I channel output PTZ control with PT pan control Eesolution/speed: 176 x 144, 25fps, 352 x 288, 25fps, and 640 x 480, 25fps Video bandwidth: 128 to 1,200K adjustable Trigger reaction: I/O alarm/record/software function Operation environment: -10 to 50℃/humidity 0 to 85%) Power supply: 12V DC±10% Consumption: about 400mA, 4.8W

Features: Small size and hard to find Anti-blast shell use high rigidity PV alloy Automatically IR LED start to suit low light environment D1 resolution: PAL: 704 x 576 pixels NTSC: 720 x 480 pixels Video D1 resolution: PAL: 24fps NTSC: 30fps Supports network real-time AVI dynamic video 3 class sensitivity detection, transfer alarm and video via FTP or E-mail GPIO outside equipment touch off alarm, video re-play, snapshot and DDNS Compatible with Microsoft windows media player CPU: 32 bit ARM9/MPEG4 encode chip (D1) One RS485 interface supports remote PTZ function Specifications: Horizontal resolution: 420TV Lines Image sensor: 1/3-inch Sony CCD Effective pixels: 704 x 576, 650 x 480, 352 x 288, 320 x 240, 176 x 144 and 160 x 120 Minimum illumination: 0.1 lux Lens: 3.6mm/F1.2 (6, 12 and 16mm optional) Network connect: 10/100MBase-T (RJ-45) Transfer speed: PAL: 25fps NTSC: 30fps Video compression: MPEG-4 Image: AEC, AGC, ABC and AWB 3.6mm board lens Auto iris lens: video/DC Audio: single/dual direction audio optional Communication protocols: TCP/IP, ARP, ICMP, HTTP, SMTP, FTP, DHCP, DNS, DDNS, NTP and PPPoE Built-in DDNS PPPOE: built-in ADSL auto-dial function Operating systems: Microsoft Windows 98 ME, 2000, XP, 2003 and Vista User manager: 2 Level (administrator/client) Client’s quantity: 20 online visitors (maximum) Motion detection: 3 level sensitivity (adjustable), auto send E-mail or FTP upload Recording: auto and manual (send email or FTP upload when motion detected) Camera setting: camera name, time and date (auto time zone adjust and manual

Supper HD real-time encode (960 x 720) (1,280 x 720 optional), progressive scanning Adopt pure digital technology, connect directly with SafeSky NVR (without connecting Internet through switch, avoid virus affection) Plug-and-play, supports DDNS, auto distribute IP POE, one net cable for vedio, audio, power and control purpose High sensitivity mega CMOS sensor, high quality image at low illumination Supports real time monitoring and setting via IE browser Supports Email alert (detection record image) via SMPT server Supports multi-area motion detection record (can program detection sensitivity and record time) Image sensor: 1/2.5-inch CMOS megapixel sensor Video compression bit rate: MPEG-4/JPEG IR distance: 15m Double bit rate: 1,280 x 720/960 x 720 for local record, 320 x 240 for remote viewing Video resolution: 1,280 x 720/960 x 720 (25fps) PAL, 1,280 x 720/960 x 720 (30fps) NTSC Lens interface: automatic exposure and white balance Varifocal lens: CS Exposure mode: 6/8/12/16mm optional Streaming format: synchronous audio and video Video compression bit rate: 640Kbps to 4Mbps Audio input: 1 microphone Audio compression: G.721 Protocol: TCP/UDP/IP/HTTP/ FTP/SMTP/DHCP/DNS/ARP/ICMP/POP3/NTP Communication interface: RJ45, 100M self-adaptive Ethernet interface Power input: 12V DC, 1A or POE Power consumption: maximum 8W Working temperature: -10 to +55℃ O/S: Montavista Linux

Features: 32-bit processor 1/3-inch color Sony CCD camera Supports both WAN (via ADSL modem or router) and LAN browse Real-time video capture Supports video recording on remote PC Motion detection: automatic video capture or snapshot when motion detected External alarms input/output function (such as PIR motion detection, smoke detection, gas detection) Email notification: automatically send captured video or dynamic IP address to the specified email box User management system: user-defined Technical specification: Image compression format: MPEG4 standard Image resolution: HALF-D1 (704 x 288)/CIF (352 x 288) Sensor: 1/3-inch Sony 420TVL CCD Automatic brightness adjustment supported (can be used outdoor) Alarm mode: motion detection/alarm Video display: Microsoft Media Player Image transfer velocity: 25fps Image display: single IR LEDs: 18pcs 5mm IR LEDs IR distance: 20 meters Minimum illumination: 0 lux/with IR on Waterproof: IP66 Video format: ASF Network interface: RJ-45 10-100base T Network protocol: TCP/IP, HTTP, DHCP, and LAN Monitor mode: IE browser Software upgrade: automatic upgrade Security: user management system, password protection Password setting: administer, monitor, scrutiny Working condition: -10 to 50oC, 20 to 80% PH Power adapter: 12V DC/1A, 50/60Hz System requirement: CPU: 2.0GHz or above Memory: 256MB or above Network card: 10M or above Display card: 64M or above Operating system: MS Windows 2000 or XP Central management software: GUI application layer Pan tilt zoom control Archiving server Playback module

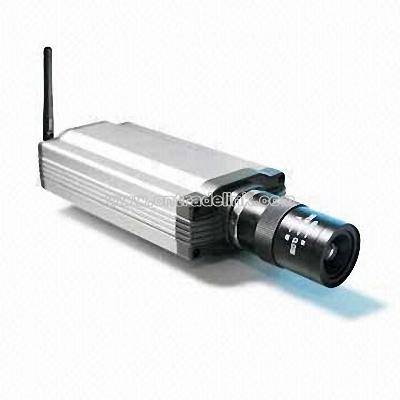

Image device: 1/3-inch Sony sensor Horizontal resolution: 420TV lines Minimum illumination: 0.5 Lux Video compression: H.264 Real-time Supports D1 solution Supports audio, Wi-Fi and wireless Lens not included

MJPEG compression, CMOS, 1/4 inches VGA: 640 x 480/QVGA 320 x 240 1 - 30 frames/seconds, real time display Built-in web server Supports IE, active and Java browse Supports UPNP protocol, plug and use, Supports dynamic allot IP address (DHCP) and DNNS Supports TCP/IP, HTTP, ICMP, DHCP, FTP, SMTP, PPPoE, and more 10/100m auto adaptive network connection speed Motion detection, video lost alarm Auto white balance, backlighting Power supply: DC 5V

Standard H.264 video compression Standard G.722 audio compression Supports D1, CIF resolution Built-in web server, supports IE browser monitor, IE configure, IE upgrade The bit rate variable assures the real-time transfer User management supports three level user and password Alarm I/O support motion detection, date, time, event trigger Supports image capture, image mask Image sensor: 1/3inch 420TVL Sony CCD Algorithm: H.264 FLASH: 8MB DRAM: 32MB OS: built-in Linux system Audio: G.722, 8 bits/s Audio input/output: optional Resolution: D1, CIF Frame rate: PAL: 1 - 25fps NTSC: 1 - 30fps Motion detection: yes Minimum illumination: 0.5 lux Lens: 6mm/F1.2 Scan system: interlace Day/night: yes Network interface: 10/100MbaseT,RJ-45 Network protocol: HTTP, TCP/IP, UDP, DNS, multicast, RTP, RTSP Security: 3 level password authority protection, 128bit encrypt arithmetic IE browser: yes Temperature: -10 - 50℃ Humidity: <85% RH Voltage: DC 12V/1.0A Product dimension: ?131 x 100mm

Quad system Remote pan/tilt control (H: 270° and 120°) 1/4-inch colorful CMOS camera Supports both WAN (via ADSL modem or router) and LAN browser Real-time video capture Supports video recording on remote PC Motion detection: automatic video capture or snapshot when motion detected External alarms input/output function (such as PIR motion detection, smoke detection, gas detection) E-mail notification: automatically send captured video or dynamic IP address to the specified email box. User management system: user-defined Supports DynDNS.org and Oray.net free dynamic DNS service

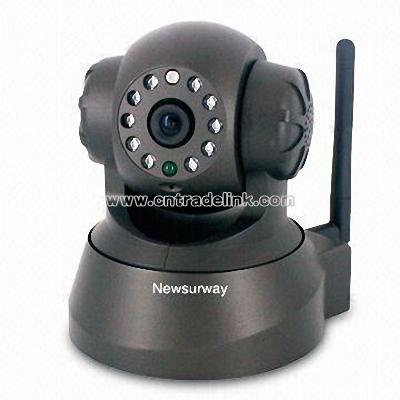

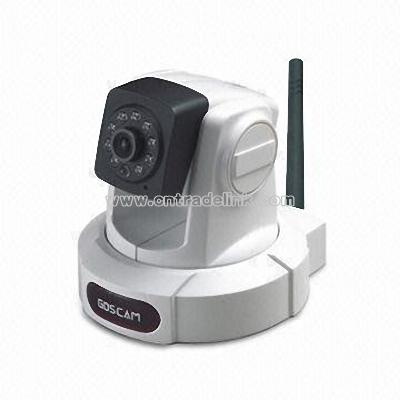

Features Powerful high-speed video protocol processor High-sensitivity CMOS sensors IR night vision range: 5m Remote pan/tilt rotation: Horizontal: 270 degrees, Vertical: 120 degrees Optimized H.264 video compression for low-bandwidth transmission Supports up to 10 users online simultaneously Multi-level user's management and passwords definition Embedded web server for users to visit by IE Supports wireless network (Wi-Fi/802.11b/g)/mobile networks (CDMA1X and GPRS)/mobile phones SD card for local storage Supports SD2.0 and 32GB capacity Supports DDNS, LAN and internet (ADSL, cable modem) Built-in/additional microphone Supports bi-directional call and voice broadcast Giving alarm in case of video loss or motion detection Supports 2 way (I/O) alarm connection Supports image shielding/image snapshot Supports multiple network protocols: HTTP, TCP, IP, UDP, STMP, DDNS, DNS, SNTP, DHCP and FTP Supports remote system upgrade Specifications: Imaging sensor: 1/4'' COMS, 300,000 pixels Minimum illumination: 1lux Video system: NTSC/PAL Video compression: H.264 baseline profile@level 2.2 Video resolution adjustment: 640 x 480(VGA), 320 x 240(QVGA) Video parameters: brightness, contrast Stream format: pure video stream or composite video/audio stream Video frame rate: 1 to 30 frame/sec Video compression code rate: 16Kbit/S~4Mbit/S Audio input: input model optional: one linear input, impedance: 1KΩ; one built-in mirophone input Audio compression: G.726 Audio output: one linear output Communication interface: one 10M/100Madaptive Ethernet interface Wi-Fi module: supporting IEEE802.11b/g Power supply: DC 9V/1.5A Maximum power: 6W Operating temperature: 0 to 40℃ Operating humidity: 10 - 85% System requirements: Microsoft Windows ME/2000/XP/NT 5.0/Vista Brower: Microsoft Internet Explorer 5.0 or later version Dimensions: 103 x 104 x 103mm Weight: 298g 1/3-inch SHARP Color CCD

Powerful high speed video protocol processor High sensitivity CMOS sensors IR night vision range: 5m Optimized H.264 video compression for low-bandwidth transmission Supports up to 10 users online simultaneously Multilevel user's management and passwords definition Embedded web server for users to visit by IE Supports wireless network (Wi-Fi, 802.11b/g), mobile networks (CDMA1X and GPRS)/mobile phones SD card for local storage Supports SD2.0 and 32GB capacity Supports DDNS, LAN and internet (ADSL, cable modem) Built-in additional microphone Supports bi-directional call and voice broadcast Giving alarm in case of video loss or motion detection Supports image shielding and image snapshot Supports multiple network protocols: HTTP, TCP, IP, UDP, STMP, DDNS, DNS, SNTP, DHCPand FTP Supports remote system upgrade Specifications: Video system: NTSC/PAL Video compression: H.264 baseline profile@level 2.2 Video resolution adjustment: 640 x 480(VGA), 320 x 240(QVGA) Video parameters: brightness, chrominance, contrast, saturation, image quality CMOS parameter adjustment: automatic white balance (AWB), automatic gain control (AGC), backlight compensation (BLG), automatic light control/electronic light control (ALC/ELC) Video frame: PAL: 1 - 25 frame/sec NTSC: 1 - 30 frame/sec Stream format: pure video stream or composite video/audio stream Video compression code rate: 16 Kbit/S~4Mbit/S Audio input: one linear input, impedance: 1KΩ Audio compression: G.726 Audio output: one linear output. One microphone input, built-in/external optional, yellow for built-in and red for external Communication interface: one 10M/100Madaptive Ethernet interface Wi-Fi module: supporting IEEE802.11b/g Power supply: DC 5V Maximum power: <6W Operating temperature: -10 to +55℃ System requirements: Microsoft Windows 98/ME/2000/XP/NT5.0/Vista Brower: Microsoft Internet Explorer 6.0 or laterversion Dimensions: 75 x 68 x 128mm
