Features: 5.8GHz transmission away from 2.4GHz interference 2.5-inch TFT LCD screen, resolution: 640 x 240 pixels Tiny size for discreet observation and portable Built-in microphone for audio monitoring Up to 100m (330-feet) transmission range in open space Specifications: General: Transmission frequency: ISM 5,725 to 5,875MHz Transmission power: 10mW/CE and 2mW/FCC Operating frequency: 5,737.5, 5,762.5, 5,787.5 and 5,812.5MHz Unobstructed effective range: 100m (minimum) Modulation mode: FM Operating temperature: -10 to +50 degrees Celsius (+14 to +122 degrees Fahrenheit) Operating humidity: ≤85%RH Camera: Imaging sensor type: CMOS Picture total pixels: PAL: 628 x 582 NTSC: 510 x 492 Minimum illumination: 5 Lux Bandwidth: 25MHz Current consumption: 100mA (maximum) Power supply: +8V DC Dimensions: (W) 24 x (D) 25 x (H) 24mm Weight: 14g Receiver: Receiving sensitivity: ≤-85dBm Video system: NTSC/PAL Li-battery charge time: 2 to 3 hours Li-battery working time: 2 hours Color configuration: RGB delta Current consumption: 350mA (maximum) Power supply: +5V DC Dimensions: (W 80 x (D) 38 x (H) 130mm Weight: 160g

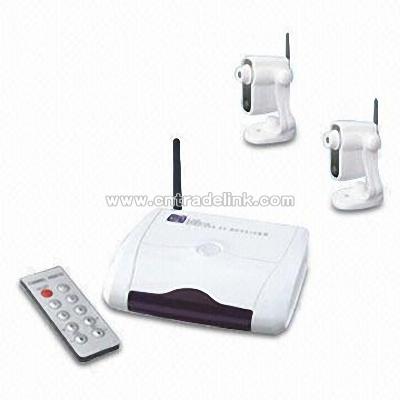

USB 2.0 output to PC Supports Windows 2000/XP Bundle with security software Image capture and high-speed MPEG4 real-time recording Supports MSN messenger Built-in microphone for audio monitoring Rechargeable Li-battery in camera for portable monitoring 4-channel available to avoid possible interference Transmission range in open space: up to 100m (330 feet) Specacifications: General: Transmission frequency: ISM 2,400-2,483 MHz Transmission power: 10mW/CE; 2mW/FCC Operating frequency: 2414MHz; 2432MHz; 2450MHz; 2468MHz Unobstructed effective range: 100m(Min.) Modulation mode: FM Operating temperature: -10 to +50(Degree C)/+14 to +122(Degree F) Operating humidity: ≤ 85%RH Camera Imaging sensor type: CMOS Picture total pixels: PAL: 628 x 582 pixels; NTSC: 510 x 492 pixels Minimum illumination: 0Lux Night vision range: 3m Li-battery charge time: 2 hours Working time: 5 hours (IR off)/2 hours (IR on) Bandwidth: 18m Power supply: DC +5V Dimensions (W x D x H): 28 x 90 x 28 mm Weight: 110g Receiver Antenna: 50 ohm SMA Receiving sensitivity: ≤ -85dBm Video output signal level: 1.1Vpp± 0.2Vpp@75 ohm, S/N >38dM Audio output signal level: 3.0Vpp± 1Vpp@600 ohm Video system: NTSC/PAL Consumption current: 190mA(Max.) Power supply: DC +5V Dimensions (W x D x H): 16 x 102 x 80mm Weight: 120 g

Transmission and receiving frequencies: CH1: 2.414GHz CH2: 2.432GHz CH3: 2.450GHz CH4: 2.468GHz Receiver RC420A: Power adapter: 12V DC and 500mA Size: 120 x 99 x 30mm Weight: 165g Camera CM812CWAS: TV system: PAL and NTSC Validity pixels: PAL: 628 x 582 NTSC: 510 x 492 Horizontal definition: 380 lines Power adapter: 12V DC and 500mA Size: 68 x 52 x 105mm Weight: 245g

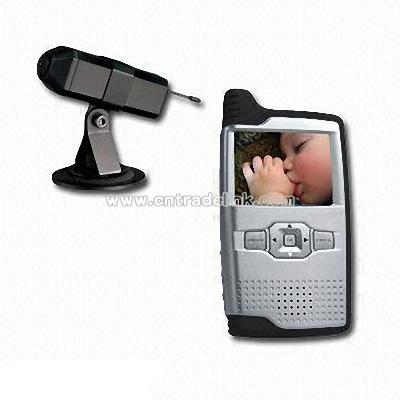

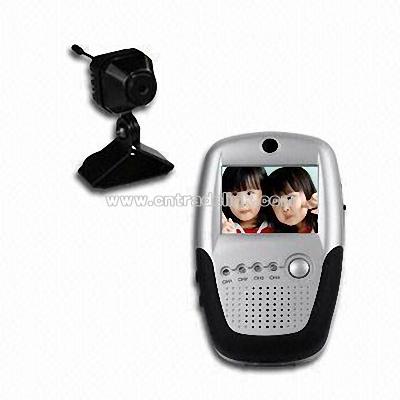

2.5-inch TFT LCD screen Resolution: 640 x 240 pixels Built-in rechargeable Lithium battery in both camera and receiver Camera battery: at least 5 hours of working Receiver battery: at least 2 hours of working Records 1 hour video or thousands of pictures by 1GB SD card 4 optional channels to avoid possible interference Up to 100m (330 feet) transmission range in open space Specifications: General: Transmission frequency: ISM 2,400 to 2,483MHz Transmission power: 10mW/CE and 2mW/FCC Operating frequency: 2,414, 2,432, 2,450 and 2,468MHz Unobstructed effective range: 100m (minimum) Modulation mode: FM Operating temperature: -10 to +50 degrees Celsius (+14 to +122 degrees Fahrenheit) Operating humidity: ≤85%RH Camera: Imaging sensor type: CMOS Picture total pixels: PAL: 628 x 582 NTSC: 510 x 492 Minimum illumination: 5 Lux Li-battery charge time: 2 hours Li-battery working time: 5 hours Bandwidth: 18MHz Current consumption: 90mA (maximum) Power supply: +5V DC Dimensions: 23 x 66 x 23mm Weight: 32g Receiver: Receiving sensitivity: ≤-85dBm Intermediate frequency: 480MHz Video system: NTSC/PAL Video recording: 2 hours/1GB Photo saving: 4 thousand pictures/1GB Supports MPEG4, MP3, WMA, WAV, JPG and TXT formats Color configuration: R.G.B.delta Current consumption: 350mA (maximum) Power supply: +5V DC Dimensions: (W) 71 x (D) 24 x (H) 137mm Weight: 125g

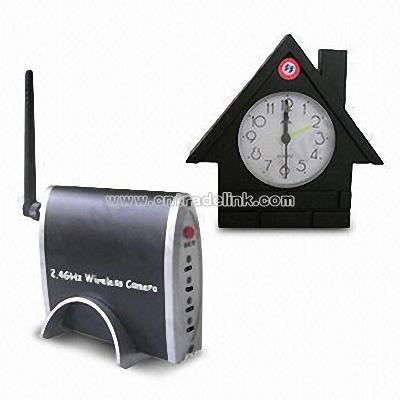

2.4GHz color CMOS Clock housing Audio 4 channel receiver

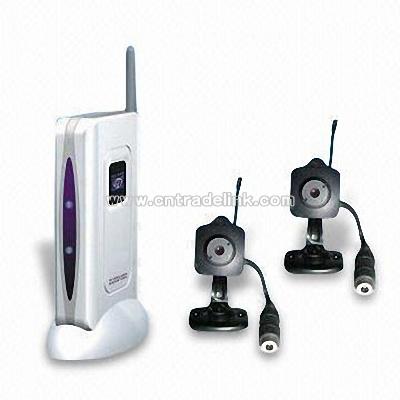

Transmission and receiving frequencies: CH1: 2.414GHz CH2: 2.432GHz CH3: 2.450GHz CH4: 2.468GHz Receiver RC450A: Power adapter: 12V/500mA Size: 91 x 45 x 120mm Weight: 120g Camera CM203CWAS: Horizontal definition: 380 lines TV system: PAL and NTSC Validity pixels: PAL: 628 x 582 NTSC: 510 x 492 Power adapter: 8V DC and 500mA Size: 35 x 25 x 53mm Weight: 45g

Transmission and receiving frequencies: CH1: 2.414GHz CH2: 2.432GHz CH3: 2.450GHz CH4: 2.468GHz Receiver RC450A: Power adapter: 12V/500mA Size: 91 x 45 x 120mm Weight: 120g Camera CM203CWAS: Horizontal definition: 380 lines TV system: PAL and NTSC Validity pixels: PAL: 628 x 582 NTSC: 510 x 492 Power adapter: 8V DC and 500mA Size: 35 x 25 x 53mm Weight: 45g

1/4 inches CCD, 420 TV lines Sharp picture display Tiny size for discreet observation and portability Built-in microphone for audio monitoring 4 channels available to avoid possible interference Specifications: General: Transmission frequency: ISM 2,400 to 2,483MHz Transmission power: 10mW/CE and 2mW/FCC Operating frequency: 2,414, 2,432, 2,450 and 2,468MHz Unobstructed effective range: 100m (minimum) Modulation mode: FM Operating temperature: -10 to +50 degrees Celsius (+14 to +122 degrees Fahrenheit) Operating humidity: ≤85%RH Camera: Imaging sensor type: CCD Picture total pixels: PAL: 628 x 582 NTSC: 510 x 492 Bandwidth: 18MHz Minimum illumination: 5 Lux Current consumption: 120mA (maximum) Power supply: +12V DC Dimensions: (W) 36 x (D) 26 x (H) 45mm Weight: 65g Receiver: Antenna: SMA (50 ohms) Receiving sensitivity: ≤-85dBm Intermediate frequency: 480MHz Video output signal level: 1.1 ±0.2Vp-p, 75 ohms S/N ratio: >38dB Audio output signal level: 3.0 ±1Vp-p, 600 ohms Current consumption: 190mA (maximum) Power supply: +12V DC Dimensions: (W) 78 x (D) 92 x (H) 22mm Weight: 174g

Transmission and receiving frequencies: CH1: 2,414MHz CH2: 2,468MHz Receiver RC420A: Power adapter: DC 12V/500mA Size: 120 x 99 x 30mm Weight: 165g Camera CM240CWAS: Horizontal definition: 420 lines Minimum illumination: 1.0Lux/F1.2 Frequency system: PAL and NTSC Embedded lithium battery Validity pixels: PAL: 628 x 582 NTSC: 510 x 492 Power adapter: DC 5V/500mA Size: 73 x 60 x 101mm Weight: 105g

Infrared light provide night-time vision Alloyed shell, weather-resistant structure for outdoor installation Built-in microphone for audio monitoring Transmission range in open space: up to 100m (330 feet) Imaging sensor: 1/3-inch CMOS Resolution: 380TV lines Viewing angle: 62° Transmission power: CE: 10mW FCC: 2mW Power supply: 8V DC Weight (camera): 200g

TV system: NTSC, PAL Pixel: PAL: 768 x 582 NTSC: 768 x 492 Horizontal definition: 450 Lines Minimum illumination: 0.2Lux, F1.2 Horizontal viewing angle: 80-degree Voltage and current: 12V DC and 120mA Video output: 1.0Vp-p 75 Ohms Electronic shutter: 1/60 (1/50) to 1/120,000 Camera lens: 4.3mm Firing distance: 150 to 300m Dimensions (L x H x T): 26 x 22 x 1mm

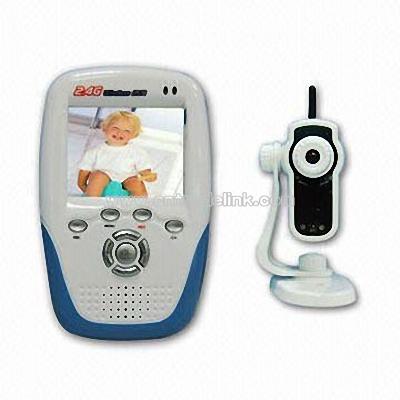

2.4G wireless video and audio transmission 2.5-inch LCD color screen with 960 x 234 resolution Portable wireless audio and video recorder Supports SD card, 8GB (maximum) Built in rechargeable Li-battery lasting for 2 to 4 hours Audio monitoring with microphone in camera Two cameras manually select on receiver 100m transmission distance without block 420 TV lines Receiver: Receiving sensitivity: ≤-85dBm Video output: 1Vp-p @ 75Ω Audio output: 2Vp-p @ 600Ω Power adapter: 5V DC/2000mA Dimension: 123 x 76 x 26mm Weight: 132g LCD: 960 x 234 high resolution TFT LCD Movie: MPEG4, AVI and ASF MPM plays: MPEG, AVI, ASF, MP3 and WAV Video recording resolution: 640 x 480, 320 x 240 and 160 x 128 Speaker: 8Ω/0.5W Storage: built-in 128M flash SD card: 8GB (maximum) Language: simplified Chinese/English PC Windows: XP Interface: USB 2.0 and USB 1.1 File system: FAT32 Camera: TV system: PAL/NTSC Validity pixel (H x V): 628 x 586 and 510 x 496 Image device: 1/3-inch OmnVision CMOS Horizontal definition: 420TV line Angular field of view: 45° (F = 6mm) Minimum illumination: 1.0 Lux (F1.2) Scanning frequency (H): 15.625kHz and 15.734kHz Scanning frequency (V): 50Hz and 60Hz Power adapter: 5V DC/500mA Dimension: 73 x 60 x 101mm Weight: 105g

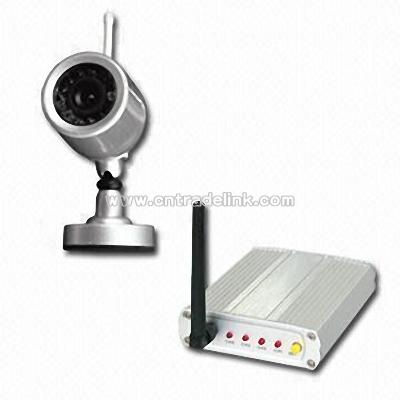

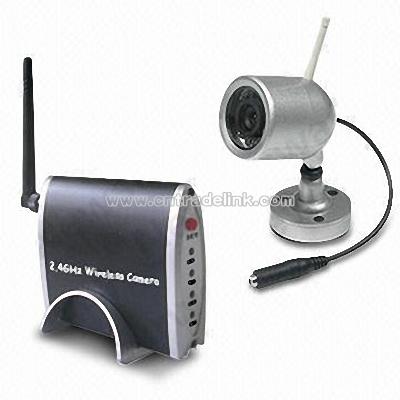

2.4G/waterproof CMOS/audio 6pcs infrared LEDs 4 channel receiver Frequency can be adjusted

Die-cast dual aluminum housing design, heater featured, 24V AC powered 45 seconds pattern tour, 4 alarms in and 1 out OSD, privacy zones, day/night, WDR SensUp DSS (refer to camera table) Multi-protocols compatible (Pelco-D, Pelco-P, and Kalatel) Programmed device clock, automatically on/off cruising scan or track Weather-proof design, built-in heater and fan meets IP65 protection grade RS485, 128 presets, supports 6 cruising paths, 16 presets each patch 360 degrees continuous pan, auto-flip 220x high resolution day/night camera

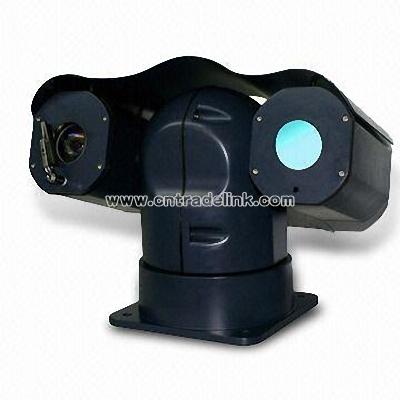

Night 2km thermo camera and auto wiper equipped, truly IP66 360 degrees continuous spin in pan and 180 degrees tilt Multiple protocols (Pelco D, Pelco P) OSD, privacy masking, day/night, WDR SensUp DSS (refer to below camera table) 128 preset, 6 cruising tracks 16 preset each track, 4 alarms in 1 out (subject to 24V AC power) Pan speed is 0 to 240°/s vari-speed, 45 seconds pattern memory, RS485 communication Vehicle power 12V DC input, shuttle scan enabled Mount suitable for auto carriage

Image sensor: 1/4-inch Sony color CCD Resolution(H x V): 480TVL, 681 x 582 Illumination: 0.2 Lux Color, 0.02 Lux B/W Lens: 3.9 to 85.8mm auto iris, auto focus lens Speed: 0 to 20 degrees AWB: auto BLC: auto Shell: 7, 9-inch industry plastic shell Power: 24V AC 350mA

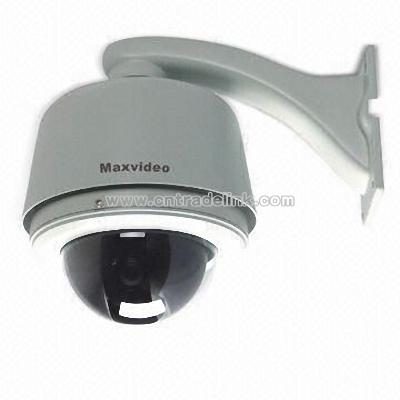

Horizontal resolution: 480 or 570TVL Auto zoom but manual in advance Auto iris but manual in advance With backlight compensation Optical zoom: 23x Electric zoom: 10x Minimum illumination: 0.1/0.01 lux Variable turning speed: 0.5 to 280°/second 128 pieces of preset positions Automatically scan and tour according to the preset positions Set staying time of each preset position and adjustable speed available Alarm input/output functions Built-in all-in-one zoom multi-protocol decoders Standard RS-485 communication

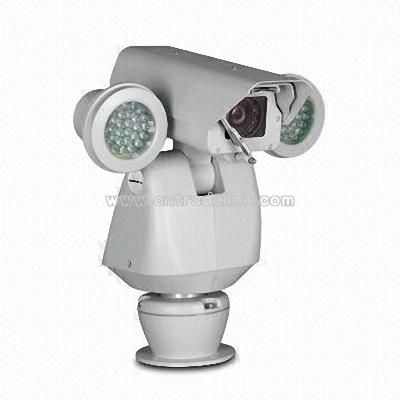

Infrared distance: more than 100m Zoom function: Optical: 36x Digital: 12x Die-cast aluminum construction Programmable camera setting Auto iris focus BLC function 360° continuous pan rotation Supports multiple controlling protocols Privacy mask 128 preset positions 4 programmable tours at up to 80°/second speed Auto pan function between 2 preset positions Wiper function Power input: 24, 110 or 220V AC

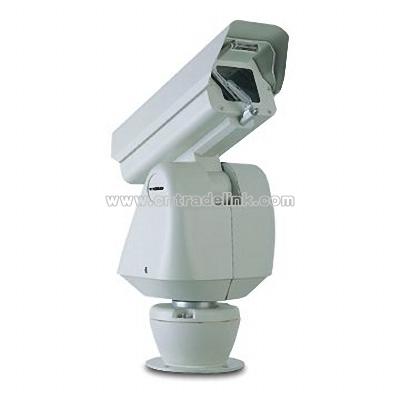

Zoom function: Optical: 18x Digital: 12x Die-cast aluminum construction Programmable camera setting Auto iris focus BLC function 360° continuous pan rotation Supports multiple controlling protocols Privacy mask 80 preset positions 4 programmable tours at up to 80°/second speed Auto pan function between 2 preset positions Wiper function Power input: 24, 110 or 220V AC

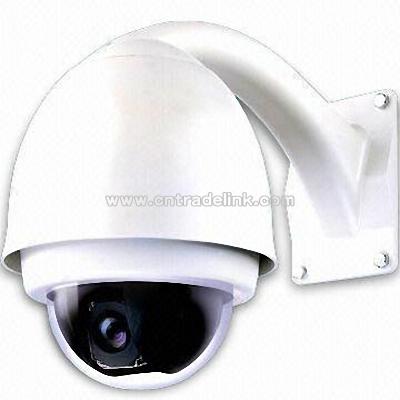

High speed dome camera with pan tilt zoom by keyboard control Features: The display combining picture and character is available through PC Accurate preset positions, low noise design, built-in time display Edit and input logo video through PC Metal double housing structure, built-in constant temperature equipment OSD menu for setting camera functions Auto identify high resolution and low Illumination camera like Sony, Hitachi, LG, CNB, and more Focus and pan/tilt speed automatic adaptation function 360o continuous pan and 90o vertical tilt, no blind area 0.1o - 280o/s horizontal shift, 0.1o - 180o/s vertical shift, and 180o auto flip 128 preset positions association and 8 sequences with up to 16 presets each, Auto camera rotation speed adjustment when lens zoom in/out, home position Timed auto active function, timed auto adjust preset position, cruise and panning and more Internal data never lost when power is off 7 channel alarm inputs by 2 channel alarm outputs, alarm calling Cruising route: sequences with up to 16 presets each Protocol: Vinet/PelcoP/PelcoD and more multi-protocols Installation methods: wall/ceiling/pendant mount (optional) Installation environment: outdoor and indoor (optional) Power supply: 18 - 30V AC, default 24V AC Working temperature: -40 to +60oC
