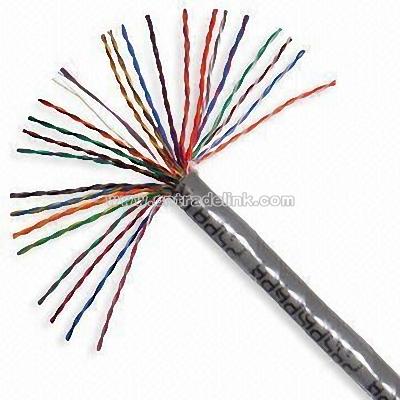

Includes: 25x 2 x 0.50mm BC conductor PE insulation Separator Cable tie Rip cord PVC sheath Conductor: Material: solid bare copper Number of pairs: 25 pairs AWG: 24 Diameter: 0.50 ±0.003mm Insulation: Material: HDPE and FRPE Diameter: 0.924 ±0.005mm Average thickness: 0.212mm Minimum point thickness: 0.2095mm Separator: PPE Cable tie: PE Jacket rip cord: optional Sheath: Material: PVC or PE Nominal diameter: 12.5 ±0.2mm Average thickness: 1.0mm Minimum point thickness: 0.995mm Operating temperature: -20 to 75°C Minimum bend radius (install): (OD) 8mm Flame test: CMX, CM, CMR and IEC60332-1 Reference standard: TIA/EIA568B and IEC/ISO11801

Includes: BC conductor PE insulation Petrolatum PE sheath Conductor: Material: solid bare copper Number of pairs: 4 pairs AWG: 24 Conductor diameter: 0.50 ±0.003mm Insulation: Material: HDPE and FRPE Diameter: 0.924 ±0.005mm Average thickness: 0.212mm Minimum point thickness: 0.2095mm Filling: petrolatum Sheath: Material: PVC or LSOH Nominal diameter: 5.5 ±0.2mm Average thickness: 0.65mm Minimum point thickness: 0.645mm Operating temperature: -20 to 75°C Minimum bend radius (install): (OD) 8mm Flame test: CMX, CM, CMR and IEC60332-1 Reference standard: TIA/EIA568B and IEC/ISO11801

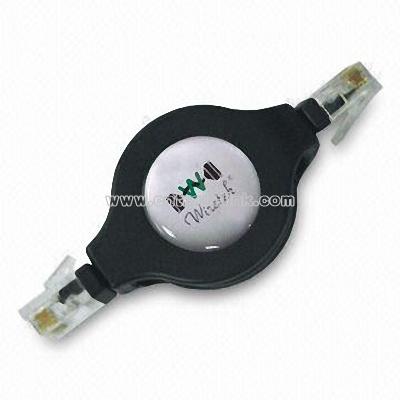

RJ45 retractable cable LAN retractable cable 75cm

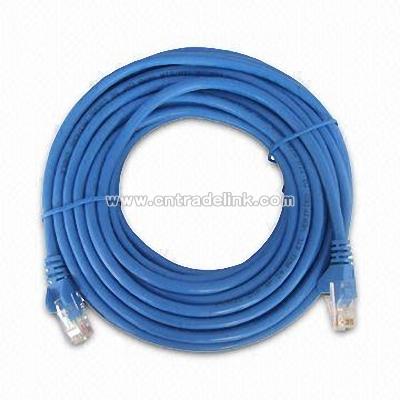

Cat 5e network LAN cable: orange Available sizes: 1, 2, 3, 5, 10, 15, 20, 30m Available in Different lengths and colors

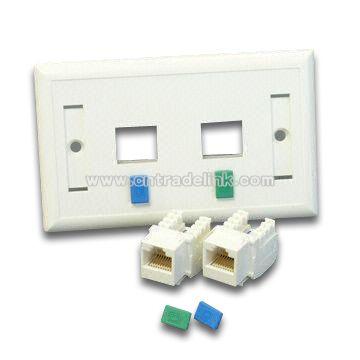

CAT 5E surface-mount type Dual ports With keystones

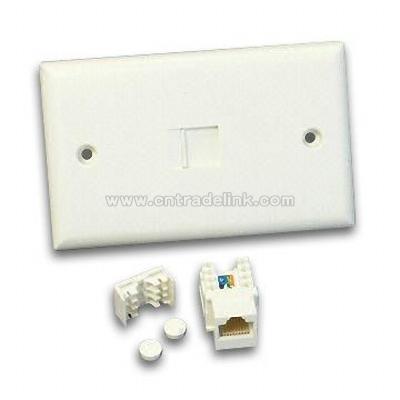

CAT 5E surface-mount type Single port With keystone

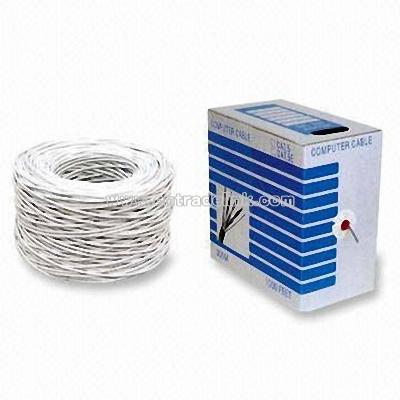

4-pairs UTP Cat 5e (outdoor) Conductor: diam0.50mm (BC) Core dimension: diam0.9mm (PE) Nominal O.D: diam7.0mm Shielding PVC: flame retardant gray/PE black

Auto Reel up to 1.3M RJ11 6P6C Modem cable RoHS compliant OEM cable is welcome

Name: patch cord CAT 5e Conductor: 7/0.203mm (BC strand) Core dimension: diam0.98mm (PE) Nominal diameter: diam5.6mm Shielding: PVC flame retardant gray, blue, green, yellow and red

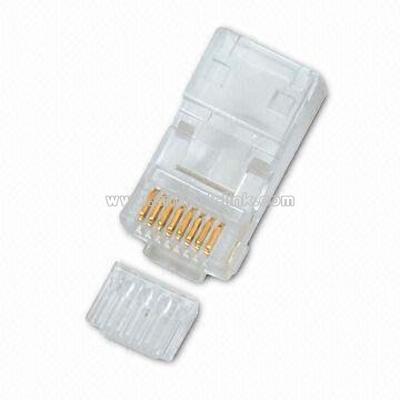

8P8C Cat 6 Plug 30u' or 50u W/insert RoHS compliant

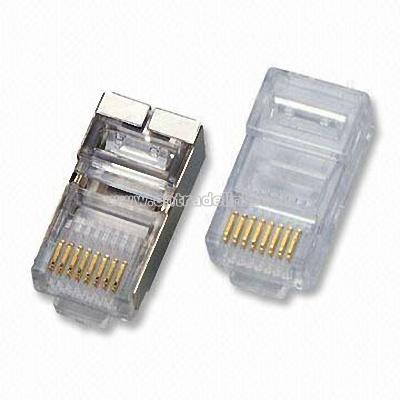

19Without Shield With shield Rhen order LK-6002A, Please mark the plug is for solid or stranded cable

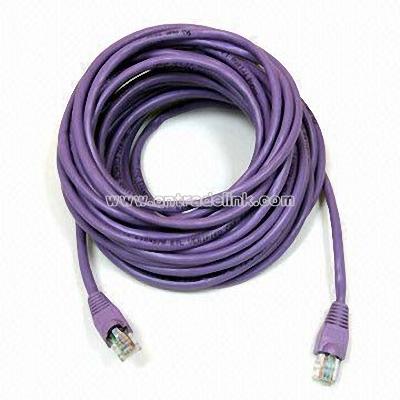

Introduction: LAN (Local Area Network) is suitable for audio, data and video of transfer The transmission of high-speed up to 100Mbps and 100MHz of electrical performance The requirements apply to both shield of unshielded cable construction Application: 10 Base-T (IEEE 802.3) TP-PMD (ANSI x 3T9.5) 100Mbps CDDI AMT 155 Specification: Conductor type: 24 AWG or 26 AWG (UTP STP solider stranded) Cable type: Cat.5, Cat.5e, Cat.6, Cat.6e, Cat.7 (shielded or unshielded gold-plated modular plugs) Cable length: 1ft, 2ft, 3ft, 4ft, or other length Feature: Meets EIA/TIA-568A standard Colors are available in gray, beige, yellow, blue, green, orange, red, white, black, purple, Apple iMac, and translucent clear

CAT.5 specification on 100 base-TX 8P8C plug with various lengths Gold-plated thickness, shielded or unshielded plug Buyers' specifications accepted

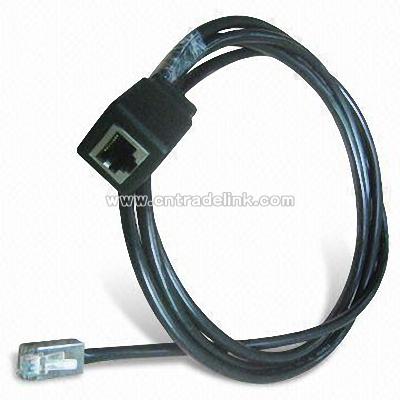

Available in customized colors and cable lengths Specifications: Half or fully shielded for female sockets Various combinations of gauges RoHS compliant Cat5 connector to housing plug connector OEM and ODM orders are welcome

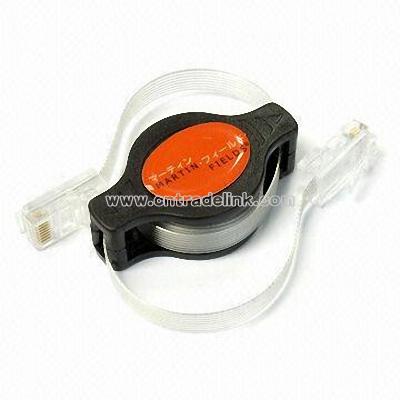

RJ45/RJ45 (molded strain relief) for LAN and broadband cables LAN cable connects with notebook and PC Auto-retractable CAT 5E Ethernet/ISDN flat UTP cable to replace loose, tangled and twisted LAN, and broadband cables

CAT-5 is rated to 100m CAT-5e is rated to 350m CAT-6 and CAT6e is rated to 550 or 1,000m depending on customer's source CAT-7 is supposedly rated to 700m or presumably 1,000m

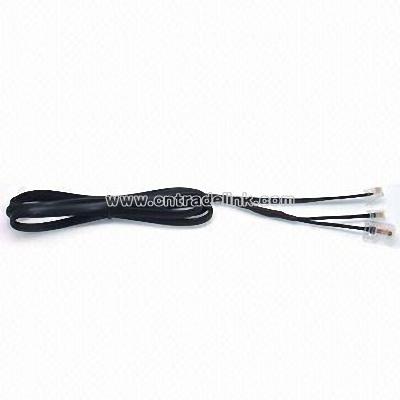

RJ11 + RJ9 + RJ45 network cable Cable: network cable Plug: RJ11 or RJ45 or RJ9 Length: 1.0 to 8.0m Color: black

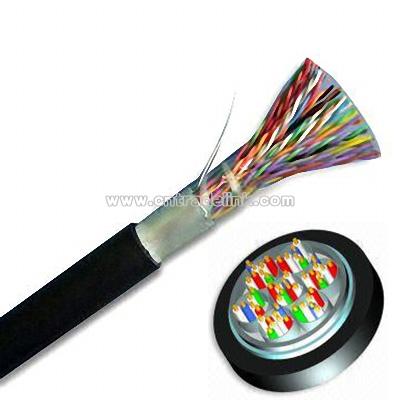

Transmission characteristics: IL: 22dB/100m (100MHz) RL: 15.7dB/100m (100MHz) Next: 32dB/100m (100MHz) PS-next: 32.3dB/100m (100MHz) EL-next: 21dB/100m (100MHz) PSEL-next: 21dB/100m (100MHz) VOP: 0.620c/100m (100MHz) Delay: 538ns/100m (100MHz) Skew: 45ns/100m (1 to 100MHz) Zo (1 to 100MHz): 100±15Ω Length: 305, 500 and 1,000m Diameter: 16±0.5mm Maximum strain power: 500N Temperature range: -40 to +60°C Weight: 100, 165 and 330kg

Industrial standards: YD/T1019-2001 (America) ANSI/TIA/EIA-568-B, (international) ISO/IEC 11801/71156 Conductor: solid and stranded soft circle twisted copper wire, bare copper, four-pairs, foil shield, and drain wire braid Use for permanent installations ETL/UL certified, meets Cat5e specifications Molded type plug: Cat5E 8P8C RJ45 long body shielded plug with injection molding, and strain relief caps Testing: 100% continuity test and AQL 15% attenuation test, return loss, and impedance test (SFTP) Use 24 AWG, stranded/solid Cable colors: on request Jacket: PVC (polyvinylchloride), PE (polyethylene), and LSZH (low smoke zero halogen)

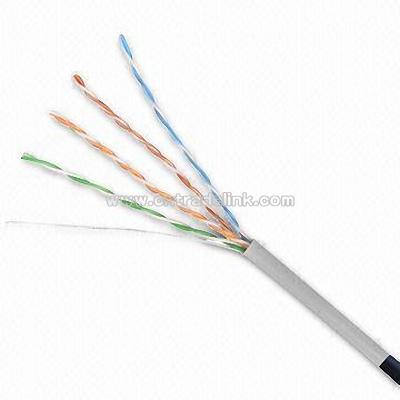

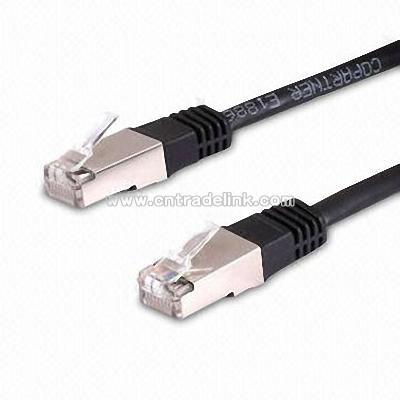

Cat5e FTP network cable with high performance, RoHS compliant materials Industrial standards: YD/T1019-2001 (America) ANSI/TIA/EIA-568-B and (international) ISO/IEC 11801/71156 Conductor: solid and stranded soft circle twisted copper wire, bare copper, four-pairs, foil shield and drain wire braid Uses for permanent installations ETL/UL certified, meets Cat5e specifications Molded type plug: Cat5E 8P8C RJ-45 long body shielded plug with injection molding and strain relief caps Testing: 100% continuity test and AQL 15% attenuation test, return loss and impedance test (SFTP) Uses 24 AWG, stranded/solid Cable colors: on request Jacket: PVC (polyvinylchloride), PE (polyethylene) and LSZH (low smoke zero halogen)
