SAS is the next-generation interface standard for SCSI-based systems, designed to replace the SCSI parallel interface with much faster, more flexible, 3Gbps serial interface while maintaining the robust nature of the SCSI command set Mini-SAS (CSE iSAS), is the newest generation of SAS cables It uses smaller connectors with improved performance and is ready for 6Gbps They are now used on many new controllers and backplanes being shipped today

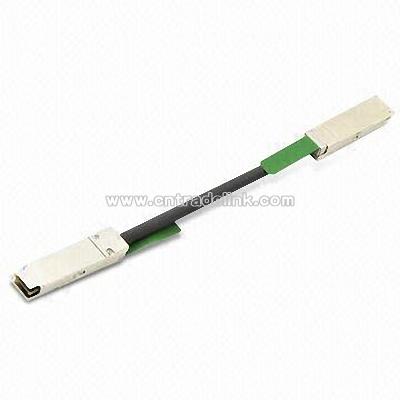

Up to 10Gbps per channel capacity Copper link length up to 15m (active limiting) Low crosstalk Compliant to QSFP MSA C x 4 pluggable cable assembly with 3.125Gbps data rate Infinite band 4x pluggable cable assembly with 2.5, 5.0, and 10.0Gbps data rate SAS 4 x pluggable cable assembly with 3.0 to 6.0Gbps data rate

SAS is the next-generation interface standard for SCSI-based systems, designed to replace the SCSI parallel interface with much faster, more flexible, 3Gb/s Serial Interface while maintaining the robust nature of the SCSI Command Set “Mini-SAS” ("CSE iSAS"), is the newest generation of SAS Cables It uses smaller connectors with improved performance and is ready for 6Gb/s They are now used on many new Controllers and Backplanes being shipped today

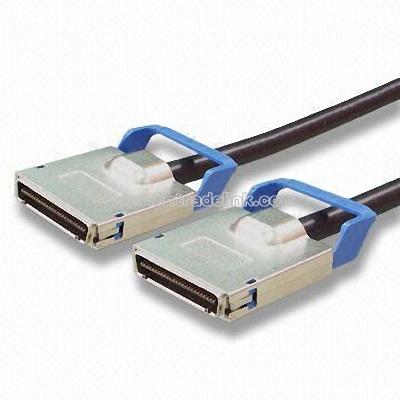

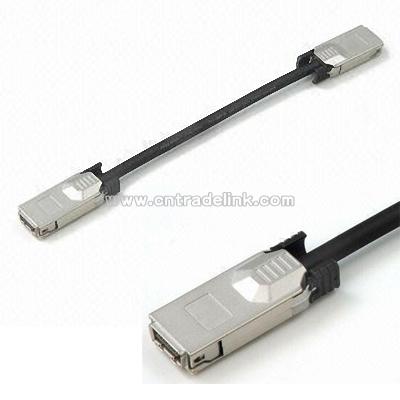

CX4 10GB Ethernet mini SAS cable assembly 3.125Gbps data rate per channel (10Gbps aggregate) infiniband 4x cable assembly with 2.5, 5.0, and 10.0Gbps data rate SAS 4x cable assembly with 3.0 to 6.0Gbps data rate

SAS is the next-generation interface standard for SCSI-based systems, designed to replace the SCSI parallel interface with much faster, more flexible, 3Gbps serial interface while maintaining the robust nature of the SCSI command set Mini-SAS (CSE iSAS), is the newest generation of SAS cables Uses smaller connectors with improved performance and is ready for 6Gbps Used on many new controllers and back planes being shipped today

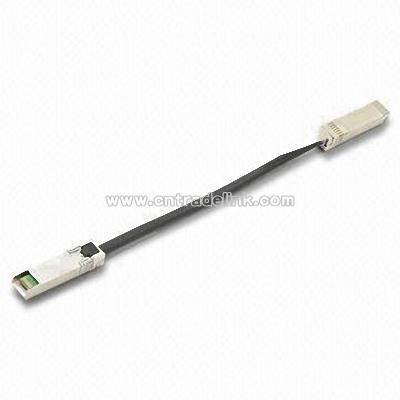

External cable assembly with 10.0Gbps data rate 10GSFP + Cu 20-pin board as connector

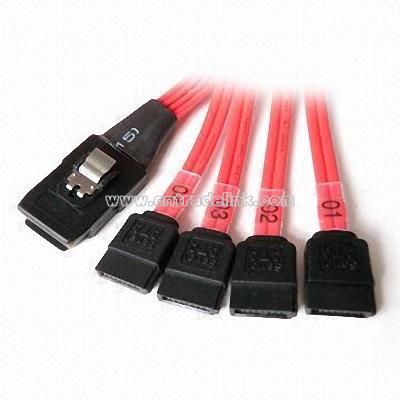

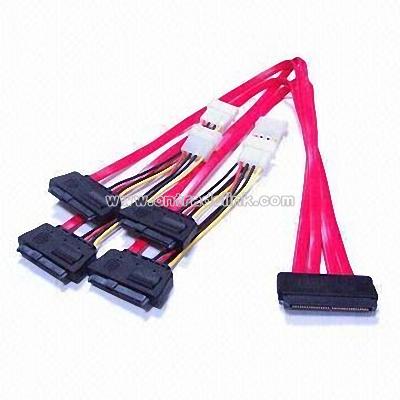

Internal mini SAS 36P to SAS 29P x 4 SFF-8087 to SFF-8484 Mini SAS 36p to SAS 29P x 4W/power Standard length: 0.5, 1m, or OEM SATA 30AWG, UL2725/UL1007 Pitch: 5.08mm 4P power conector

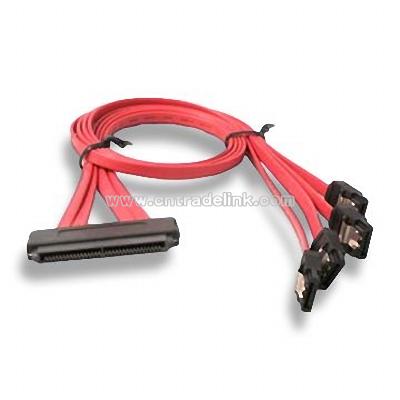

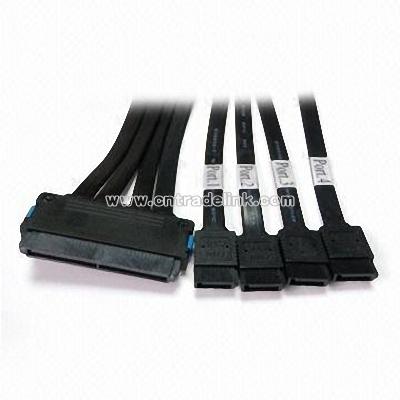

SAS 32pcs to SATA 7pcs x 4 Wire: SATA color: red 26 AWG SAS connector 32pcs receptacle 15μ-inch Back shell thermal plastic color: TBD Latch button thermal plastic color: TBD Latch stainless Connector single port 7pcs receptacle with spring Over-mold thermal plastic color: black Screw

Mini SAS cable assembly With 4x (SFF-8088) cable OEM/ODM orders are welcome

Latest SATA II (second generation serial ATA) ESATA and SAS multilane assemblies Supports SCSI, SATA/SATA II Full duplex communication at 3GB/300MB each direction signaling Passive interconnect 4 x thumbscrews, multilane cable 4 x latch, multilane cable Highpoint rocket raid host adapter card latching InfiniBand (non-standard) to industrial Connector multilane 4 x channel SATA

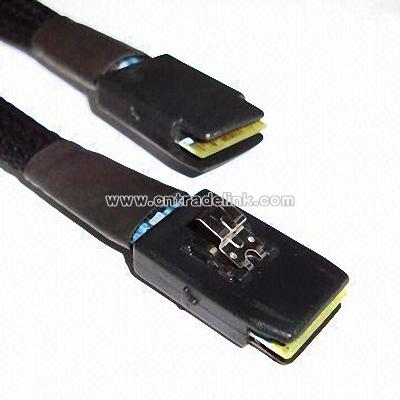

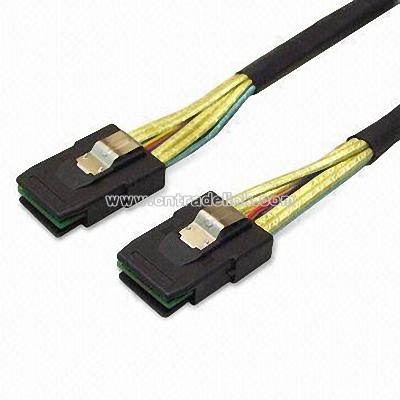

SFF8087 to SFF8087 Mini SAS (4i) to mini SAS (4i) 36P cable With 3.0Gbps data rate With 36 pins

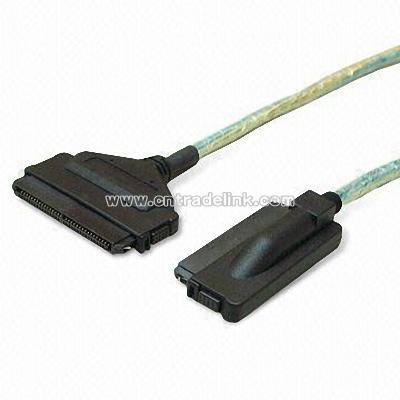

8484 to 8484 Internal SAS (4i) to internal SAS (4i) 32P cable With 3.0Gbps data rate With 32 pins OEM/ODM orders are welcome

SFF 8484 to SFF8484 Internal SAS (4i) right angle to right angle type 32P With 3.0Gbps data rate With 32 pins

Mini SAS cable assembly With 12x cable OEM/ODM orders are welcome

Cable type: SAS Manufacturer: Topconn Product name: 4x external infiniband mini SAS cable assembly Product type: data transfer cable OEM/ODM orders are welcome

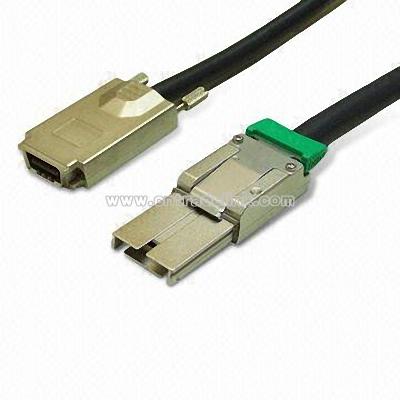

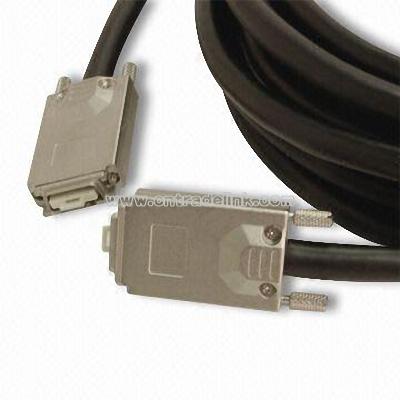

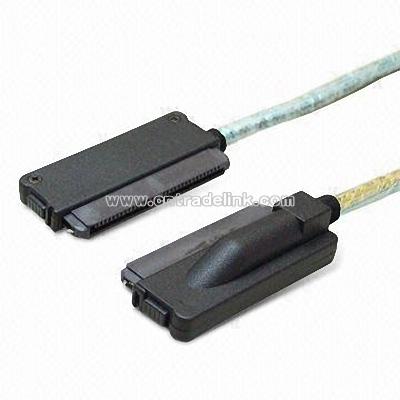

Infiniband screw type, mini SAS push type With 3.0Gbps data rate OEM/ODM orders are welcome

SAS cable 100% open and short with miss wire test Test condition: Conductance resistance: 5 ohms short open determinant:20k ohms Insulation resistance: 20M ohms minimum at 300V DC

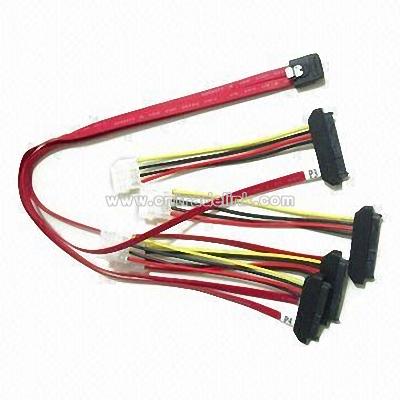

SAS is a point to point connectivity storage system architecture that has many advantages over its parallel SCSI predecessor It is designed to replace the SCSI interconnect system with a much smaller, more flexible serial designed Data speed can be 6Gbps Mini SAS series: Mini SAS controller to SAS 32P x 4 port to 4Px4port power Mini SAS 36P to SATA 7P x 4port with metal lock and plastic braid Mini SAS 36P to mini SAS 36P with metal lock SAS series: SAS 32P to 32P serials round skewclear pair flexible and small size SAS 32P controller to 32P x 4port to 4P x 4port power flat cable SAS 32P to 32P internal serials flat cable SAS 32P serials to SATA 7P x 4port round skewlear pair flexile and small size SAS 32P serials to SATA 7P x 4port SAS 32P to 32P cable serials skewclear with plastic braid SAS 32P to SATA 7P x 4port OEM/ODM are welcome

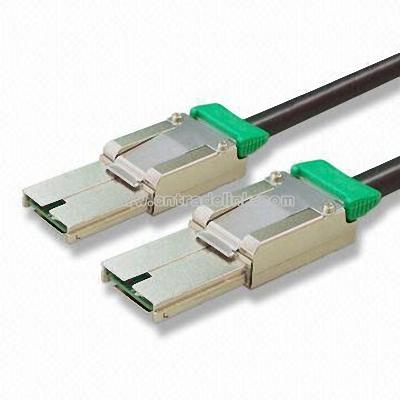

SAS cable assembly With PCIe x 4 to PCIe x 4 cable OEM/ODM orders are welcome

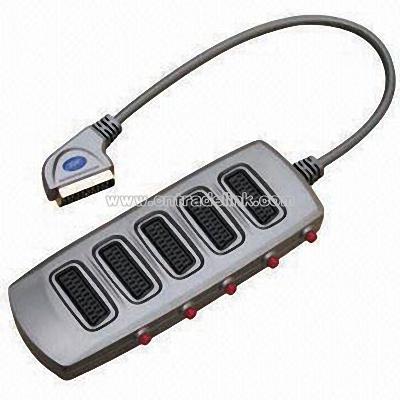

SCART plug to 5 SCART sockets With Five button switches 0.5m cable O.D: 8mm RoHS compliance available
