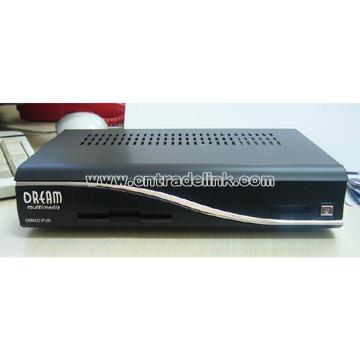

Powerful receiver for digital TV and Radio programs. Available at present: DM600 S for satellite receiving Tuner modules, Plug&Play Main features are a 250 MHz PowerPC (350 Mips) Linux OP, the Dreambox DM600 supports the Standard Linux API (DirectFB, Linux-FB, LIRC, ...), ENIGMA1 2, 5" harddisk support 10/100MBit compatible Ethernet Interface DSL communication port Technical datas - 250 MHz PowerPC Processor (350 Mips) - Linux Operating System - 1 x Smartcard-Reader - MPEG2 Hardware decoding - Common available NIMs (DVB-S, DVB-C, DVB-T) - Tuner modules, Plug&Play - V. 24/RS232 Interface - 10/100Mbit compatible Ethernet Interface - 2 LED status - 32 MByte Flash, 96 MByte Ram total - integrated IDE Interface - Support for internal HDD 2, 5" in any capacity - unlimited channel lists for TV/Radio - channel-change time < 1 second - full automatic service scan - supports directly bouquet-lists - supports EPG (electronic program guide) - supports own videotext - supports multiple LNB-Switching control (DiSEqC) - fully adaptable OSD in many languages and skin-support - S/PDIF Interface for digital bit stream out (AC-3) - 1 x Scart-interfaces - S-Video connector - analoge modem DreamBox DM600 technical data DBS-Tuner: Frequency Range 950...2150 MHz Signal Level - 65 dBm...- 25 dBm Signal-to-Noise Level 12 dB max. DBS-Tuner Input Connector F-Type female Input Impedance 75 Ohm AFC +/- 3 MHz Demodulation Shaped QPSK FEC Viterbi and Reed-Solomon Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8 Roll-off Factor 35 % Demultiplexing according ISO 13818-1 Video decoder: Video Compression MPEG-2 and MPEG-1 compatible Video Standard PAL G/ 25 Hz Video Formats 4: 3 / 16: 9 Letterbox for 4: 3 TV-Device Audio decoder: Audiokompression MPEG-1 & MPEG-2 Layer I and II Audio Mode Dual (main/sub), Stereo Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz Output analog: Output Level L/R 0, 5 Vss on 600 Ohm THD > 60 dB (1 kHz) Crosstalk < -65 dB Output digital: Output Level 0, 5 Vss on 75 Ohm Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz S/PDIF-Output optical (AC3) Video parameter: Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 Standard TV-Scart: Output: FBAS, RGB, S-Video Serielle Interface RS 232: Typ RS232 bidirectional Bitrate 115, 2 kBit/s max. Plug Connector SUB-D-9 Function: Update of Firmware Ethernet: 10/100 MBit compatible interface Function: Update of Firmware IDE Interface: Intern for connect 2, 5" HDD LNB Power and polarisation: LNB Current 500mA max.; Short-circuit-protected LNB Voltage vertical < 14V no load, > 11, 5V at 400mA LNB Voltage horizontal < 20V no load, > 17, 3V at 400mA LNB shut-off at Standby-Mode Count of active satellite position: DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION DiSEqC - Rotor Control Power consumption: < 15W / 12V Input voltage: DC12V +/- 15% Extern power supply: Input: 110-240V AC / 50-60Hz / 0, 6A Output: 12V = / 2A Physical specification: Ambient Temperature +15oC...+35oC Humidity < 80% Size (W x D x H): 195 mm x 130 mm x 40 mm Weight: 0, 6 kg

Powerful receiver for digital TV and Radio programs. available at present: DM600 S for satellite receiving Tuner modules, Plug&Play Main features are a 250 MHz PowerPC (350 Mips) Linux OP, the Dreambox DM600 supports the Standard Linux API (DirectFB, Linux-FB, LIRC, ... ), ENIGMA1 2,5" harddisk support 10/100MBit compatible Ethernet Interface DSL communication port Technical datas - 250 MHz PowerPC Processor (350 Mips) - Linux Operating System - 1 x Smartcard-Reader - MPEG2 Hardware decoding - Common available NIMs (DVB-S) - Tuner modules, Plug&Play - V.24/RS232 Interface - 10/100Mbit compatible Ethernet Interface - 2 LED status - 32 MByte Flash, 96 MByte Ram total - integrated IDE Interface - Support for internal HDD 2,5" in any capacity - unlimited channel lists for TV/Radio - channel-change time < 1 second - full automatic service scan - supports directly bouquet-lists - supports EPG (electronic program guide) - supports own videotext - supports multiple LNB-Switching control (DiSEqC) - fully adaptable OSD in many languages and skin-support - S/PDIF Interface for digital bit stream out (AC-3) - 1 x Scart-interfaces - S-Video connector - analoge modem DreamBox DM600 technical data DBS-Tuner: Frequency Range 950 ....... 2150 MHz Signal Level - 65 dBm ....... - 25 dBm Signal-to-Noise Level 12 dB max. DBS-Tuner Input Connector F-Type female Input Impedance 75 Ohm AFC +/- 3 MHz Demodulation Shaped QPSK FEC Viterbi and Reed-Solomon Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8 Roll-off Factor 35 % Demultiplexing according ISO 13818-1 Video decoder: Video Compression MPEG-2 and MPEG-1 compatible Video Standard PAL G/ 25 Hz Video Formats 4:3 / 16:9 Letterbox for 4:3 TV-Device Audio decoder: Audiokompression MPEG-1 & MPEG-2 Layer I and II Audio Mode Dual (main/sub), Stereo Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz Output analog: Output Level L/R 0,5 Vss on 600 Ohm THD > 60 dB (1 kHz) Crosstalk < -65 dB Output digital: Output Level 0,5 Vss on 75 Ohm Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz S/PDIF-Output optical (AC3) Video parameter: Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 Standard TV-Scart: Output: FBAS, RGB, S-Video Serielle Interface RS 232: Typ RS232 bidirectional Bitrate 115,2 kBit/s max. Plug Connector SUB-D-9 Function: Update of Firmware Ethernet: 10/100 MBit compatible interface Function: Update of Firmware IDE Interface: Intern for connect 2,5" HDD LNB Power and polarisation: LNB Current 500mA max. ; short-circuit-protected LNB Voltage vertical < 14V no load, > 11,5V at 400mA LNB Voltage horizontal < 20V no load, > 17,3V at 400mA LNB shut-off at Standby-Mode Count of active satellite position: DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION DiSEqC - Rotor Control Power consumption: < 15W / 12V Input voltage: DC12V +/- 15% Extern power supply: Input: 110-240V AC / 50-60Hz / 0,6A Output: 12V = / 2A Physical specification: Ambient Temperature +15oC...+35oC Humidity < 80% Size (W x D x H): 195 mm x 130 mm x 40 mm Weight: 0,6 kg

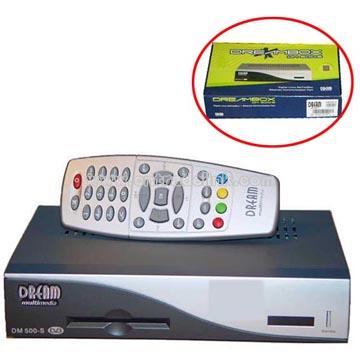

Attention: This receiver can share card with IP, record with your PC and so on, we can offer the technology of how to build a share server! Powerful recevier for digital TV and Radio programs. Mail features are a 250MHz IBM PowerPC(350Mips). Linux OP, the unit supports the Standard Linux API(DirectFB, Linux-FB, LIRC, ...) The DM500 is the smallest digital Linux SetTopBox based receiver with card sharing function. - 250 MHz IBM PowerPC Processor (350 Mips) - Linux Operating System - 1 x Smartcard-Reader - MPEG2 Hardware decoding - Common available NIMs (DVB-S, DVB-C) - V. 24/RS232 Interface - 2 LED status - Unlimited channel lists for TV/Radio - Channel-change time < 1 second - Full automatic service scan - Supports directly bouquet-lists (indirect unlimited) - Supports EPG (electronic program guide) - Supports multiple LNB-Switching control (supports DiSEqC) - Fully adaptable OSD in many languages (skin-support) - SPDI/F Interface for digital bit stream out (AC-3 / DTS) - 1 x Scart-interfaces (fully controlled by software)

1)250 MHz IBM PowerPC Processor (350 Mips) 2)Linux Operating System 3)1 x Smartcard-Reader 4)MPEG2 Hardware decoding 5)100Mbit full duplex Ethernet Interface 6)2 LED status 7)unlimited channel lists for TV/Radio 8)channel-change time < 1 second 9)full automatic service scan 10)supports directly bouquet-lists (indirect unlimited) 11)supports EPG (electronic program guide) 12)supports multiple LNB-Switching control (supports DiSEqC) 13)fully adaptable OSD in many languages (skin-support) 14)SPDI/F Interface for digital bit stream out (AC-3 / DTS) 15)1 x Scart-interfaces (fully controlled by software)

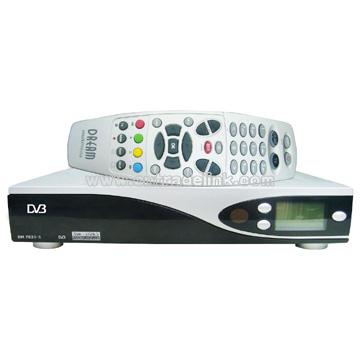

Powerful receiver for digital TV and Radio programs. Main features are a 250 MHz PowerPC (350 Mips), Linux OP and the dreambox DM7020 supports standard Linux API (DirectFB, Linux-FB, LIRC, ...) 10/100MBit compatible Ethernet Interface DSL communication port All devices of series DM7020 have an embedded analoge modem Technical datas - 250 MHz PowerPC Processor(350 Mips) - Linux open source (most parts under the terms of GPL) - Supports Linux Standard API (Direct-FB, Linux-FB, LIRC) - 1 x DVB Common-Interface Slot - 2 x Smartcard-Reader - Integrated Compact Flash Interface Slot - MPEG2 Hardware decoding (fully DVB compliant) - Common NIM DVB-S - 10/100 MBit compatible Ethernet Interface - modem - USB Port - 12V switch cinch - V. 24/RS232 Interface - Big-size LC-Display - 32 MByte Flash - 96 MByte RAM - integrated IDE UDMA66 Interface - Support for internal HDD in any capacity - unlimited channel lists for TV/Radio - channel-change time < 1 second - full automatic service scan - supports directly bouquet-lists - supports EPG (electronic program guide)' - supports own videotext - supports multiple LNB-Switching control (supports DiSEqC) - fully adaptable OSD in many languages and skin-support - S/PDIF Interface for digital bit stream out (AC-3) - 2 x Scart-interfaces - RF modulator - Audio/Video cinch out - MINI-DIN connector for extern IR (send) DreamBox DM7020 technical data DBS-Tuner: Frequency Range 950.2150 MHz Signal Level - 65 dBm. - 25 dBm Signal-to-Noise Level 12 dB max. DBS-Tuner Input Connector F-Type female Input Impedance 75 Ohm AFC +/- 3 MHz Demodulation Shaped QPSK FEC Viterbi and Reed-Solomon Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8 Roll-off Factor 35 % Demultiplexing according ISO 13818-1 Common-Interface: Common-Interface Power Consumption max. 0, 3A/5V Video decoder: Video Compression MPEG-2 and MPEG-1 compatible Video Standard PAL G/ 25 Hz Video Formats 4: 3 / 16: 9 Letterbox for 4: 3 TV-Device Audio decoder: Audiokompression MPEG-1 &mp; MPEG-2 Layer I and II Audio Mode Dual (main/sub), Stereo Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz Output analog: Output Level L/R 0, 5 Vss on 600 Ohm THD > 60 dB (1 kHz) Crosstalk < -65 dB Output digital: Output Level 0, 5 Vss on 75 Ohm Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz S/PDIF-Output optical (AC3) Video parameter: Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 Standard> TV-Scart: Output: FBAS, RGB, S-Video over OSD selectable VCR-Scart: FBAS Serielle Interface RS 232: Typ RS232 bidirectional Bitrate 115, 2 kBit/s max. Plug Connector SUB-D-9 Function: Update of Firmware Ethernet: 10/100 MBit compatible interface Function Update of Firmware USB: USB 1.2 connector Mini DIN: I2C for steering of external devices IR funktion Pins: 1 5V 2 SDA (I2C-Kanal 2) 3 SCL 4 3, 3V 7 GND 8 IR-Output 9 GND UDMA66 IDE Interface: Intern for connect HDD Compact Flash - Reader LNB power and polarisation: LNB Current 500mA max.; Short-circuit-protected LNB Voltage vertical < 14V no load, > 11, 5V at 400mA LNB Voltage horizontal < 20V no load, > 17, 3V at 400mA LNB shut-off at Standby-Mode Count of active satellite position: DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION DiSEqC - Rotor Control Power consumption: < 20W (in operation, horizontal polarization / 400mA LNB current) < 11W (in operation, no LNB) < 4W (Deep-Standby-Mode) Input voltage: 230V / 50 Hz alternating current +/- 15% Physical specification: Ambient Temperature +15 oC...+35 oC Humidity < 80% Size (W x D x H): 374 mm x 230 mm x 75 mm Weight: 2 kg without HDD

Fully DVB-S/MPEG2 compliant M3328chipset 900 channels memory space 256 colors on screen Display OSD Multi-language Audio PAL/NTSC/AUTO SELECT Greek, Polsk, Arabic, Portuguese, Russian, Indonesian ) Picture in Graphics (PIG) Support RF Modulator for TV standard (PAL B/G/D/T/K) Favorite sort Software upgrade through RS-232 port, Receiver/PC to receiver DISEOC1.0, Voltage (14/18V), Tone (22K Hz) and 0/12V LNB Switching Support Search mode free / free + CAS and Network (NIT on or off)

USB 2.0 Host Support(MP3 Player & JPEG Viewer) MPEG-II Digital & Fully DVB Compliant; Blind Scan Multi-LNB Controlled by DiSEqC Control Version 1.0, 1.2 and USALS Multi-Satellite Search On Screen Display with 65535 Color Full Resolution Favourite Channel Groups Powerful Channel Control by Favorites, Lock, Skip, Move and Delete Channel Sorting by Alphabet, Transponder and CAS Multi-language Supported (OSD & Menu) Closed Caption Support Maximum 10, 000 channels Programmable; Multi-picture Display Parental Lock / Receiver Lock CVBS Video & Audio Output via RCA Component Y/Pb/Pr Output via RCA; S-VHS Video Output Optical & Coaxial Output for Digital Audio Software & Channel Data Upgrade via RS-232 & USB Software & Channel Database Upgrade via RS-232 Universal Remote Control Size (W x H x D) 260mm X 55mm X 210mm Weight (Net) 1.2 Kg

USB 2.0 Host Slot for S/W Downloading USB 2.0 Host Slot [Front Door Inside] Fully MPEG-2 & DVB-S Supported: NEC EMMA 2SL MPEG Chip-Sets NEC EMMA 2SL chip-set 284MIPS @ 186MHz 32Mb Flash ROM for Fast Channel Changing S-Video Output Component output [Y, Pb, Pr] Sharp NIM Tuner Brilliant On Screen Graphics Small Picture in Graphic with Zoom Multi Timer Function 4: 3, 16: 9: Pan & Scan Full Screen and Letter Box Digital Audio Output Parental Lock Function using Master PIN Code 6000 Channel Programmable 100 Satellite Programmable Background Graphic Display for Radio Program Channels Easy-to-use User Interface Various Aspect Ratio with 4: 3, Letter Box, Full Screen & 16: 9 Highly Speedy Channel Changing Time: Less than 1 Sec. Channel Sorting by FTA, CAS, Satellite, Alphabetic Order & Network 8 Favorite Channel List Group Programmable Highly Speedy Channel Changing Time: Less than 1 Sec. Close Caption Supported PIG [Picture-In- Graphic] Available Muti-Picture Flame Screen Available 14, 9, 16 Flame Screen & Thumbnail View Selectable Zoom In-Out Function for Watching Screen Automatic NTSC / PAL Detection and Simple Video Converter [NTSC <->PAL] In On-Screen Display Menu Useful RCU Key-Functions for Channel Find, Edit and Signal Strength Display This wonderful fta satellite receiver features a 7 day EPG(Electronic Program Guide) and the ability to zoom in and out of a picture. it will give you the option to install updates through the USB port, never connecting your receiver to a computer again. The SonicView 4000 has Revolutionary features like Zooming in and out of a picture and a display view of up to 9 different channels on a single screen.

- MPEG-2 Digital and Fully DVB-S Compliant - SCPC/MCPC Receivable from C/KU Band Satellite - User Friendly OSD Menu with Full Function - Installation by Easy Setup Guide - 100 Satellites, 6000 Channels and 5000 transponders - Brilliant On Screen Graphic - Small Picture in Graphic and Zoom Function - 8 Favorite Groups and Parent Lock Function - EPG, including 4 days data fast download and timer - Supports DiSEqC 1.0/1.2/ 1.3(USALS) and 22KHz Tone - Fast Channel Switching - 256 Color Graphic User Interface - High Sensitivity QPSK Tuner and Demodulator - Multi Timer Function and Favor - Network Search and Easy Tunning - Multi Languages: English/German/French/Italian/Spanish/Arabic/Turkish/Persian/Russian - Support 20 Audio PID (Language) - Support 20 Audio PID(Language) - RS232 Port for Additional Information Service and Upgrading Software - Multi Pictures Selection, 4/9/10/12/13/16 - PLL RF Modulator Ch3/Ch4 with NTSC M 14-83 - 4: 3, 16: 9. Letter Box and Pan & Scan - LNB Power Overload Protection - Universal Remote Controller(TV/VCR/DVD/STB) - VFD Vacuum Fluorescent Display - Components output: Y, Pb, Pr. - Digital Audio output(S/PDIF) - Blind Scan

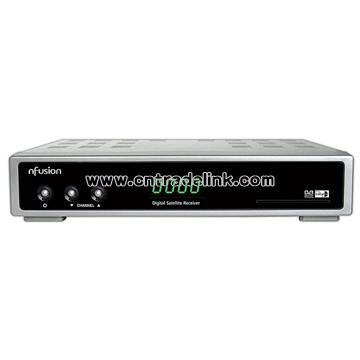

NFusion is the new generation of FTA receivers, offering Internet based updating technology. Full wireless capabilities will allow you to get the NFusion Nova integrated seamlessly into your wireless networks, therefore allowing this NFusion FTA Receiver to be a complete entertainment solution! MPEG-2 Digital and Full DVB Ethernet Port for Networking Ultra-Fast Advanced EPG Simple Satellite Scan Fast Multi-Satellite Search Blind Search (Power Scan) TP Ch Auto Update Extended EPG and Program Reservation through EPG (Timer Function) Channel Control by Delete, Skip, Lock, Move and Favorites Channel Sorting by Alphabet, Transponder, and CAS Tele-Text Support (OSD and VBI Insertion) Last Channel Memory Functions Xcrypt Software Support OSD: English, Spanish, Portuguese, French, German, Turkish, Arabic, Farsi Plasma Friendly (Screensaver to eliminate burn-in on Plasma TV's) Parental Lock / Installation Lock / Receiver Lock Zoom-In Function RGB Component Video Output RCA Composite Video Output S-VIDEO Output SPDIF Dolby Digital 5.1 Surround DiSEqC Control Versions 1.0, 1.2 and USALS RS-232 (Serial) Port for Programming

Key Specifications/Special Features: Fully DVB-S DVB-S2 compliant Supports two common interface: IRDE, through access (security program) MPEG-4 MEPG-2 HD/SD decoding (MP at HL/ML) Dolby AC-3 or MPEG-1 audio decoding Down-mixes 5.1 AC3 to two channels encoded with dolby prologic surround YPbPr output: 1, 080i/720 and 576p VGA output: supports 1, 080i/720 and 576p CVBS and S-Video output: PAL/NTSC/SECAM HD video output: DVI or DVI-plus (1, 080i/720 and 576p) Conversion between SD and HD programs Teletext (VBI and OSD output) Subtitle (OSD output) Aspect ratio: 4: 3/16: 9 3, 000 editable channels LNB switching by 13/18V, 0/12V and 0/22kHz Dolby 5.1 channel or PCM digital audio output Electronic program guide (EPG) Parental guidance Software upgrade through RS232 32 bits true color on screen display (OSD)

MPEG-1&2/DVB compliant Video and CD quality sound . User-friendly Multi-language OSD with 256-color . Easy installation for multiple satellites . Positioning by DiSEqC 1.2 and USALS . Powerful EPG with multiple-day information . Zoom-In function . Auto resolution conversion for NTSC/PAL . Variable TV-screen format ratio conversion(16: 9/4: 3) . Max. 6000 channels programmable (3000 channels for TV& Radio each) . Powerful and easy channel edit function (TV/Radio/All/Favorite) . SCPC/MCPC receivable from C/KU-hand satellites . Last channel memory whenever operation off . Multi event timer function (daily/weekly) . Teletext (OSD/VBI Insertion) and subtitle supported . Parental lock . PC Editor for editing and upgrading channel lists . 4 digit and 7 segment front panel display . Software upgrade via RS-232C from PC(PC to STB) or STB (STB to STB) . OTA Software upgrade via ASTRA satellite (Optional) . AC Power switch (Optional) . S/PDIF for Dolby Digital Bitstream Out with Coaxial and/or Optical(Optional) . 0/12V ( Alternative of S/PDIF Coaxial or 0/12V) . S-VHS Video output via Mini DIN (Optional

Relook 200S Improved Features Powerful IBM Power PC implemented. Faster CPU performance: 350MIPS(252MHz) Dolby AC-3 (SPDIF output for High-Fi Audio) Faster channel change time between different TPs. (less then 1sec) Improved tuner sensitivity for high quality and better reception. Additional OSD language available. User friendly larger font size. Faster response between Remote Control Unit via STB.

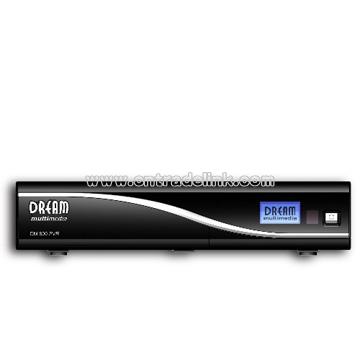

300 MHz MIPS Processor Linux Operating System MPEG2 / H. 264 Hardware decoding (DVB compliant) DVI Tuner Module, Plug&Play High contrast display (OLED) 64 MByte Flash, 256 MByte RAM SATA For use either as internal HDD 2, 5" or eSATA 10/100Mbit Ethernet Interface 1 x Smartcard-Reader (Dreamcrypt) 2 x USB2.0 V. 24/RS232 Scart S/PDIF for digital bit stream out (optical) Unlimited channel lists for TV/Radio Channel-change time < 1 second Supports EPG (electronic program guide) Full automatic service scan Supports directly bouquet-lists Supports videotext decoding Supports multiple LNB-Switching control (DiSEqC) OSD in many languages Skin-support External 12V power supply

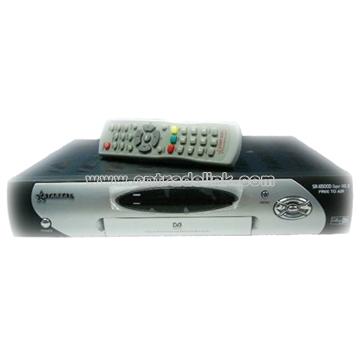

Integrated with powerful STi5518 single chip processor, starsat1500 enables you to enjoy free channels with easy-to-operate menu system. Moreover, it has 4000 channels storing and fast channel switching capability, which makes this model no doubt an ideal choice to experience digital life. Features: 1) Brilliant On Screen Graphic 2) MPEG-2 & Fully DVB Compliant 3) MPEG-2 Video ( MP@ML), MPEG-1 Audio Layer1, Layer 2 4) LNB Controlling Logic (0/22KHz Tone) 5) SCPS/MCPC Receivable from C/Ku-Band Satellites 6) Digital Tuner with Loop-through 7) Wide Symbol Rate 1- 45 Mbps & Frequency Input 950-2150 MHz 8) DiSEqC1.2 Supported 9) 2 SCART for TV, VCR 10) User friendly OSD Menu with full function 11) 256 Colors Graphic User Interface 12) Multi-language Menu 13) 4-digit 7-segment LED Display 14) Variable Aspect Ratio (4: 3, 16: 9). 15) EPG (Electronic Program Guide) for On-screen Channel Information Small Screen Picture on EPG 16) Installation by Easy Setup Guide 17) Capacity for Storing Multi Channel ( FTA, 4000 Channels, 1500 transponders) 18) 7 Favorite groups and Parental Lock Function 19) Pause and release picture 20) RS232C port for Upgrade 21) Auto DiSEqC search

- MPEG-2 Digital and Fully DVB-S Compliant - SCPC/MCPC Receivable from C/KU Band Satellite - User Friendly OSD Menu with Full Function - Installation by Easy Setup Guide - 100 Satellites, 6000 Channels and 5000 transponders - Brilliant On Screen Graphic - Small Picture in Graphic and Zoom Function - 8 Favorite Groups and Parent Lock Function - EPG, including 4 days data fast download and timer - Supports DiSEqC 1.0/1.2/ 1.3(USALS) and 22KHz Tone - Fast Channel Switching Outstanding Value: - 256 Color Graphic User Interface - High Sensitivity QPSK Tuner and Demodulator - Multi Timer Function and Favor - Network Search and Easy Tunning - Multi Languages: English/German/French/Italian/Spanish/Arabic/Turkish/Persian/Russian - Support 20 Audio PID (Language) - Support 20 Audio PID(Language) - RS232 Port for Additional Information Service and Upgrading Software - Multi Pictures Selection, 4/9/10/12/13/16 - PLL RF Modulator CH3/CH4 with NTSC M 14-83 - 4: 3, 16: 9. Letter Box and Pan & Scan - LNB Power Overload Protection - Universal Remote Controller(TV/VCR/DVD/STB) - VFD Vacuum Fluorescent Display - Components output: Y, Pb, Pr. - Digital Audio output(S/PDIF) - Blind Scan Optional Features: - S-Video Output - Zoom and Games - PIP(Picture in picture) - USB 2.0 SUPPORTED - Download Software/channel data/SatCODX Formal File - View JPEG/Play MP3/MPEG2 Playe - Black and Silver

Standard Features: - MPEG-2 Digital and Fully DVB-S Compliant - SCPC/MCPC Receivable from C/KU Band Satellite - User Friendly OSD Menu with Full Function - Installation by Easy Setup Guide - 100 Satellites, 6000 Channels and 5000 transponders - Brilliant On Screen Graphic - Small Picture in Graphic and Zoom Function - 8 Favorite Groups and Parent Lock Function - EPG, including 4 days data fast download and timer - Supports DiSEqC 1.0/1.2/ 1.3(USALS) and 22KHz Tone - Fast Channel Switching Outstanding Value: - 256 Color Graphic User Interface - High Sensitivity QPSK Tuner and Demodulator - Multi Timer Function and Favor - Network Search and Easy Tunning - Multi Languages: English/German/French/Italian/Spanish/Arabic/Turkish/Persian/Russian - Support 20 Audio PID (Language) - Support 20 Audio PID(Language) - RS232 Port for Additional Information Service and Upgrading Software - Multi Pictures Selection, 4/9/10/12/13/16 - PLL RF Modulator CH3/CH4 with NTSC M 14-83 - 4: 3, 16: 9. Letter Box and Pan & Scan - LNB Power Overload Protection - Universal Remote Controller(TV/VCR/DVD/STB) - VFD Vacuum Fluorescent Display - Components output: Y, Pb, Pr. - Digital Audio output(S/PDIF) - Blind Scan Optional Features: - S-Video Output - Zoom and Games - PIP(Picture in picture) - USB 2.0 SUPPORTED - PVR Ready With Time Shift - Download Software/channel data/SatCODX Formal File - View JPEG/Play MP3/MPEG2 Player - Black and Silver

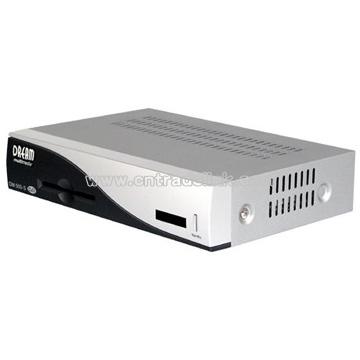

Specifications: The DM500S is the smallest Linux satellite TV receiver, with 1 x Smartcard-Reader. 250 MHz IBM PowerPC Processor (350 Mips) 2 LED status Linux Operating System Full automatic service scan Supports directly bouquet-lists (indirect unlimited) Supports multiple LNB-Switching control (supports DiSEqC) 1 x Smartcard-Reader Unlimited channel lists for TV/Radio SPDI/F nterface for digital bit stream out (AC-3 / DTS) MPEG2 Hardware decoding Channel-change time < 1 second Fully adaptable OSD in many languages (skin-support) 100Mbit full duplex Ethernet Interface Supports EPG (electronic program guide) 1 x Scart-interfaces (fully controlled by software) Video decoder: Video Compression MPEG-2 and MPEG-1 compatible Video Standard PAL and NTSC Video Formats 4: 3 / 16: 9 Footage 16: 9, automatic assimilation for 16: 9 TV-Device (over Scart) Letterbox precolating for 4: 3 TV-Device Audio decoder: Audiokompression MPEG-1 & MPEG-2 Layer I and II Audio Mode Dual (main/sub), Stereo Frequency: 32 KHz, 44.1 KHz, 48 KHz, 16 KHz, 22.05 KHz, 24 KHz Video parameter: Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 Standard TV-Scart: Output: FBAS, RGB, S-VHS over OSD selectable DBS-Tuner: Frequency Range 950...2150 MHz Signal Level - 65 dBm...- 25 dBm Signal-to-Noise Level 12 dB max. DBS-Tuner Input Connector F-Type female Input Impedance 75 Ohm AFC +/- 3 MHz Demodulation Shaped QPSK Input Symbol rate 2...45 Mbaud/s, SCPC / MCPC FEC Viterbi and Reed-Solomon Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8, automatic assimilation Roll-off Factor 35 % Demultiplexing according ISO 13818-1 Ethernet: 100 MBit compatible, bi-direktional interface Function Update of Firmware and Preprogramming LNB Power and polarisation: LNB Current 500mA max.; Short-circuit-proof LNB Voltage vertical < 14V without load, > 11, 5V at 400mA LNB Voltage horizontal < 20V without load, > 17, 3V at 400mA LNB shut-off at Standby-Mode Count of active satellite position: DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION DiSEqC - Rotor Control Output digital: Output Level 0, 5 Vss on 75 Ohm Sampled Data Filtering 32 KHz, 44.1 KHz, 48 KHz S/PDIF-Output optical (AC3) Output analog: Output Level L/R 0, 5 Vss on 600 Ohm THD > 60 dB (1 KHz) Crosstalk < -65 dB Serielle Interface RS 232: Typ RS232 bidirectional Bit rate 115, 2 kBit/s max. Plug Connector SUB-D-9 Function Update of Firmware and Preprogramming Power consumption: < 10W / 12V Input voltage: DC12V, alternating acurrent +/- 15% Extern power supply: Input: 110-240V AC / 50-60Hz / 0, 6A Output: 12V = / 1A

Complaint MPEG 2 /MPEG 4 / H. 264 2 tuner combo (DVB Satellite & DVB Terrestrial Complaint DVB S/S2 & DVB T standard Output resolution 1080, 720, 576 1 HDMI output VF-Display DiSEqC 1.0 1.1.1.2 & USALS compatible 16 favorite channel groups Multilingual GUI (OSD & Menu): English, Spanish, Portuguese, French, German, Italian, Turkish, Arabic; Persian, Russian Teletext & Subtitle by OSD and VBI Last channel memory Total 10.000 channel programmable Digital Dolby output (S/PDIF) S-Video output Component output (YPbPr) Various games Software & channel database upgrade via RS232 Zoom in and Freeze function Multipicture display High speed software upgrade via USB 2.0 MP3 play and JPEG view 2 CI Slots 1 Smartcard Slot Weight (kg) 3 Size (WxHxD in mm) 335x58.5x247

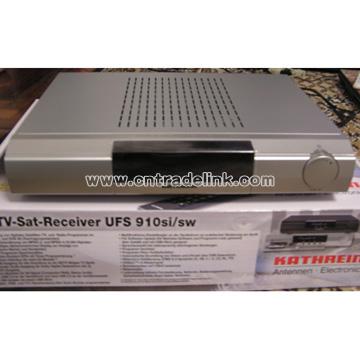

Reception of digital satellite TV and radio channels in the DVB-S and DVB-S2 transmission standards Video decoding of MPEG-2 and MPEG-4/H. 264 signals 16-digit alphanumeric display to show the channel names and programme information 4, 000 channel memory positions Kathrein-easy-use EPG with timer programming Common Interface for two CA modules HDMI output for connection to an HDTV ready TV set HDCP copy protection Optical audio output for Dolby Digital data stream (AC 3) YPbPr output Cinch sockets for AV signal (composite colour picture, stereo-audio) One USB 2.0 port on the front panel and two USB 2.0 ports on the back panel for software updates with a USB stick Multifunction setting device on the front panel Composite colour picture, RGB and Y/C signal output programmable on SCART socket Suitable for software updates (operational software and channel list separately) via satellite or USB stick (not supplied) Language selection for programmes broadcast in several languages Channel search Channel position sort function Automatic date and time setting via DVB data stream On-screen display (OSD) in 8 languages (D, GB, F, I, E, CZ, NL, TR) DiSEqCTM 1.0 control signal and SCR one-cable system control signals (as of first quarter 2007) LINUX based operating system Mains switch Comes with: Remote control, batteries, manual, safety notes, SCART cable & power cable
