Product Name: Crystal Resonator
Item No: 1110723388
Description:
SMD type tuning fork
Standard frequency: 32.768kHz, 75.000kHz, 76.8kHz
Load capacitance: 12.5pF std 6pF available
Insulation resistance: more than 500M ohms
Product Name: Crystal Resonator
Item No: 1110713087
Description:
3.2 x 2.5mm SMD crystal resonator with frequency 12.000MHz to 40.000MHz
Standard frequency: 12, 13, 16, and 26MHz
Application: Bluetooth handsfree kits and Bluetooth printers
Frequency tolerance: ±10ppm
Stability: ±10ppm
Load capacitance: 9pF, 10pF, and 12pF
Motional resistance: 60 ohms maximum
Operating temperature: -40 to 85°C
RoHS compliance
Applicable with CSR solution

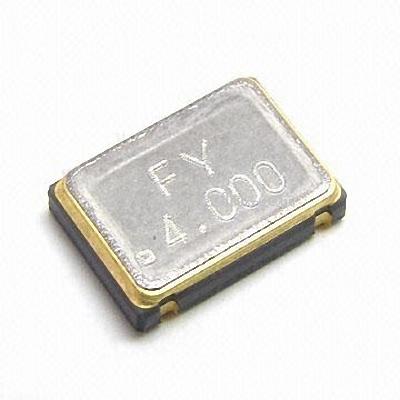

Product Name: SMD Crystal Resonator
Item No: 11106592863
Description:
Type FP: seam sealed ceramic
Surface mount package: 6 x 3.5mm
Nominal frequency: 8 to 50MHz
Mode of oscillation: fundamental
Load capacitance: 12 to 32pf or series
Frequency tolerance: ±30ppm at 25°C
Frequency stability (reference to 25°C): 30 to 50ppm
Working temperature range: -20 to 70°C
Aging: 5ppm/year
Circuit: measured by Saunders and associates 350A HP5100A network analyzer
Drive level: 100
Maximum series resonant resistance RR: 40Ω
Maximum shunt capacitance (C0): 7pF
Insulation resistance: more than 500MΩ at 100V DC
Storage temperature range: -55 to 125°C
Product Name: Crystal Resonator for Automotive Electronics
Item No: 111065833
Description:
Precise tolerance and large range of choice frequency
Stability over temperature offer fitted insulators
Frequency range: 6 to 150MHz
Frequency tolerance (at 25±2): ±5 to ±20ppm
Frequency stability over temperature: ±5 to ±30ppm
Operating temperature range: -10 to + 60°C
Storage temperature range: -40 to + 85°C
Aging: ±3 to ±5ppm/year
Load capacitance: 4pF (series)
Shunt capacitance: <7pF
Resistance (ESR):
6 to 10MHz: 70 to 50Ω
10 to 20MHz: 50 to 20Ω
20 to 36MHz: 20Ω (maximum)
3rd: 25 to 100MHz: 60Ω
5th: 50 TO 150MHz: 80Ω
Drive letol: 1 to 100μW
Applications: communications, pagers, long distance cordless phones, automotive electronics and telemetry
Product Name: SMD Type Crystal Resonator
Item No: 11106565762
Description:
Nominal frequency: 32.768kHz
Frequency tolerance: ±30ppm
Load capacitance: 6 to 12.5pF
Aging (first year): ±5ppm maximum
Operating temperature: -40 to 85 degree Celsius
Applications: cell phones, GPS receivers, telecommunication device, clock, audio, Bluetooth, MP3, MP4 player, computer, alarm, remote controller, GPS, navigation, receivers, and transmitters
Low profile and manufactured in epoxy
Packing: tape and reel
Product Name: Quartz Crystal Resonator
Item No: 11106554018
Description:
Wide frequency range: 1.8432 to 60.000MHz
Low cost
Industry standard
Tight tolerance with +/-10ppm available
Tight stability with +/-10ppm
Excellent aging
Product Name: Crystal Resonator
Item No: 1110654712
Description:
Type FP: seam sealed ceramic
Surface mount package: 2.5 x 3.2mm
Nominal frequency: 8 to 50MHz
Mode of oscillation: fundamental
Load capacitance: 12 to 32pf or series
Frequency tolerance: ±30ppm at 25?C
Frequency stability (reference to 25?C): 30 to 50ppm
Working temperature range: -20 to 70?C
Aging: 5ppm/year
Circuit: measured by Saunders and associates 350A HP5100A network analyzer
Drive level: 100
Maximum series resonant resistance RR: 40 ohms
Maximum shunt capacitance (C0): 7pF
Insulation resistance: more than 500m ohms at 100V DC
Storage temperature range: -55 to 125?C

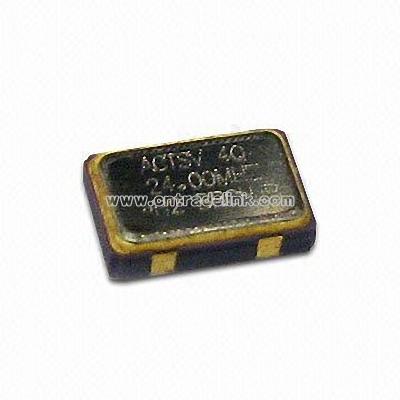

Product Name: SMD Crystal Resonator
Item No: 11106524852
Description:
Type FP: seam sealed ceramic
Surface mount package: 6 x 3.5mm
Nominal frequency: 8 to 50MHz
Mode of oscillation: fundamental
Load capacitance: 12 to 32pf or series
Frequency tolerance: ±30ppm at 25°C
Frequency stability (reference to 25°C): 30 to 50ppm
Working temperature range: -20 to 70°C
Aging: 5ppm/year
Circuit: measured by saunders and associates 350A HP5100A network analyzer
Drive level: 100
Maximum series resonant resistance RR: 40Ω
Maximum shunt capacitance: 7pF
Insulation resistance: more than 500MΩ at 100V DC
Storage temperature range: -55 to 125°C
Product Name: Crystal Resonator
Item No: 1110651489
Description:
Wide frequency range: 3.200 to 60.000MHz
Tight tolerance and stability
Low cost
SMD packages are available
Excellent aging

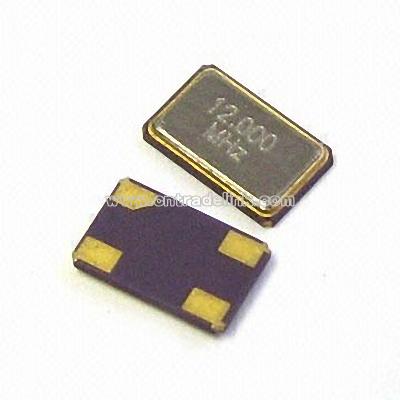

Product Name: SMD Crystal Resonator
Item No: 11106504010
Description:
5.0 x 3.2mm SMD crystal resonator with frequency 10,000 to 40,000MHz
Frequency tolerance: +/-10ppm to +/-50ppm
Frequency stability: +/-10ppm to +/-50ppm
Load capacitance: series, 8pF, 10pF, 12pF, and 16pF
Motional resistance: 80 ohms maximum (10 to 12MHz), 50 ohms maximum (12 to 40MHz)
Product Name: SMD Crystal Resonator
Item No: 11106492529
Description:
Standard frequency: 12, 13, 16, and 26MHz
Application: Bluetooth handsfree kits and Bluetooth printers
Frequency tolerance: ±10ppm
Stability: ±10ppm
Load capacitance: 9pF, 10pF and 12pF
Motional resistance: 60 ohms maximum
Operating temp: -40 to 85°C
RoHS compliance
Applicable with CSR solution
Product Name: Quartz Crystal Resonator
Item No: 11106482824
Description:
Tuning fork
Nominal frequency: 32kHz, 32.768kHz, 40kHz, 75kHz, 76.8kHz, and 100kHz
Frequency tolerance: +/-10ppm, +/-20ppm, and +/-30ppm
Load capacitance: 12.5pF std, 6pF available
Applications: time pieces
Product Name: Quartz Crystal Resonator
Item No: 1110640750
Description:
Wide frequency range: 3.200 to 54.000MHz
Low cost
Industry standard
AT cut crystal
Excellent aging
Tight tolerance and stability of +/-10ppm available
Product Name: Crystal Resonator
Item No: 11106383996
Description:
Type FP: seam sealed ceramic
Surface mount package: 6 x 3.5mm
Nominal frequency: 8 to 50MHz
Mode of oscillation: fundamental
Load capacitance: 12 to 32pf or series
Frequency tolerance: ±30ppm at 25?C
Frequency stability (reference to 25?C): 30 to 50ppm
Working temperature range: -20 to 70?C
Aging: 5ppm/year
Circuit: measured by Saunders and associates 350A HP5100A network analyzer
Drive level: 100
Maximum series resonant resistance RR: 40 ohms
Maximum shunt capacitance (C0): 7pF
Insulation resistance: more than 500M ohms at 100V DC
Storage temperature range: -55 to 125?C
Product Name: SMD Crystal Resonator
Item No: 11106371857
Description:
Type FP: seam sealed ceramic
Surface mount package: 6 x 3.5mm
Nominal frequency: 8 to 50MHz
Mode of oscillation: fundamental
Load capacitance: 12 to 32pf or series
Frequency tolerance: ±30ppm at 25°C
Frequency stability (reference to 25°C): 30 to 50ppm
Working temperature range: -20 to 70°C
Aging: 5ppm/year
Circuit: measured by Saunders and associates 350A HP5100A network analyzer
Drive level: 100
Maximum series resonant resistance RR: 40 Ohms
Maximum shunt capacitance (C0): 7pF
Insulation resistance: more than 500M Ohms at 100V DC
Storage temperature range: -55 to 125°C

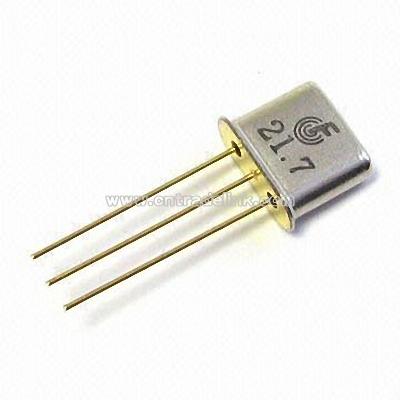

Product Name: Overtone Crystal Resonators
Item No: 11106352796
Description:
Suitable for TVs, computers, telephones, PBXs, DVDs and VCDs
With AT/BT cutting
Frequency range: 27 to 80 MHz
Frequency tolerance: +/-30ppm at 25 degree celsius
Operating temperature: -20 to 80 degree celsius
Temperature tolerance: +/- 50ppm
Load capacitance (CL): 10 to 50
Shunt capacitance: 7.0pF maximum
Drive level: 2mW
Ageing: +/-5ppm/year maximum at 25 degree celsius
Product Name: Crystal Resonator
Item No: 11106342080
Description:
Frequency range: 3.0 to 75.0MHz
Load capacitance: 20pf (standard), 8 to 50pf series is available
Frequency tolerance: ±30ppm (standard), ±5 to 100ppm is available
Temperature tolerance: ±30ppm (standard)
Aging (ppm/y): ±3ppm maximum

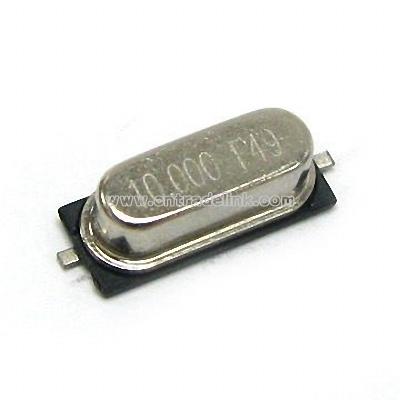

Product Name: Surface-mount Crystal
Item No: 11106325392
Description:
Model: S49S/S49SS/S49S+
Frequency range (fundamental): 3.2 to 30MHz
Frequency range (3rd overtone): 27 to 80MHz
Frequency tolerance:
At-cut: +/- 30ppm at 25 degree Celsius
Frequency stability:
At-cut: +/- 30ppm over -10 to 60 degree Celsius
Load capacitance: 8 to 32pF for series
Drive level: 10mW
Operating temperature range: -10 to 60 degree Celsius
Storage temperature range: -40 to 85 degree Celsius
Aging: less than +/- 3ppm/year (at 25 +/- 5 degree Celsius)

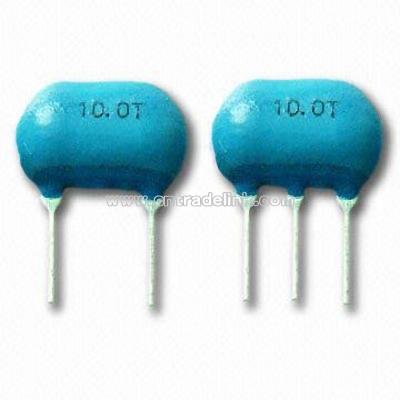

Product Name: Ceramic Resonators
Item No: 11106305756
Description:
Part number :
TZTA MG
TZTA MT
TZTA MX
Frequency range (MHz) :
1.80 to 6.00
6.01 to 13.00
13.01 to 50.00
Frequency accuracy (25 degrees C)(%) : ±0.5
Stability in temperature (-20 to +80 degree C)(%) : ±0.3
Operating temperature: -20 to +80 degrees C
Aging for ten years: ± 0.3
Part number :
TZTT 1.08 to 6.00MG
TZTT 6.01 to 13.00MT
TZTT 13.01 to 50.00MX
Frequency accuracy(25 degrees C): ±0.5%
Stability in temperature(-20 to +80 degrees C): ±0.3%
Aging for ten years: ±0.3%

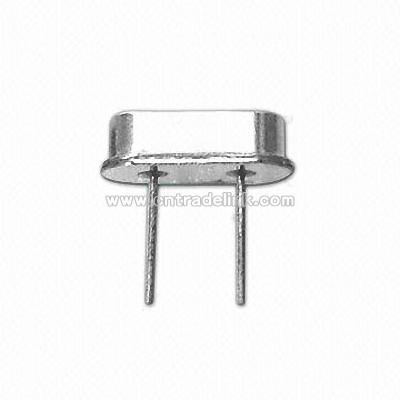

Product Name: Holder Type Dip Crystal
Item No: 11106242931
Description:
Model : AGX-T49S / T49SS / T49S+
Frequency range : 3.2 to 70MHz
Mode of oscillation : 3.2 to 30.0MHz: AT-cut fund. 27.0 to 70MHz: AT-cut 3rd Overtone
24.0 to 48.0MHz: BT-cut Fund.
Frequency tolerance : AT-cut: ±30ppm at 25 degrees C
BT-cut: ± 50ppm at 25 degrees C
Frequency stability : AT-cut: ± 30ppm over -10 to +60 degrees C
BT-cut: ± 100ppm over -10 to +60 degrees C
Shunt capacitance(C0): 7pF maximum
Load Capacitance(CL): 8pF to 32pF for series
Drive level : 1.0W
Operating temperature range : -10 to +60 degrees C
Storage temperature range : -40 to +85 degrees C
Aging : less than ± 3ppm/year (At 25±±5 degrees C)
